Home
>>
Pontiac
>>
2008
>>
Grand Prix V6-3.8L
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Multiple Junction Connector
>>
X100-X199
>>
X143
X143

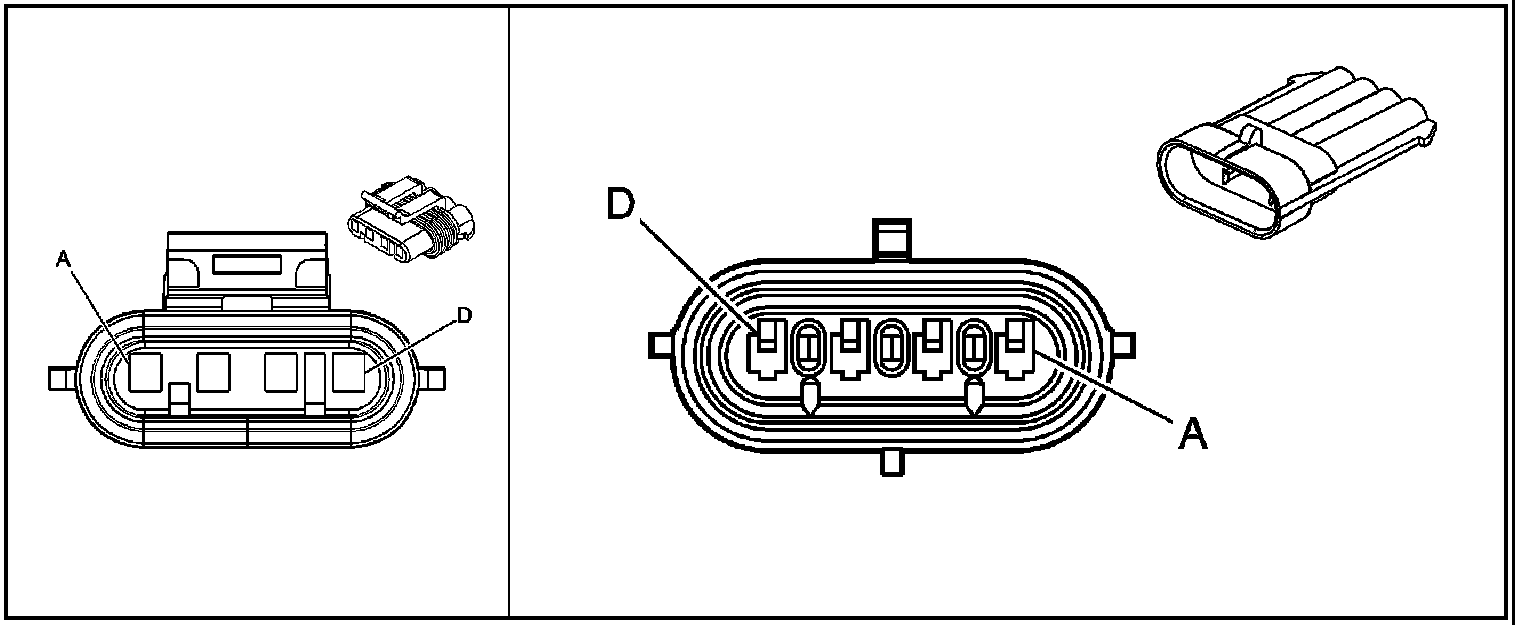

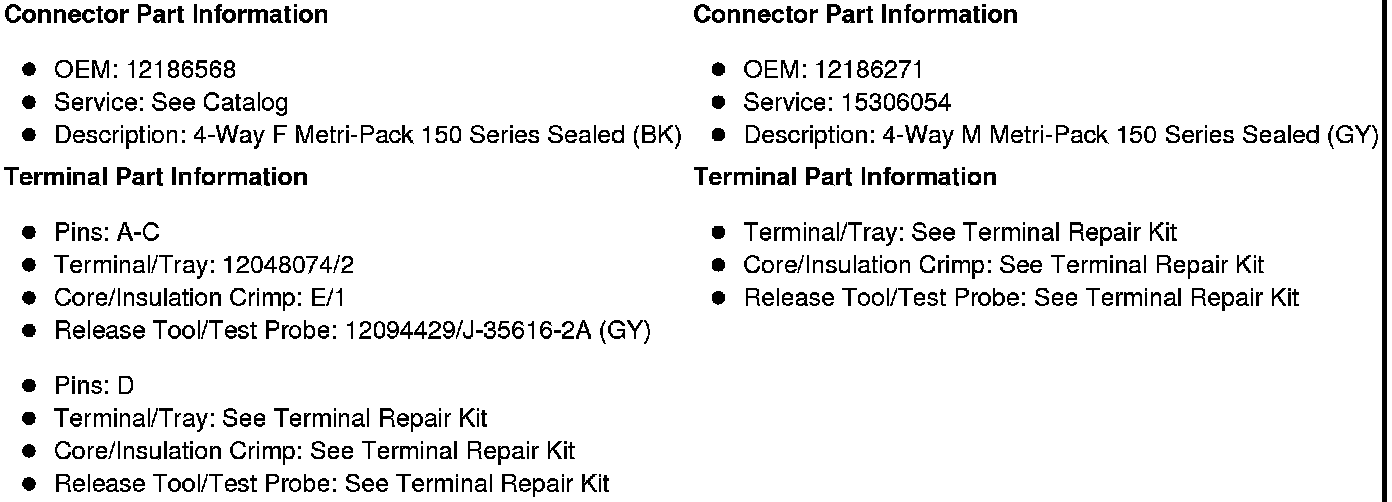

X143 Forward Lamp Harness to Fascia Jumper Harness
