Grand Prix V6-3.8L
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Multiple Junction Connector
>>
X100-X199
>>
X142
X142

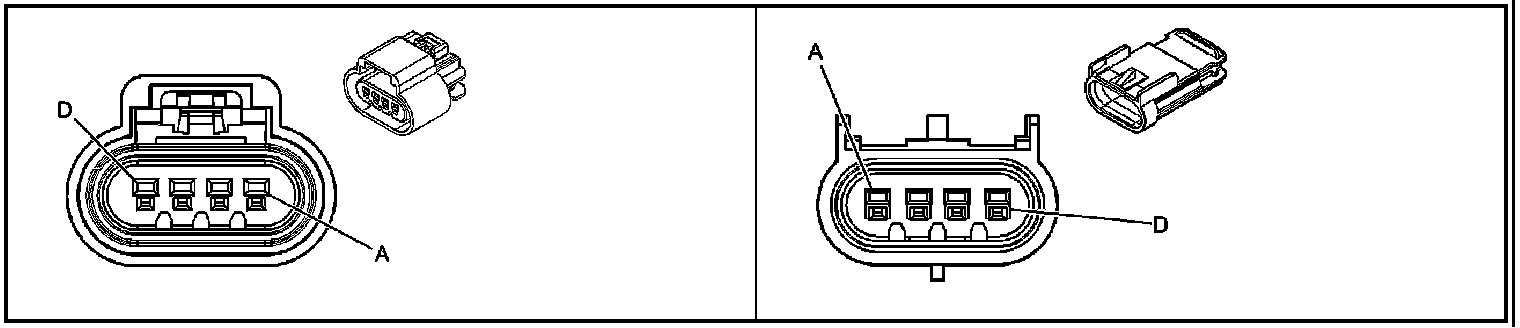

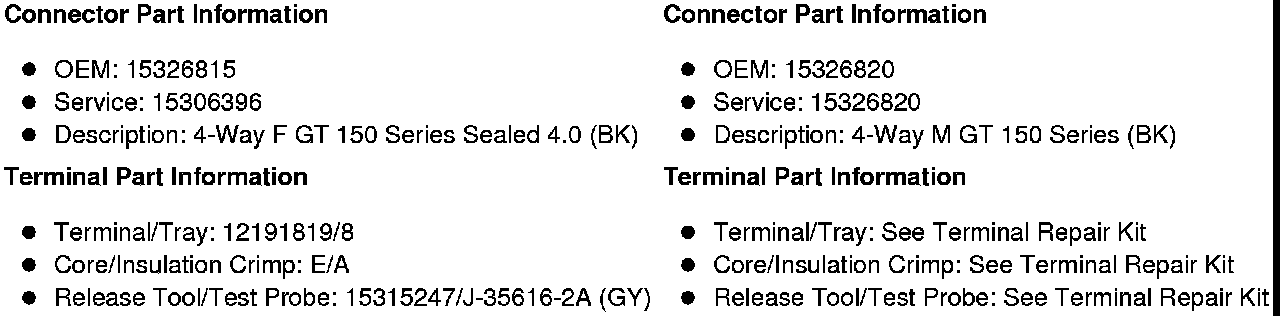

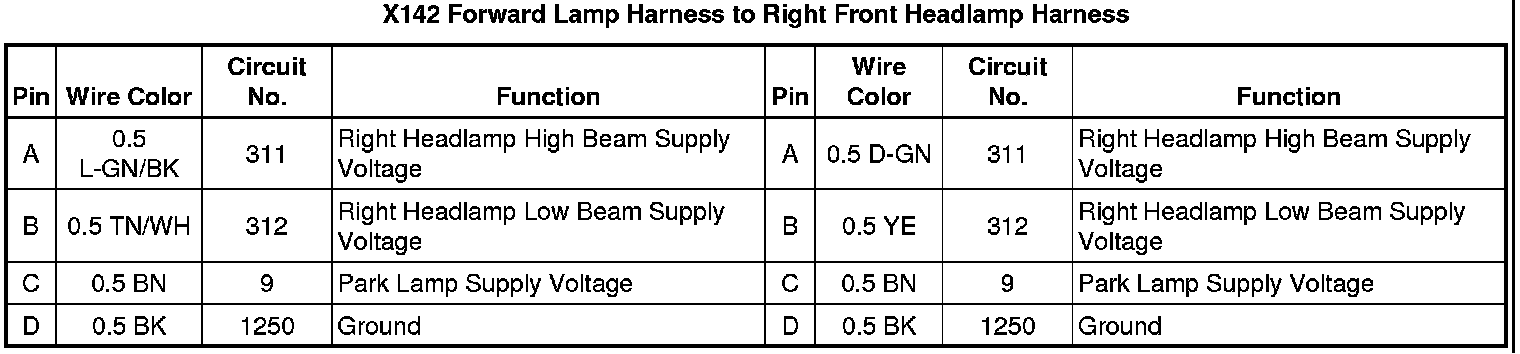

X142 Forward Lamp Harness to Right Front Headlamp Harness
