Multiple Junction Connector
>>
X100-X199
>>
X120
X120

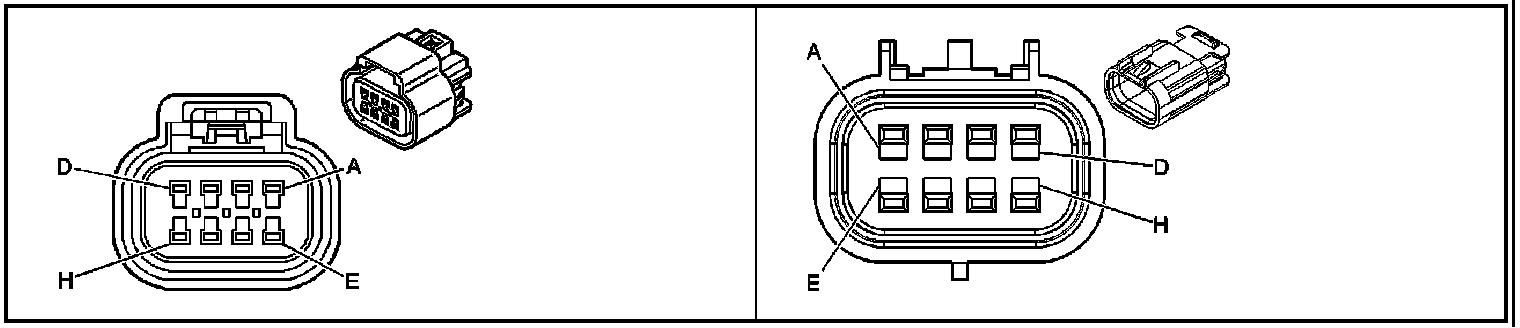

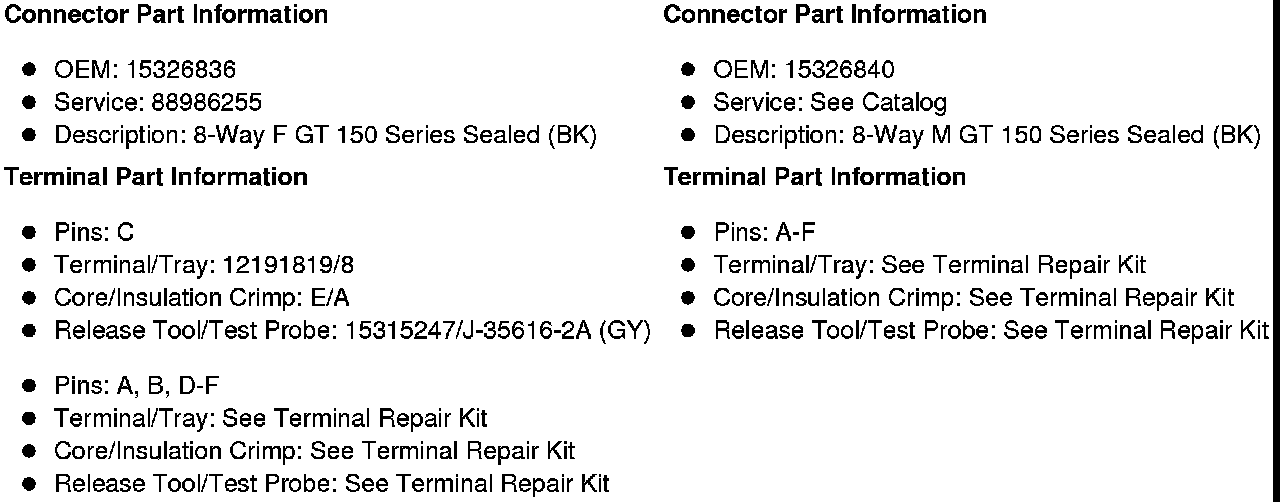

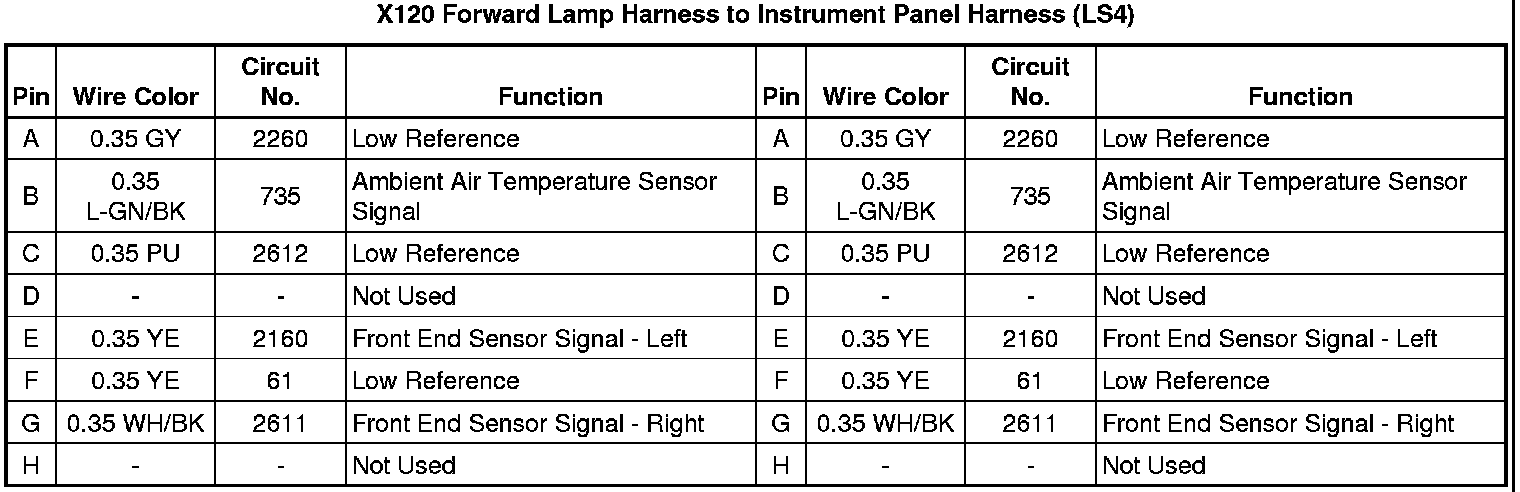

X120 Forward Lamp Harness to Instrument Panel Harness (LS4 - 5.3L)
