Multiple Junction Connector
>>
X100-X199
>>

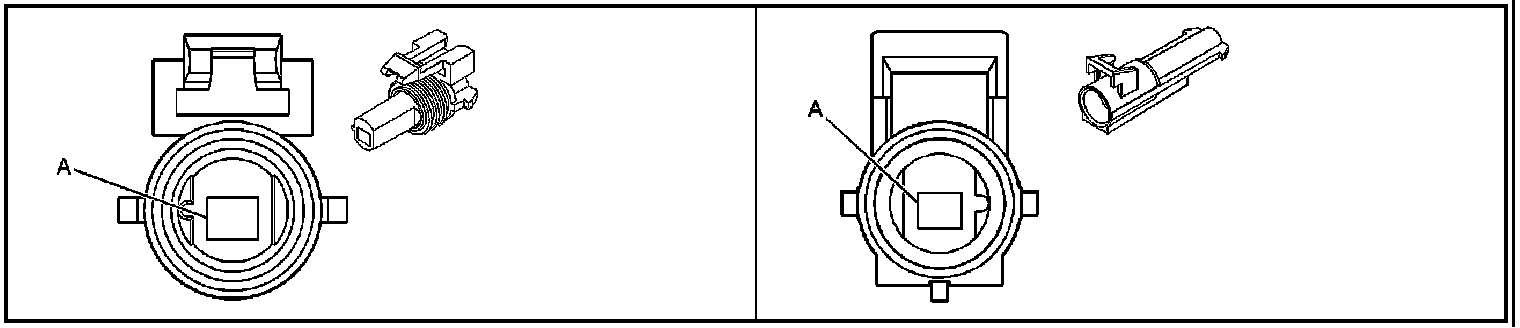

X105

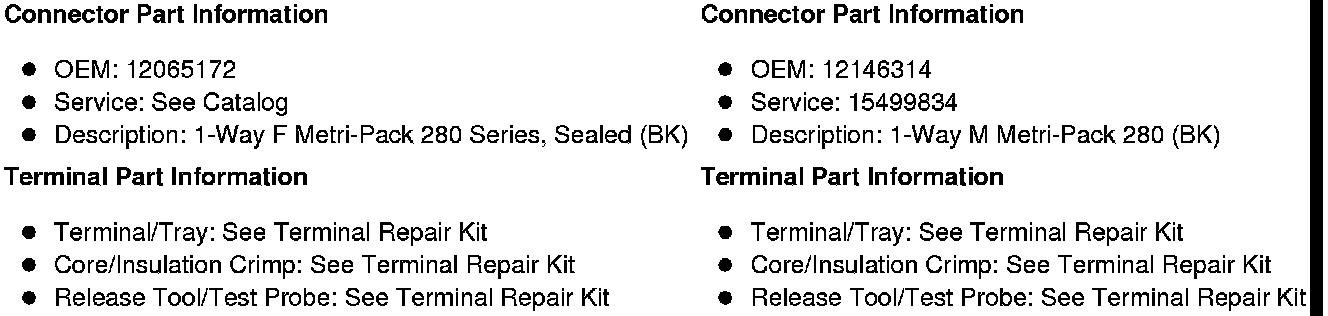

X105
X105

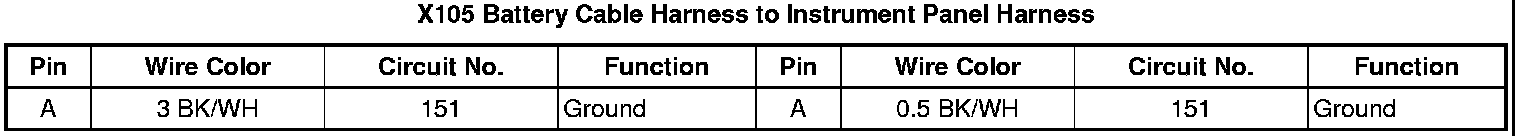

Battery Cable
Harness to Instrument Panel Harness
