Home
>>
Pontiac
>>
2008
>>
Grand Prix V6-3.8L
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Multiple Junction Connector
>>
X100-X199
>>
X101
X101

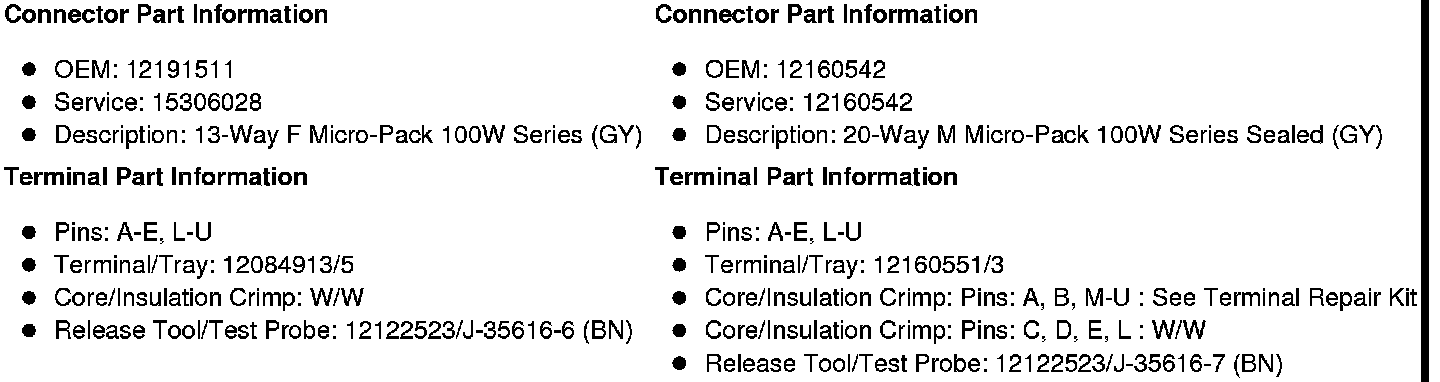

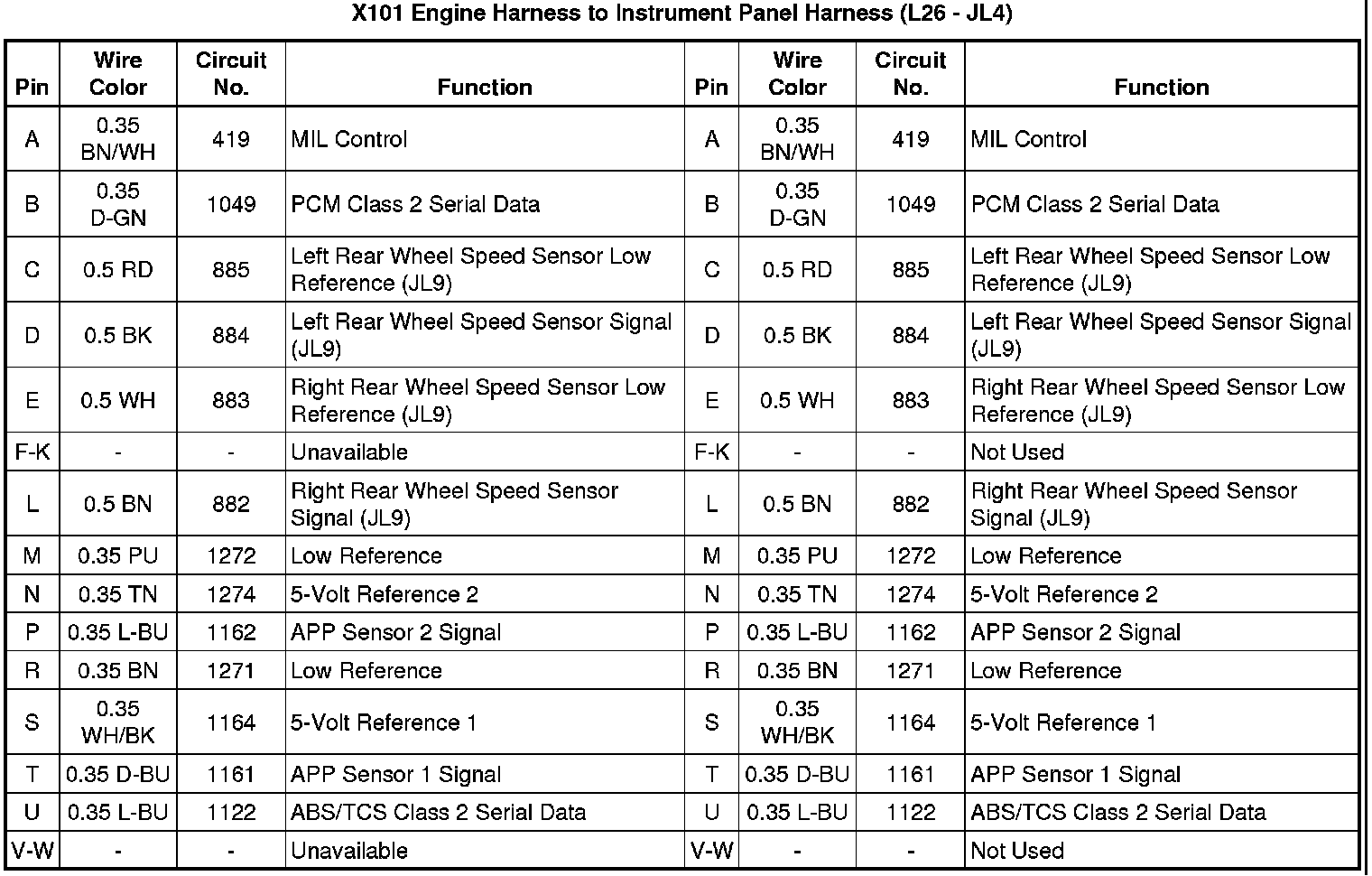

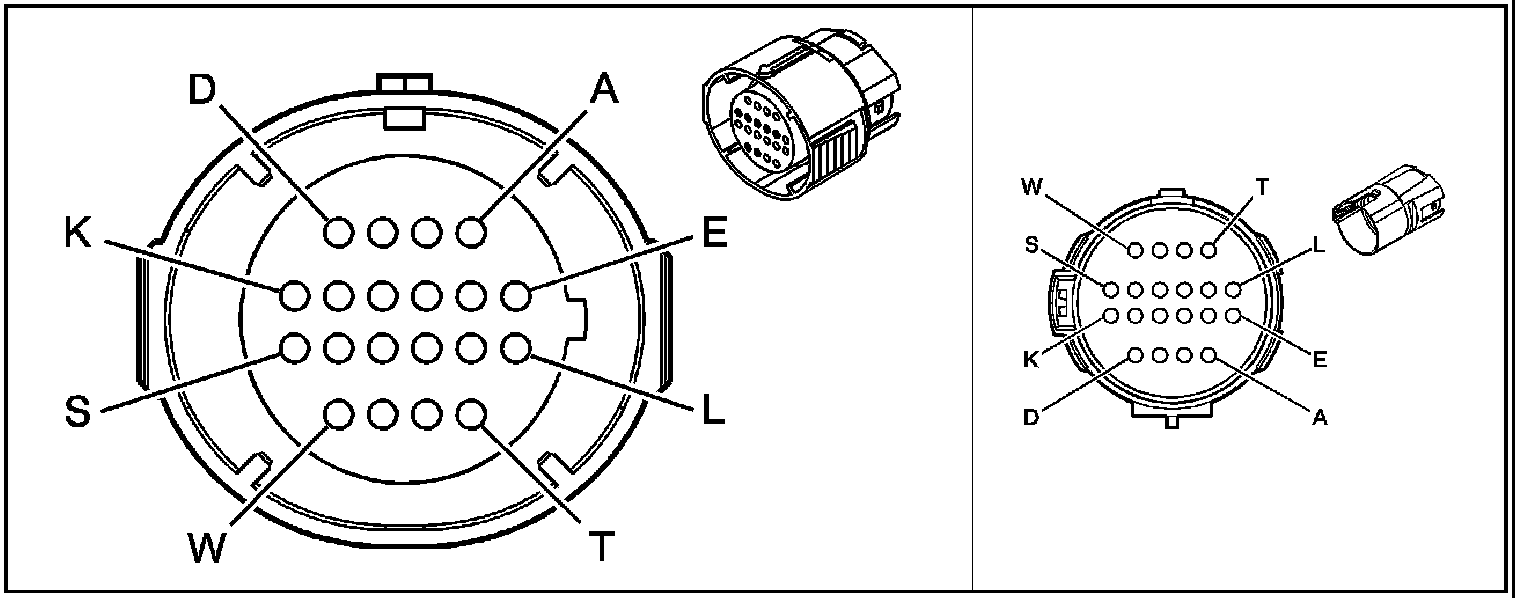

X101 Engine Harness to Instrument Panel Harness (L26 - 3.8L - JL4)
