Home >> Pontiac >> 2008 >> Grand Prix V6-3.8L >> Repair and Diagnosis >> Diagrams >> Connector Views >> Marker Lamp

Marker Lamp



Marker Lamp - Left Front






Marker Lamp - Left Rear

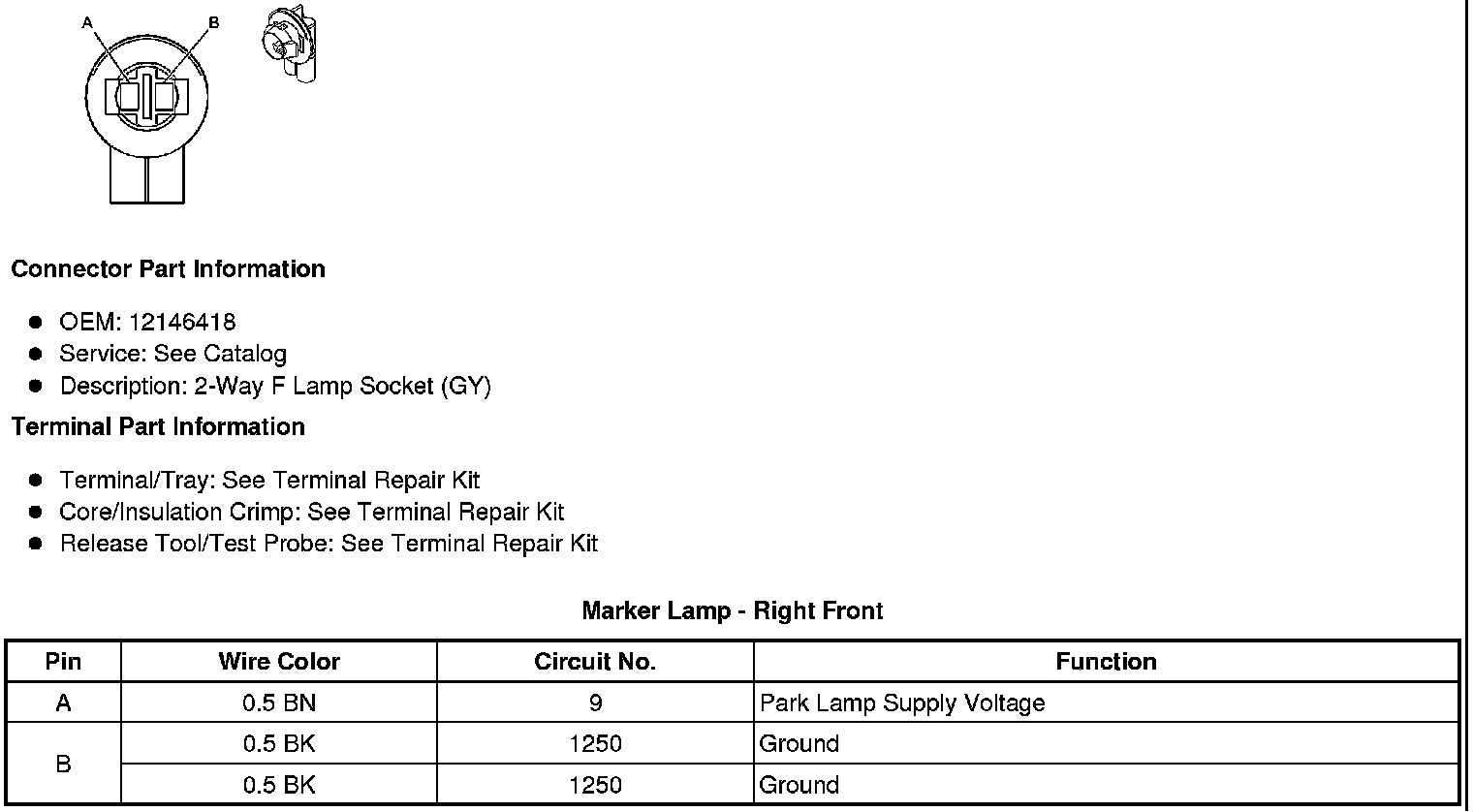

Marker Lamp - Right Front

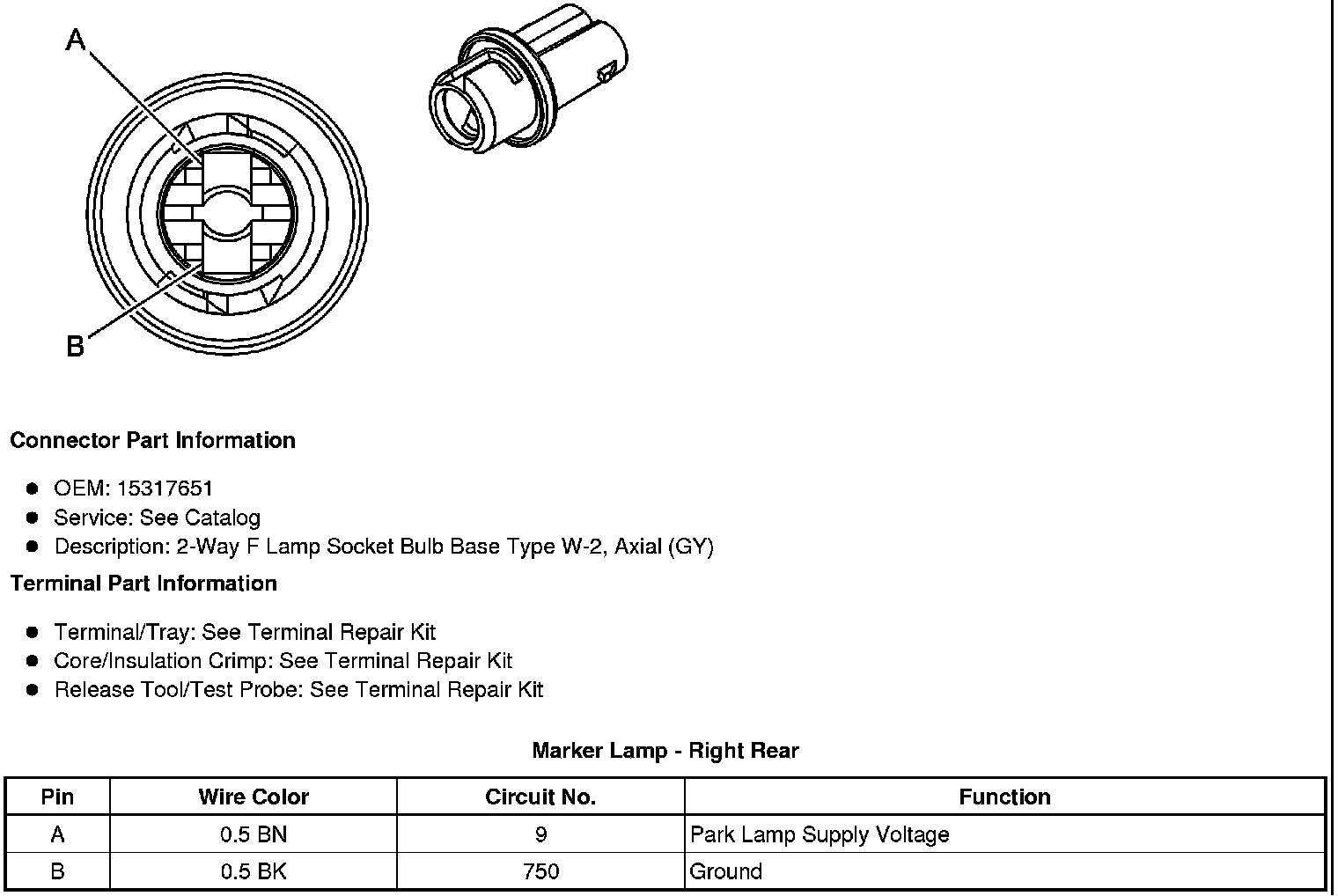

Marker Lamp - Right Rear
