Pontiac
>>
2008
>>
Grand Prix V6-3.8L
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Lifter / Lash Adjuster, Valve
Lifter / Lash Adjuster, Valve

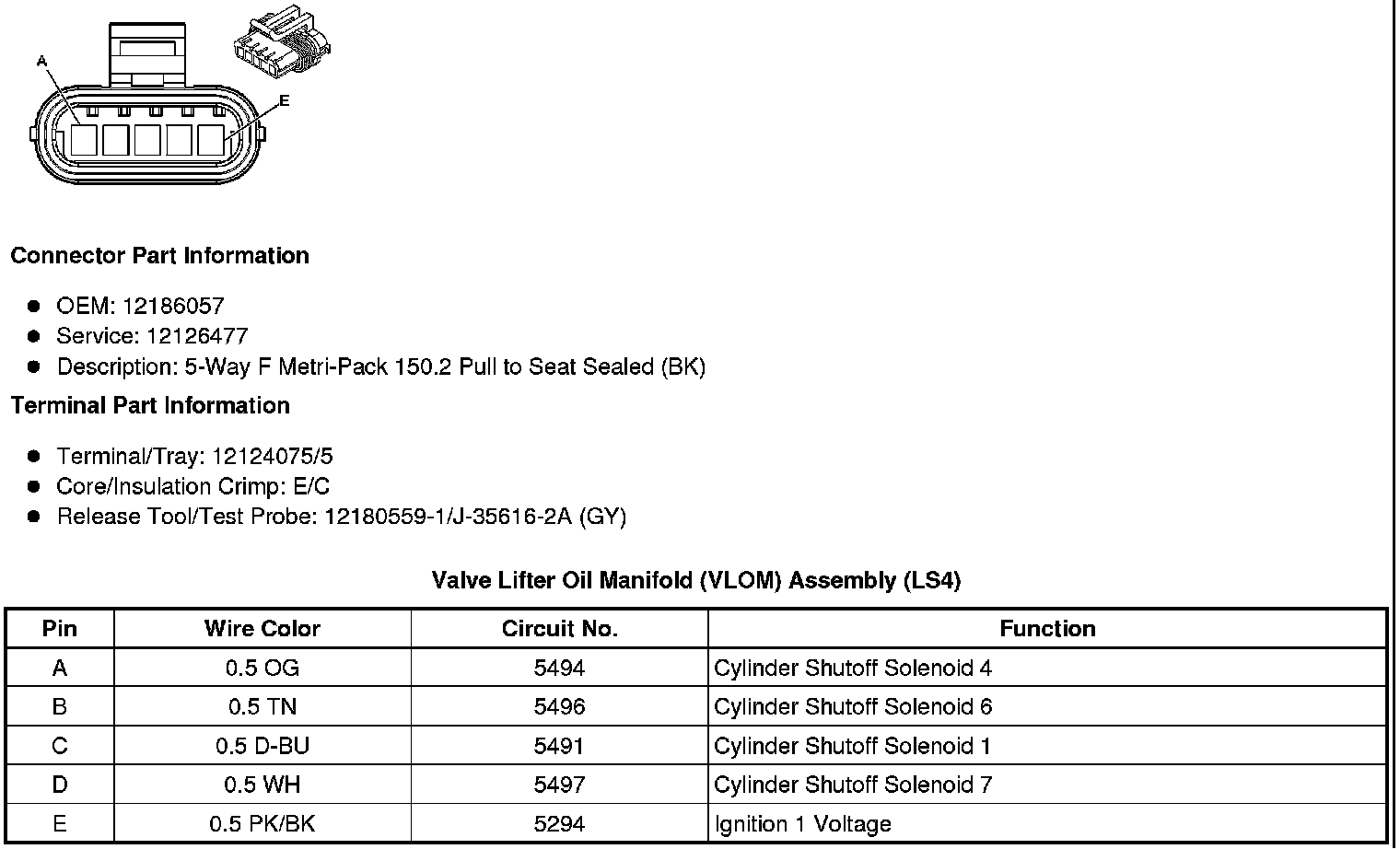

Valve Lifter Oil Manifold (VLOM) Assembly (LS4 - 5.3L)
