Fuel Injector

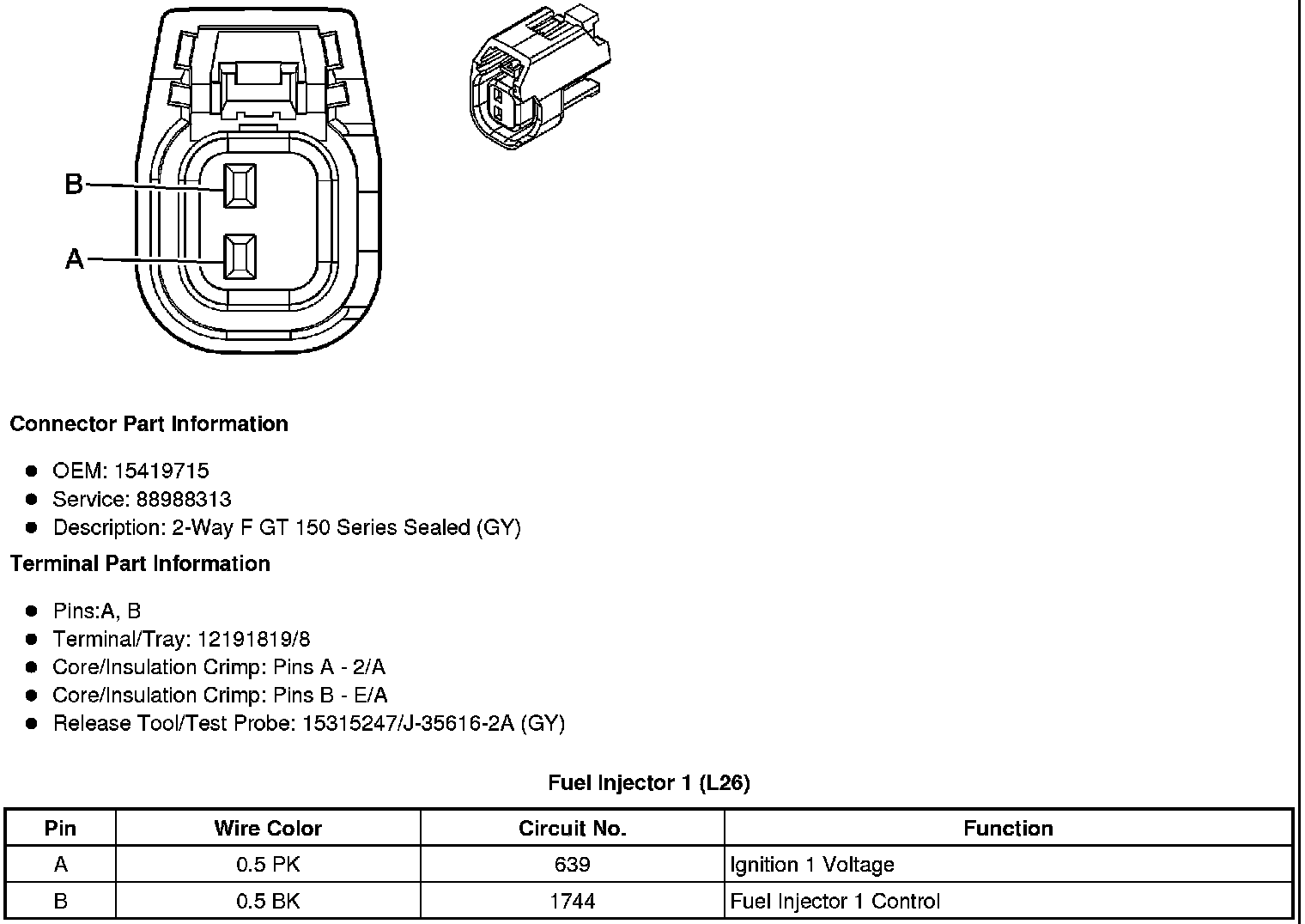

Fuel Injector 1 (L26)






Fuel Injector 1 (LS4 - 5.3L)






Fuel Injector 2 (L26)






Fuel Injector 2 (LS4 - 5.3L)

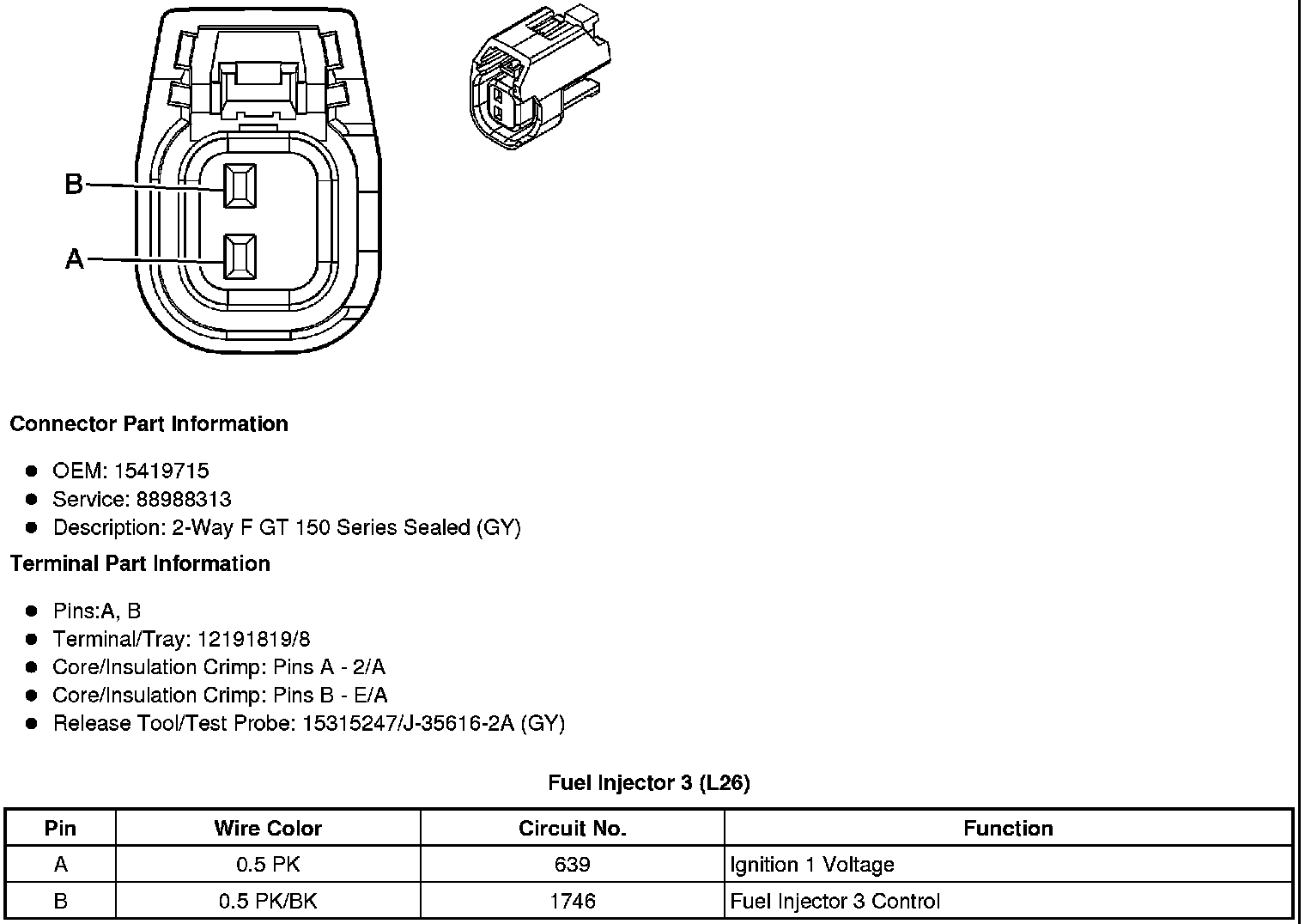

Fuel Injector 3 (L26)






Fuel Injector 3 (LS4 - 5.3L)

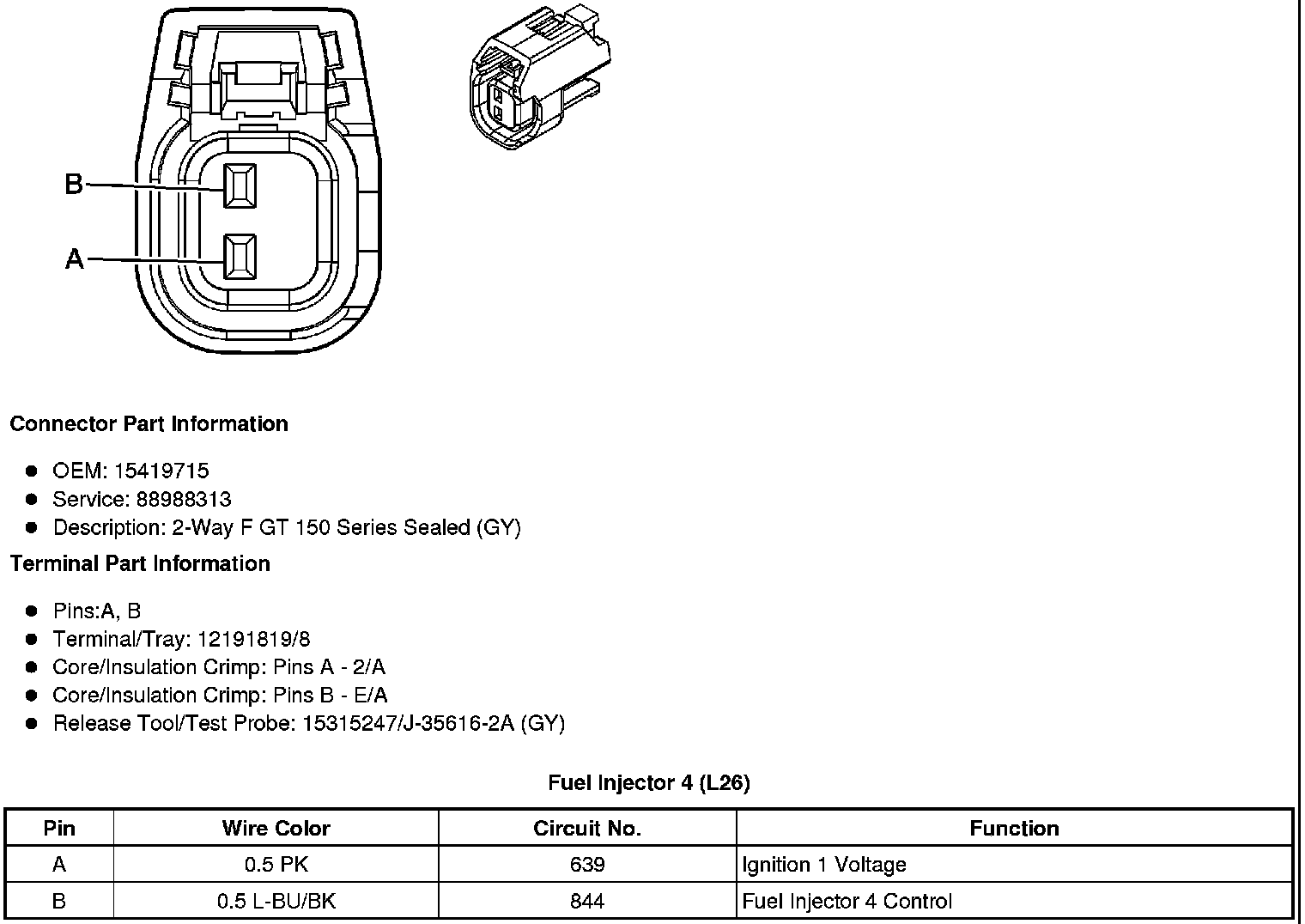

Fuel Injector 4 (L26)

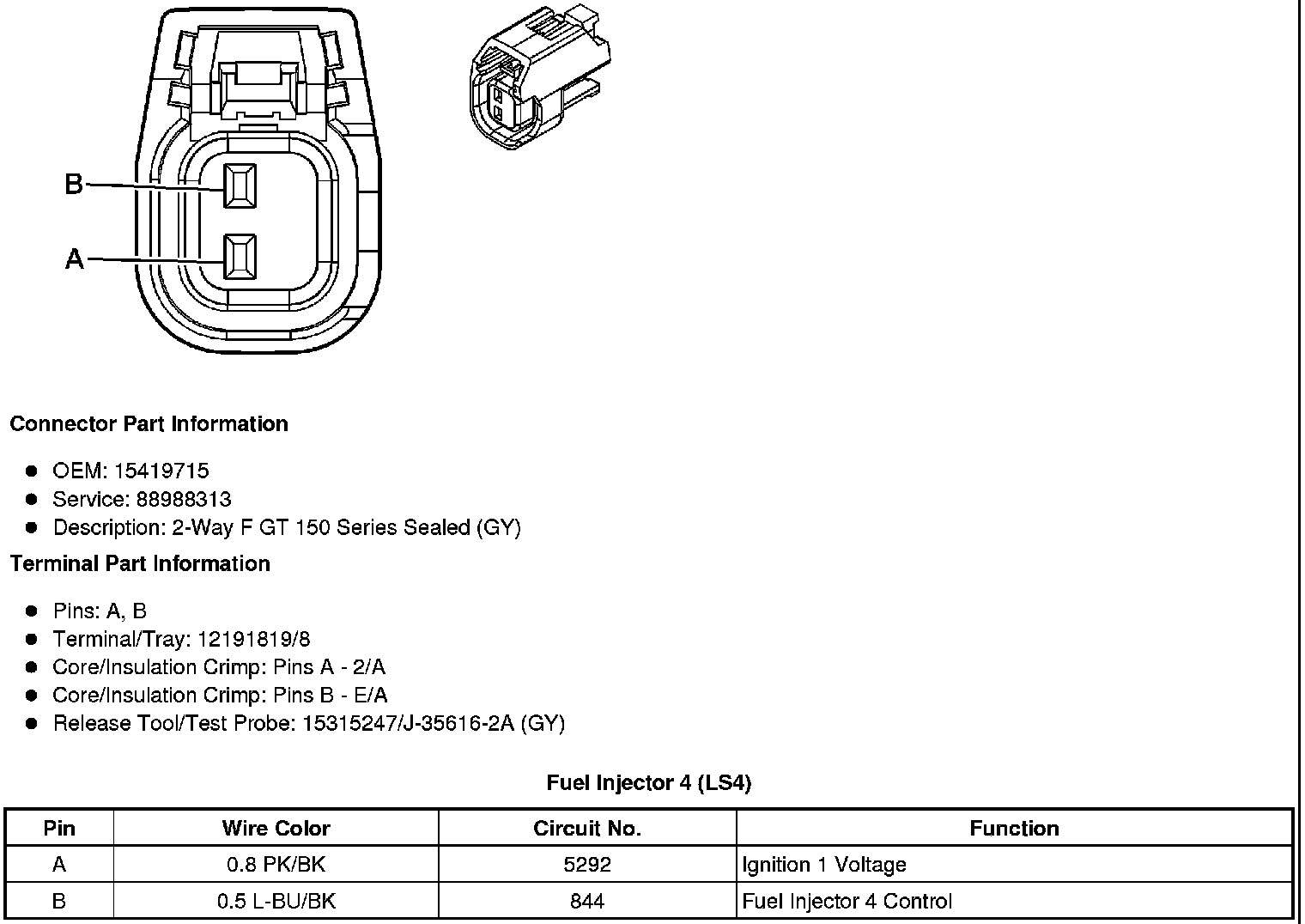

Fuel Injector 4 (LS4 - 5.3L)






Fuel Injector 5 (L26)






Fuel Injector 5 (LS4 - 5.3L)






Fuel Injector 6 (L26)

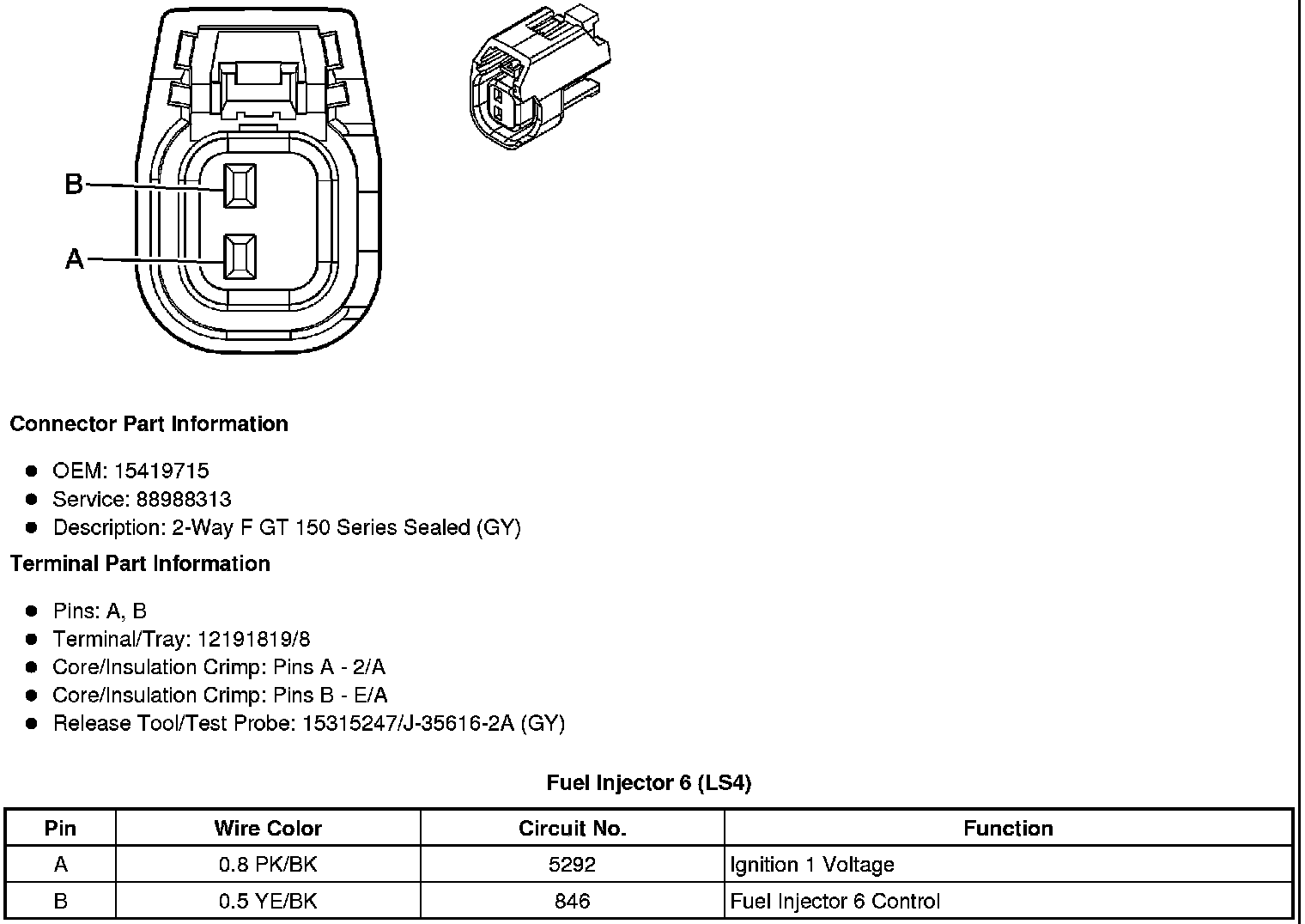

Fuel Injector 6 (LS4 - 5.3L)






Fuel Injector 7 (LS4 - 5.3L)

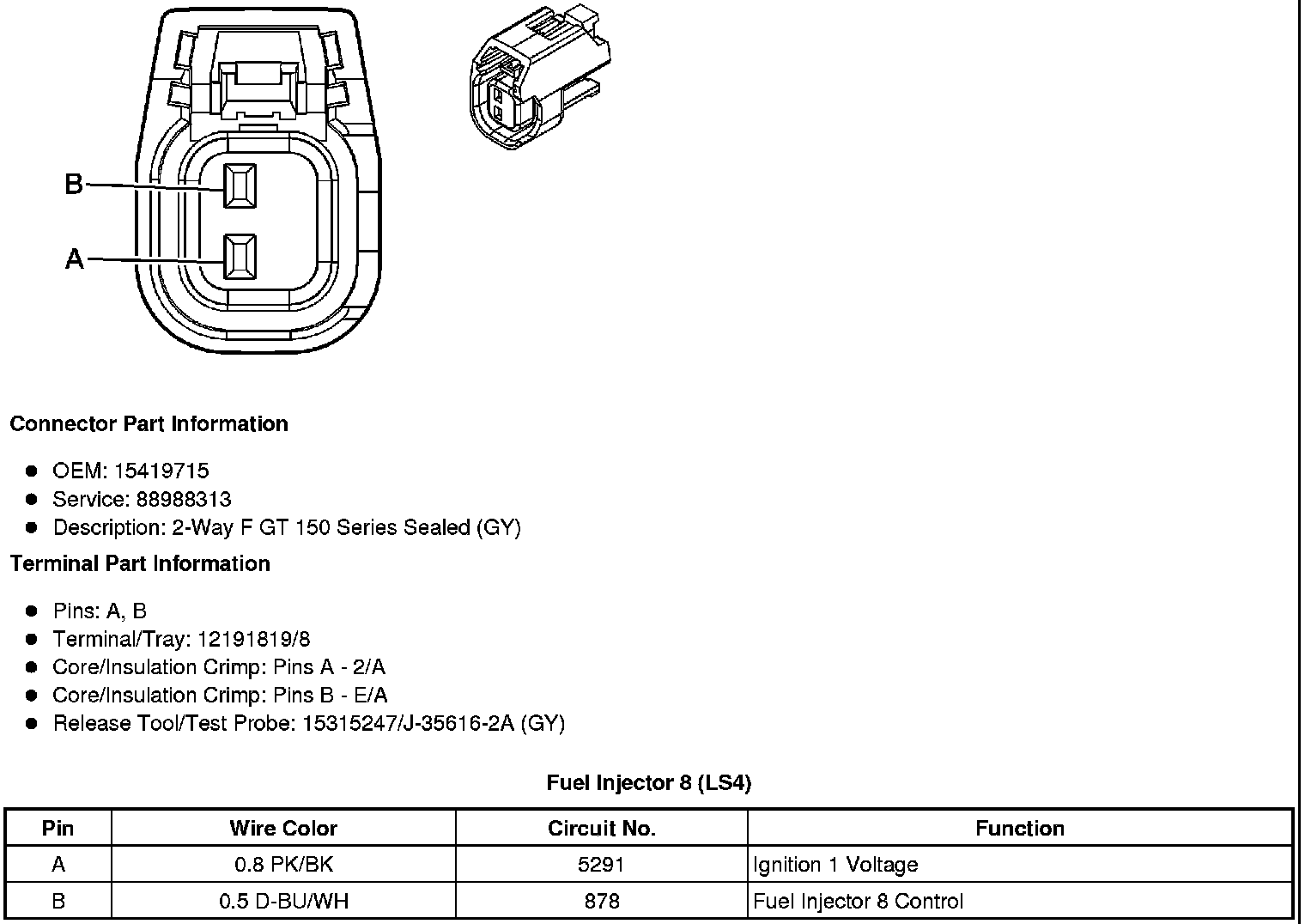

Fuel Injector 8 (LS4 - 5.3L)
