Home >> Pontiac >> 2008 >> Grand Prix V6-3.8L >> Repair and Diagnosis >> Diagrams >> Connector Views >> EGR Valve

EGR Valve

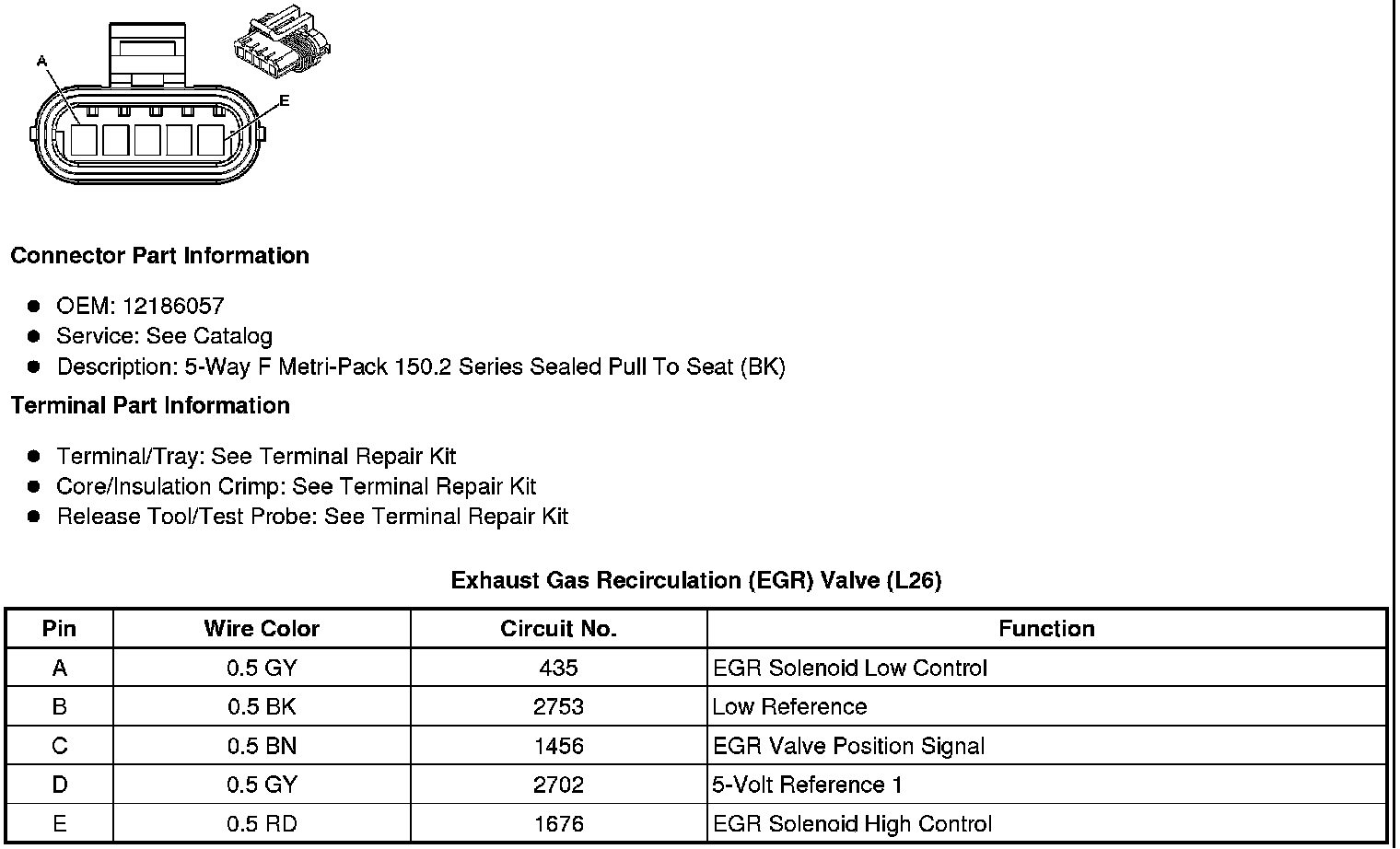

Exhaust Gas Recirculation (EGR) Valve (L26)
