LEMON Manuals
: Even more car manuals for everyone
Home
>>
Pontiac
>>
2008
>>
Grand Prix V6-3.8L
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Connectors By Number
>>
X300 - X399
>>
X311
X311

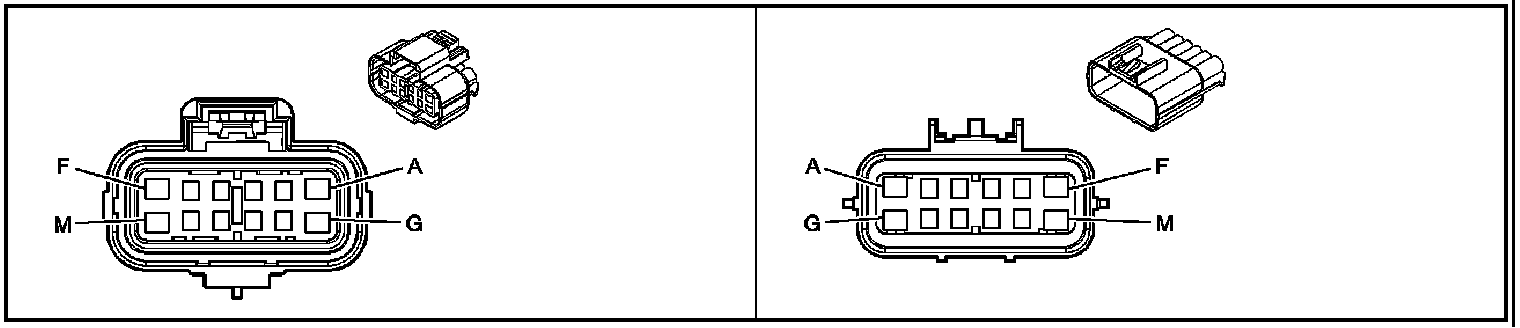

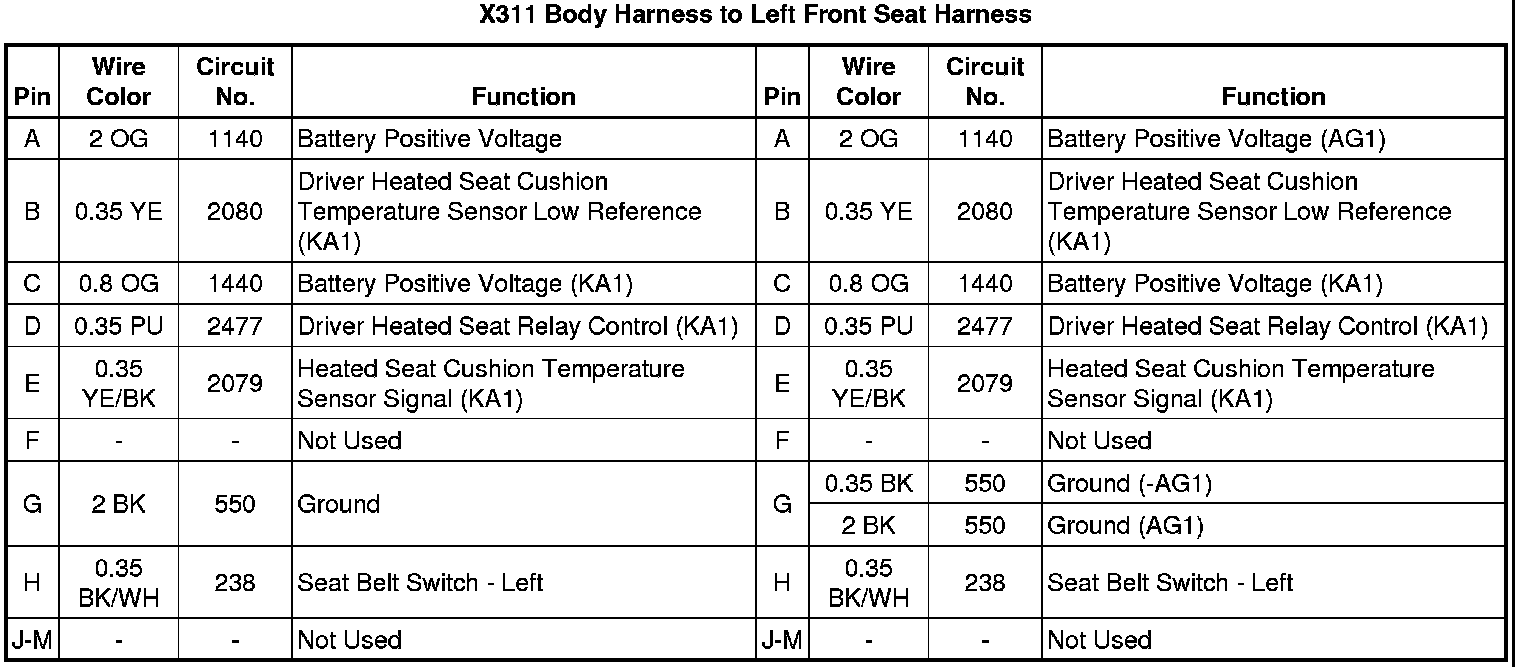

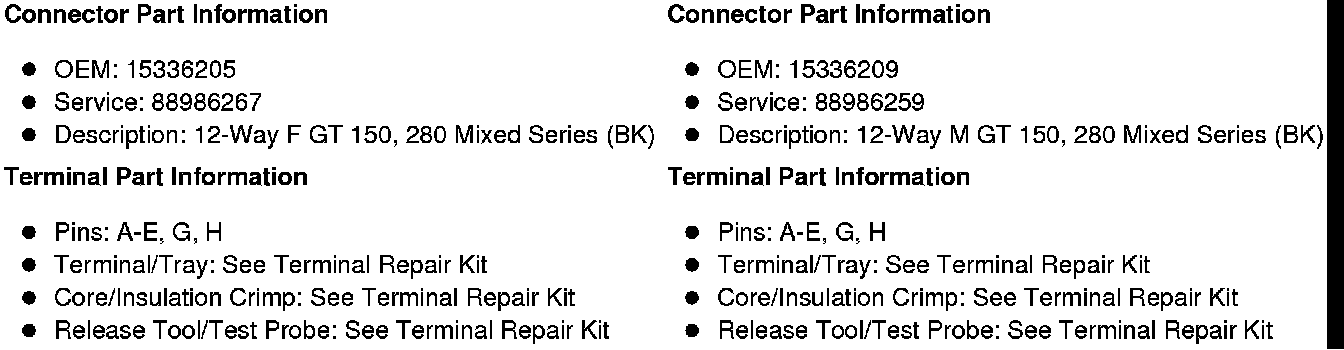

X311 Body Harness to Left Front Seat Harness
