Home
>>
Pontiac
>>
2008
>>
Grand Prix V6-3.8L
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Connectors By Number
>>
X200 - X299
>>
X240
X240

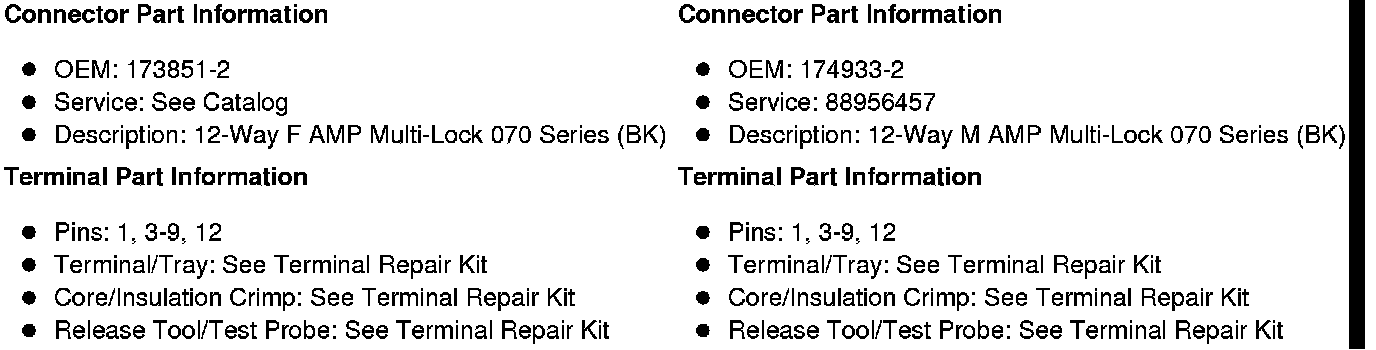

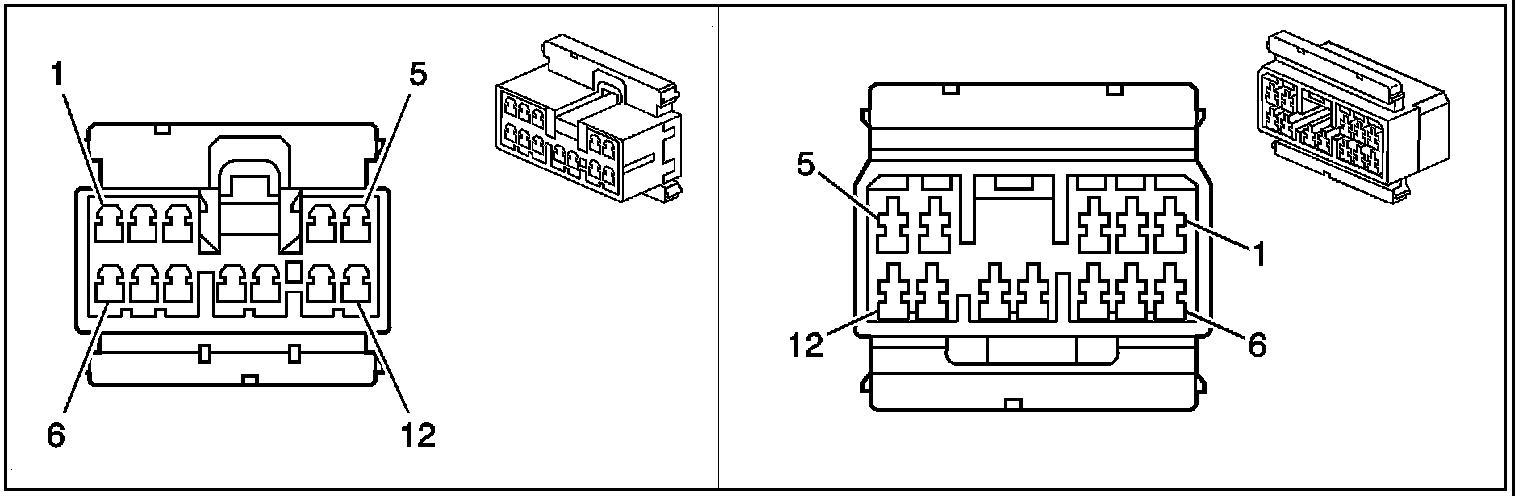

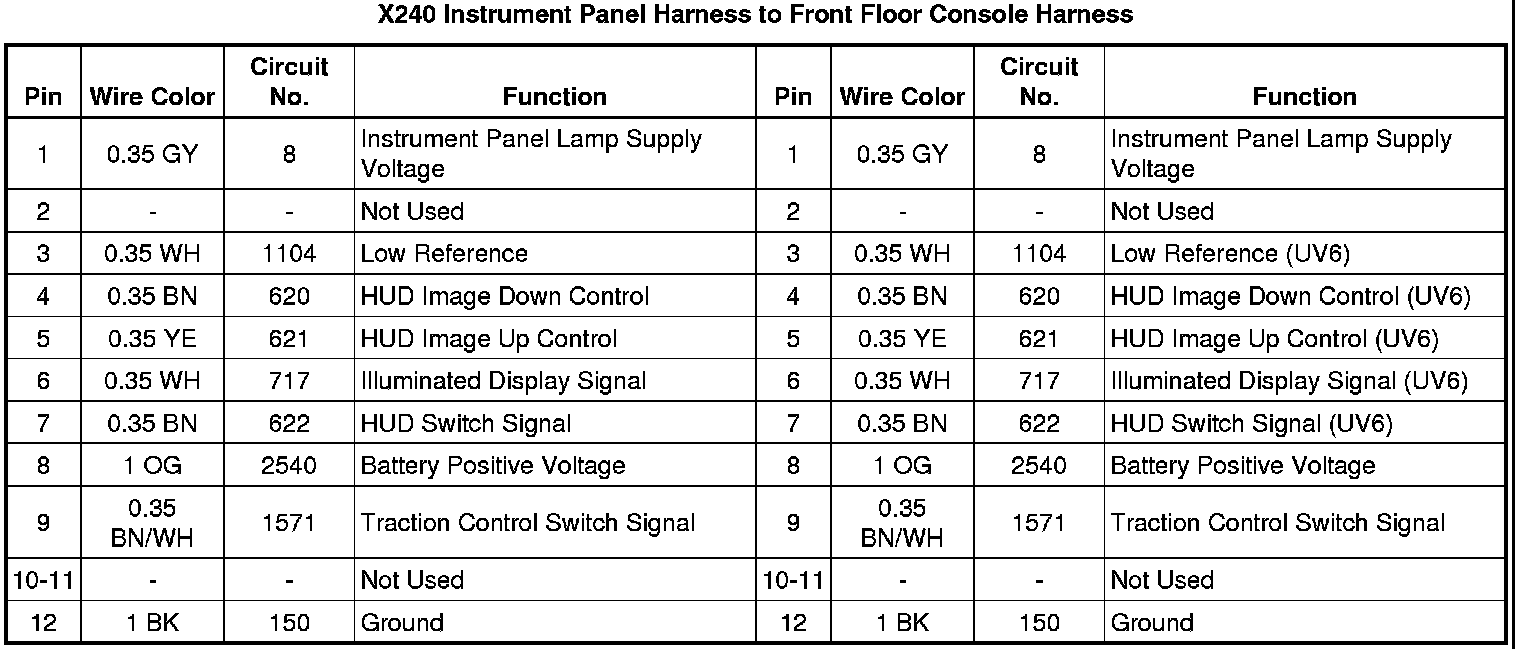

X240 Instrument Panel Harness to Front Floor Console Harness
