Pontiac
>>
2008
>>
Grand Prix V6-3.8L
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Connectors By Number
>>
X100 - X199
>>
X111
X111

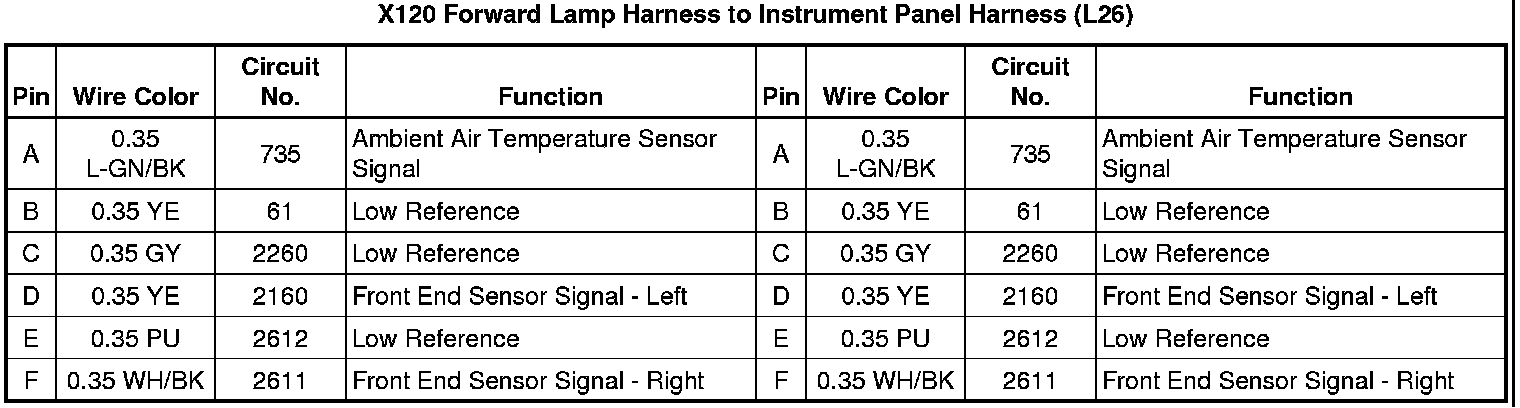

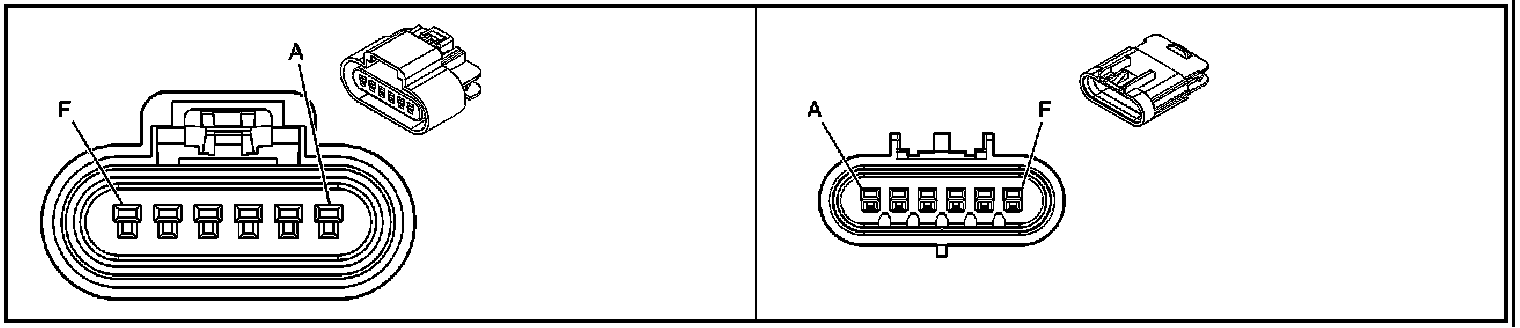

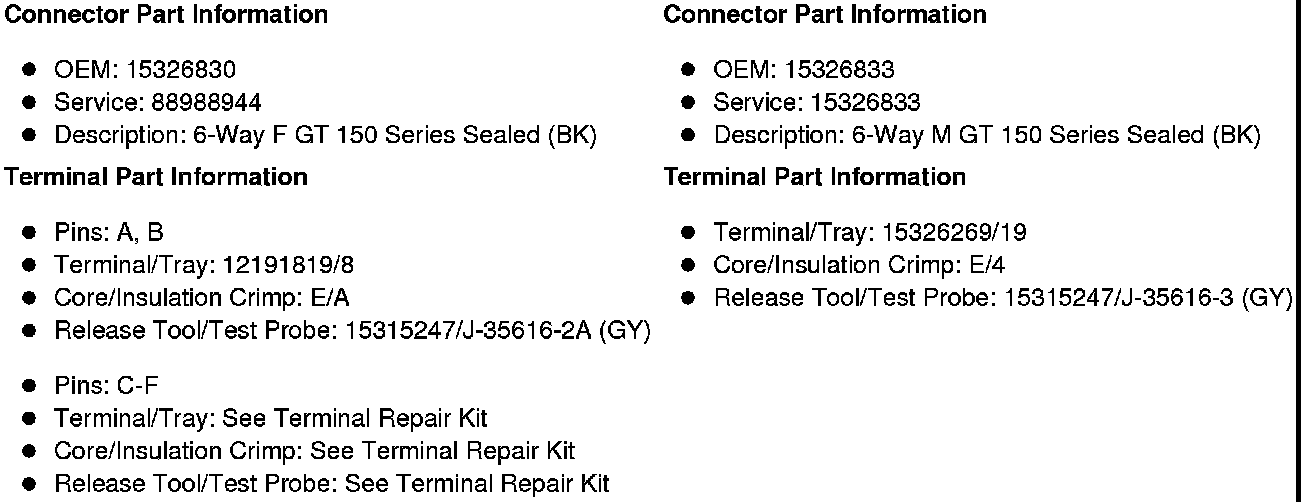

X120 Forward Lamp Harness to Instrument Panel Harness (L26 - 3.8L)
