Home >> Pontiac >> 2008 >> Grand Prix V6-3.8L >> Repair and Diagnosis >> Diagrams >> Connector Views >> Component Connector End Views >> Wiper and Washer Systems

Wiper and Washer Systems

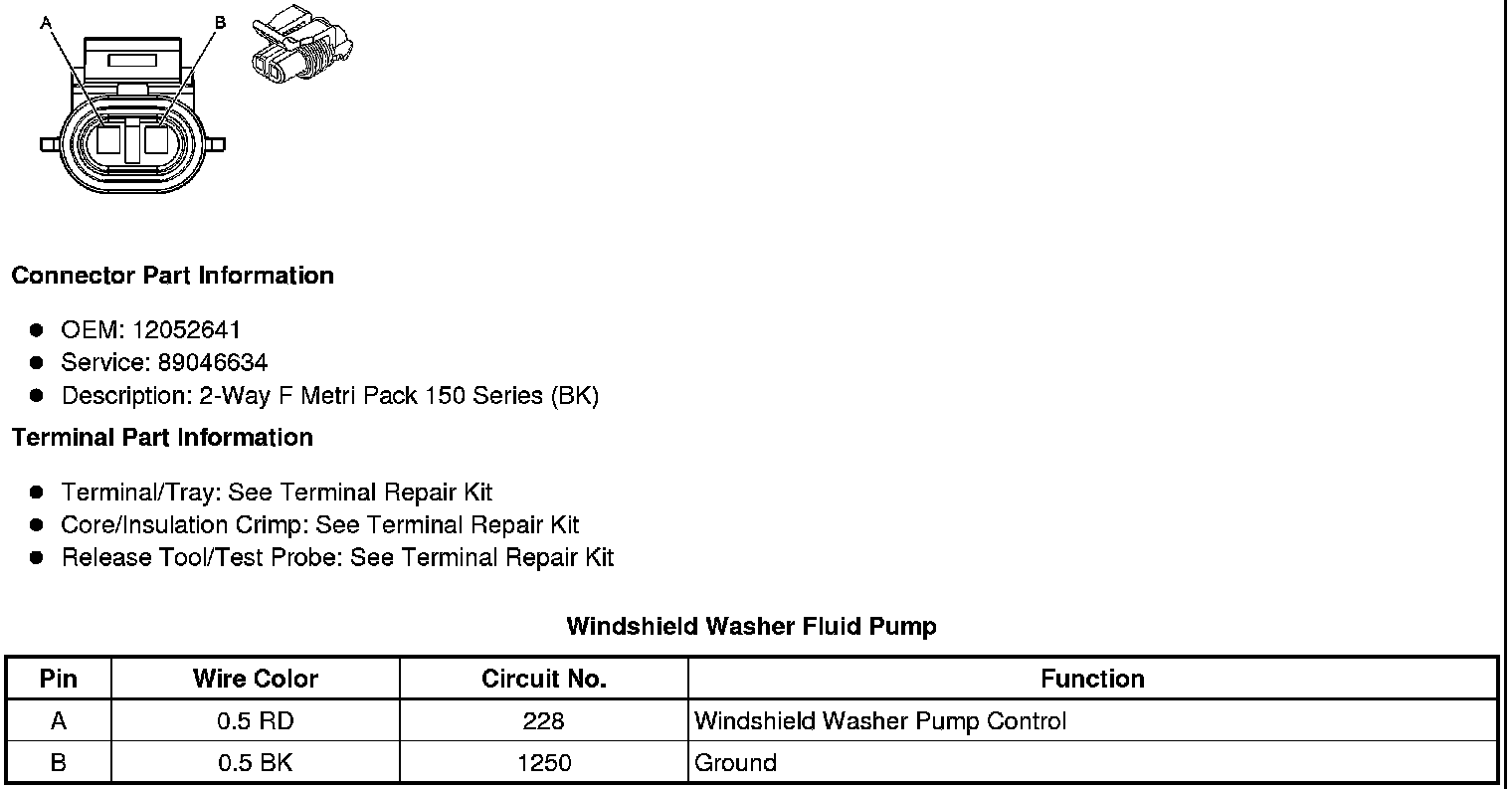

Windshield Washer Fluid Pump






Windshield Washer Fluid Level Switch






Windshield Wiper/Washer Switch

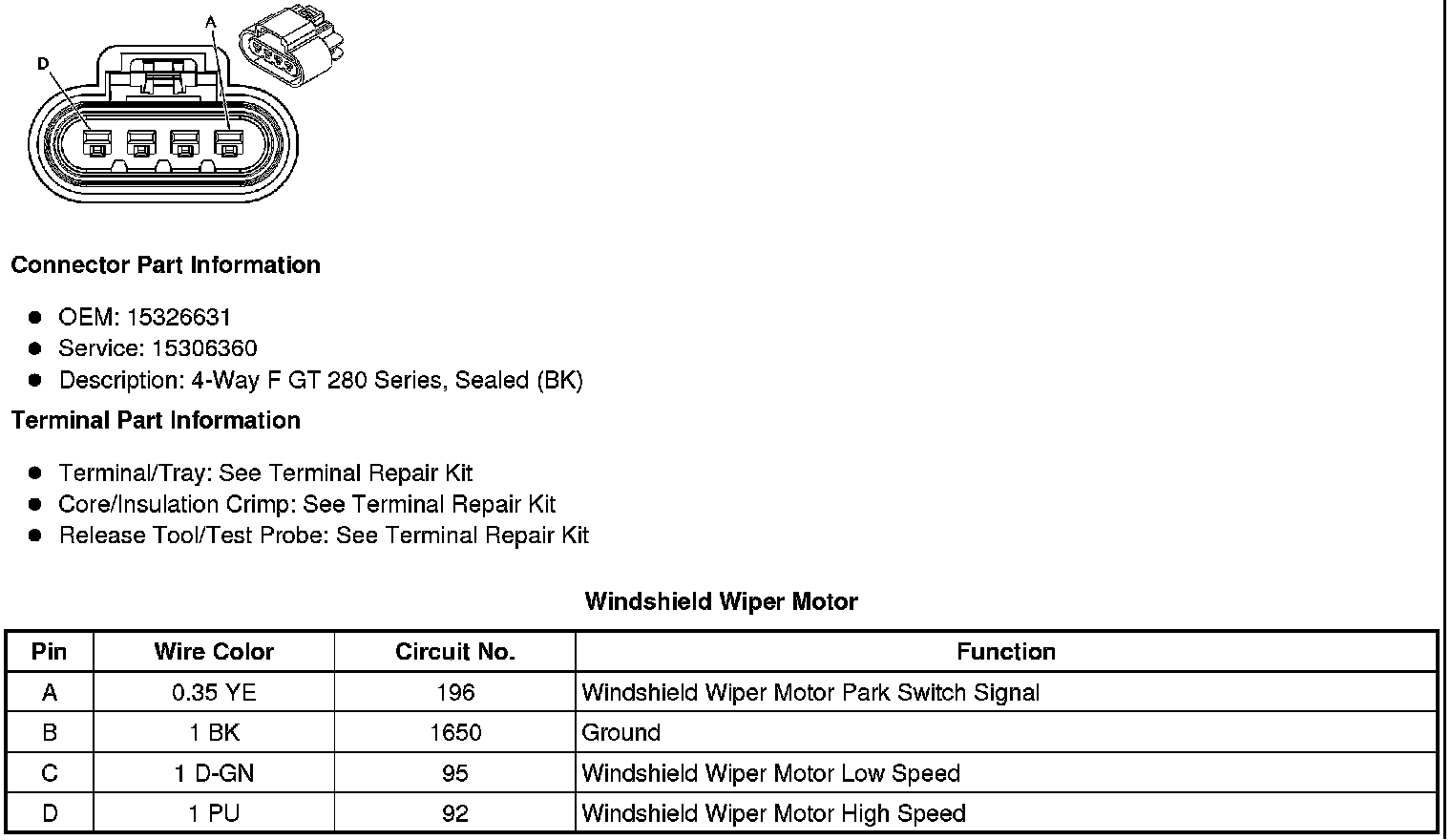

Windshield Wiper Motor
