Transmission and Drivetrain
1-2 Shift Solenoid (1-2 SS) Valve

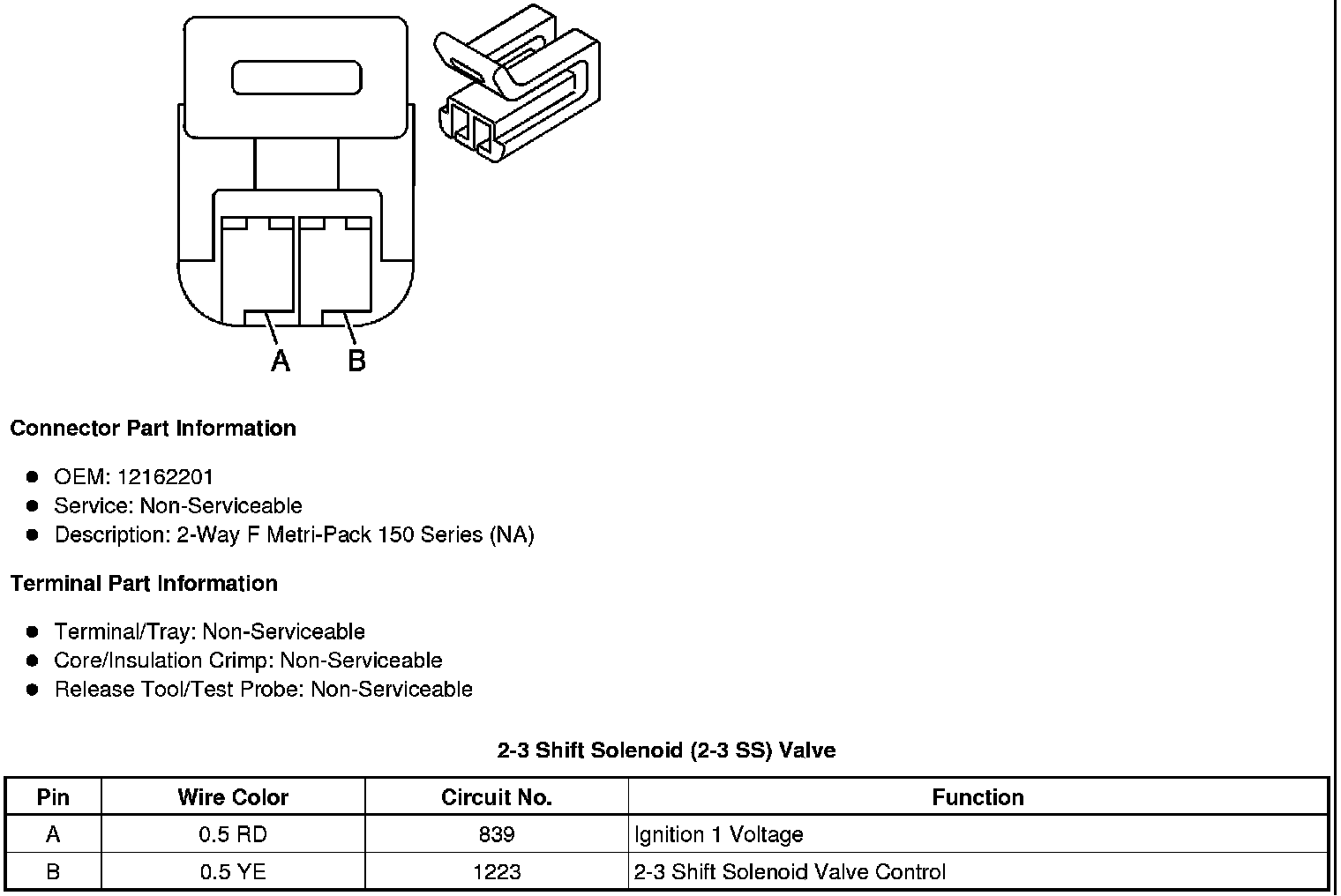

2-3 Shift Solenoid (2-3 SS) Valve

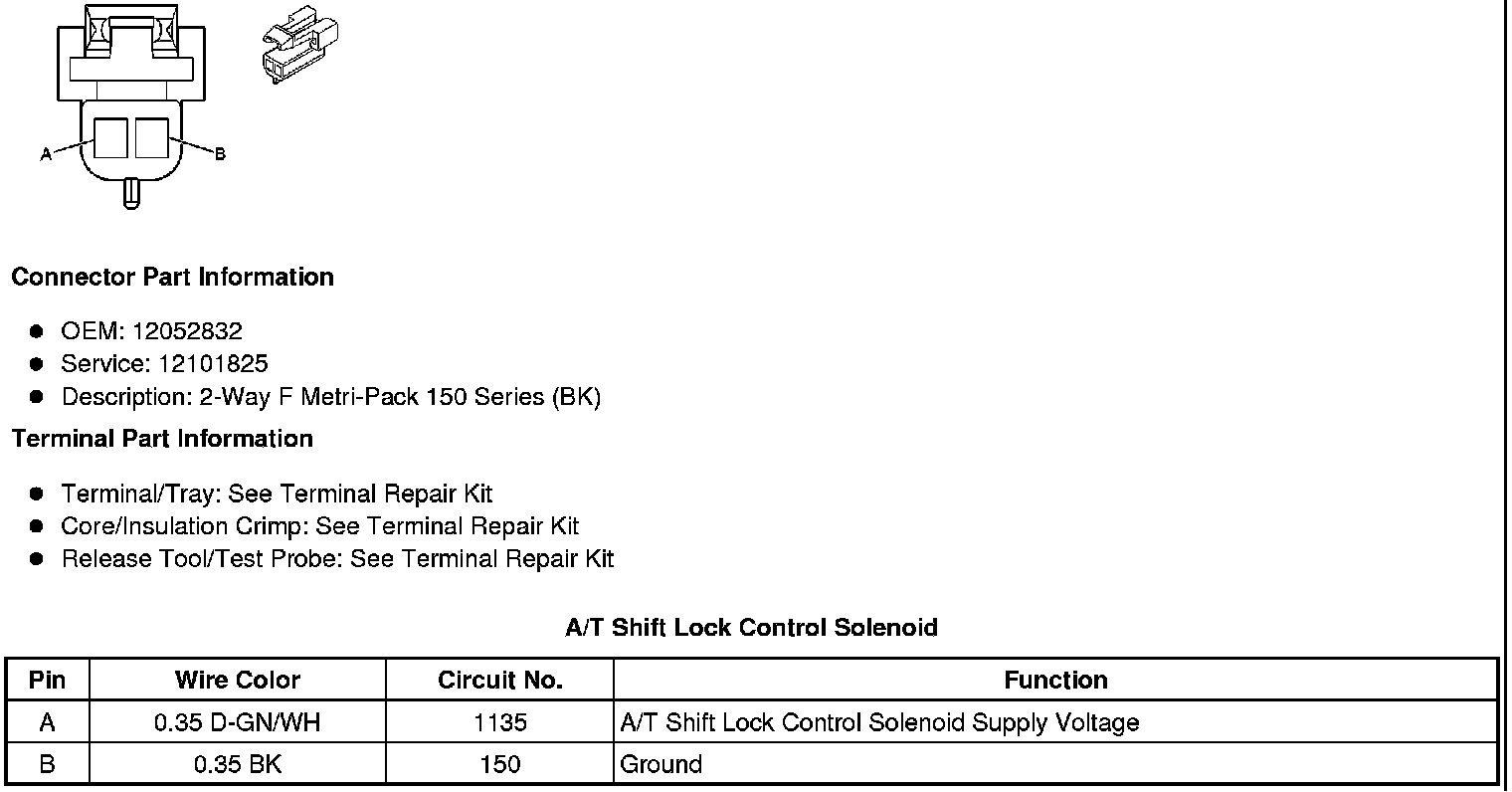

A/T Shift Lock Control Solenoid
Automatic Transmission Fluid Pressure (TFP) Manual Valve Position Switch
Automatic Transmission Fluid Temperature (TFT) Sensor

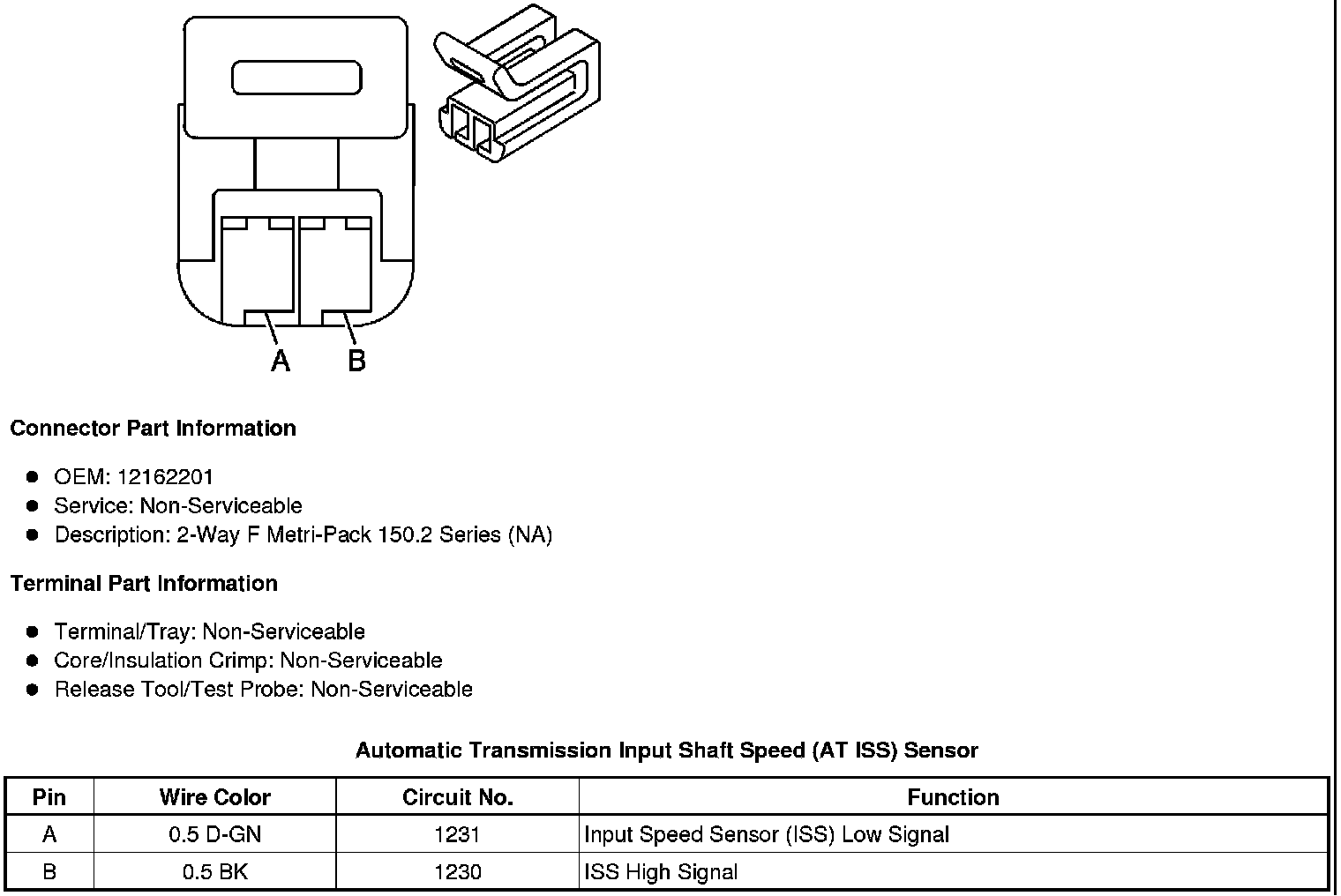

Automatic Transmission Input Shaft Speed (AT ISS) Sensor

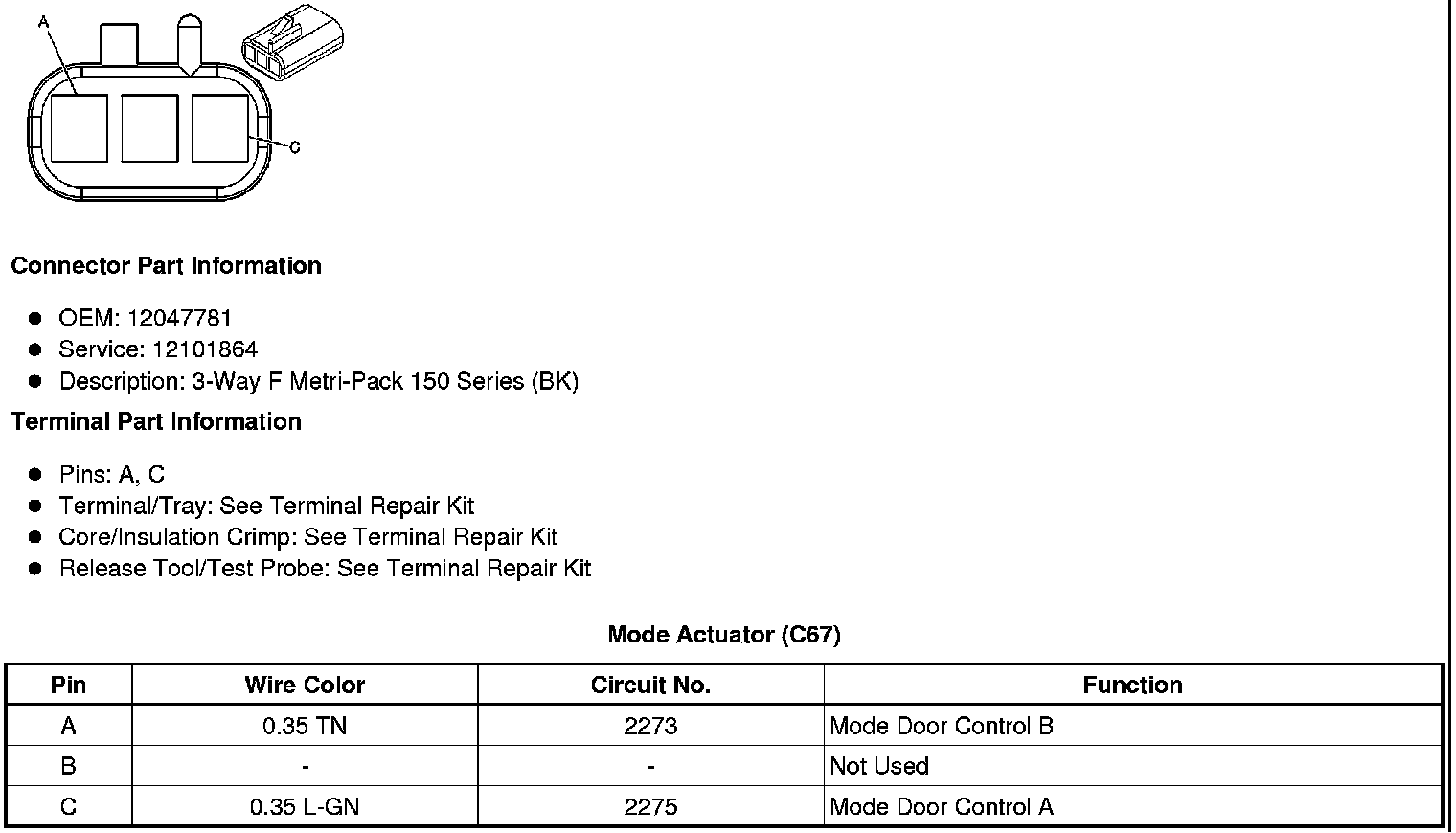

Mode Actuator (C67)
Mode Actuator (CJ2)

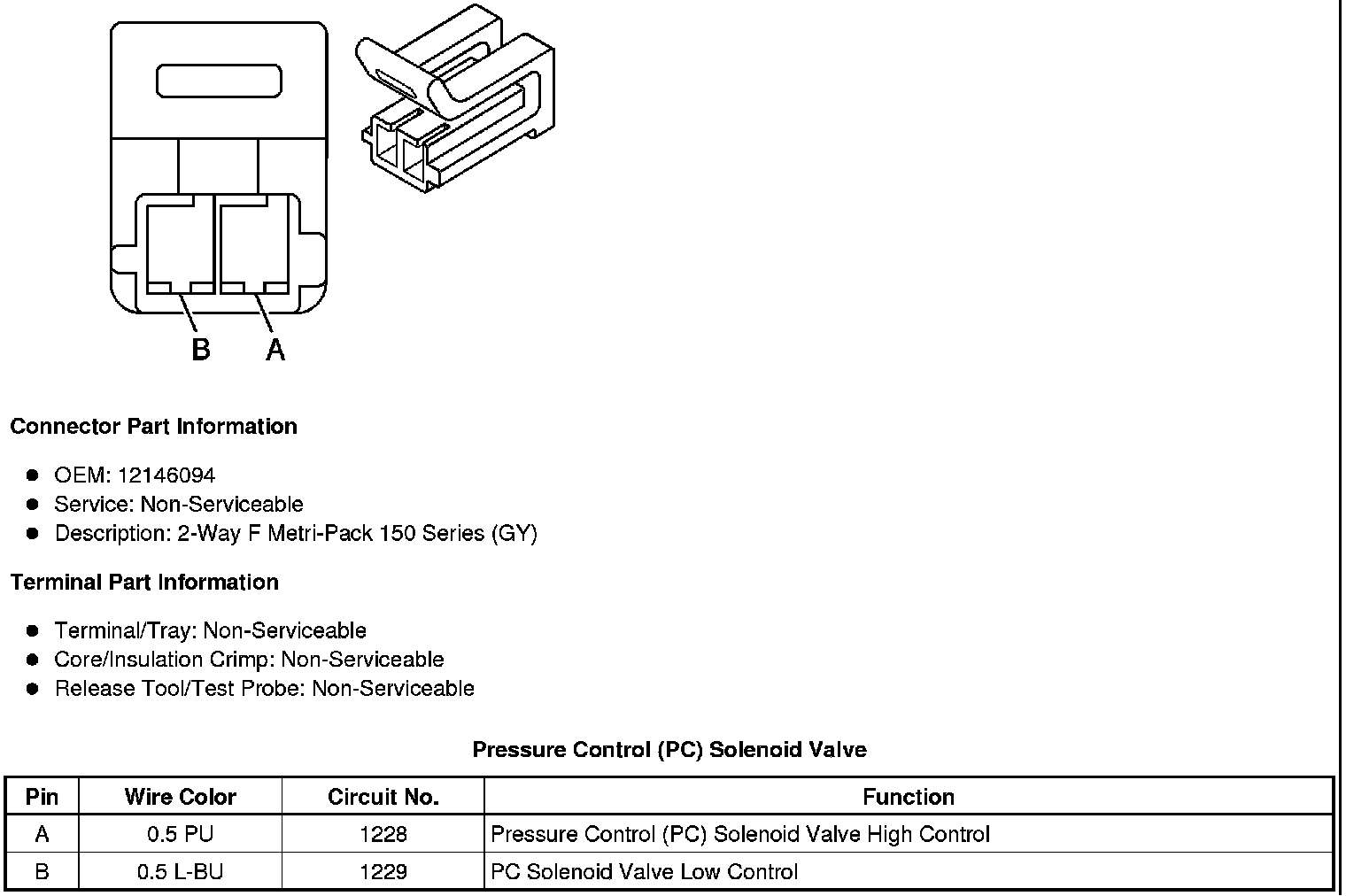

Pressure Control (PC) Solenoid Valve

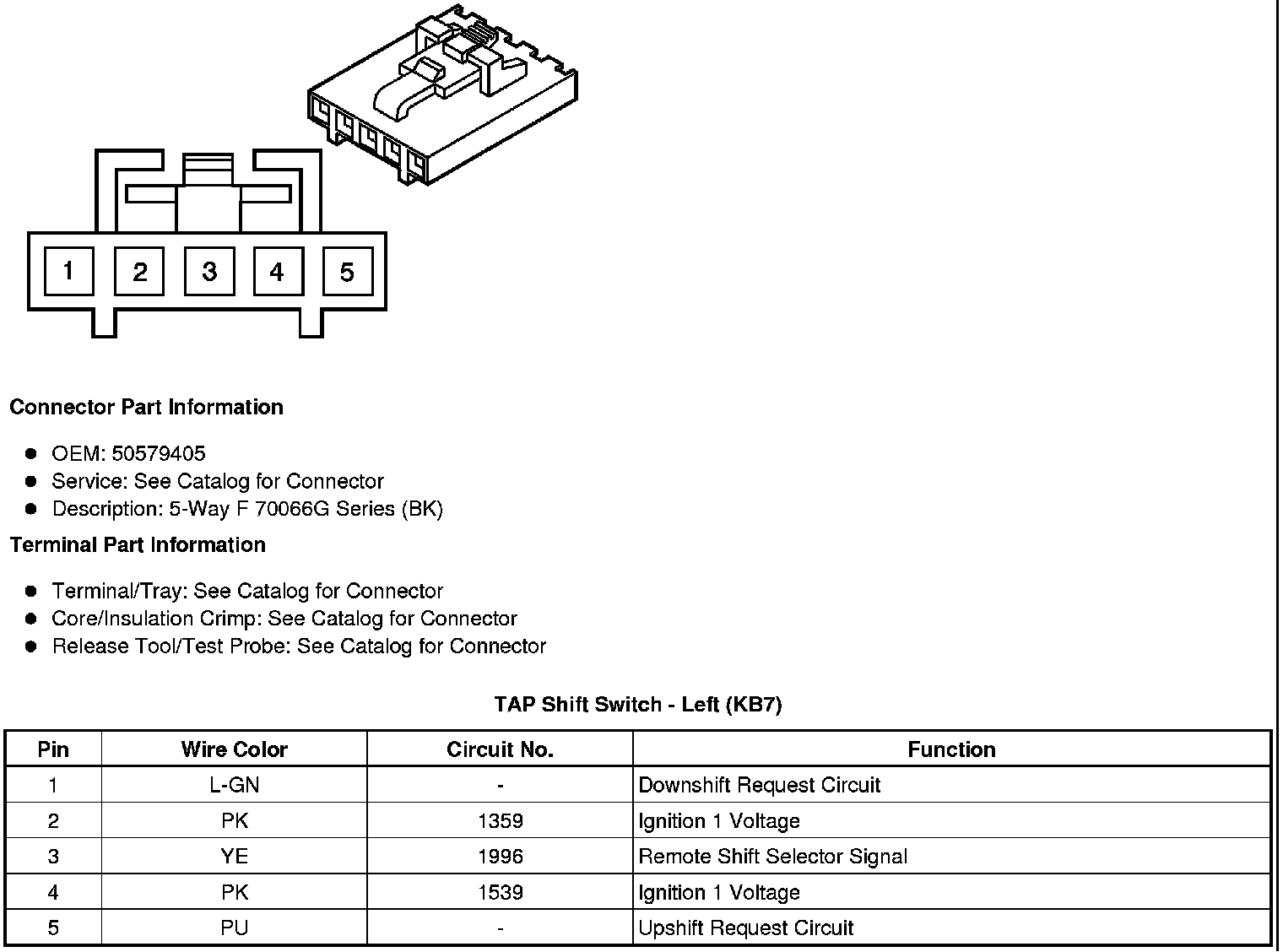

TAP Shift Switch - Left (KB7)
TAP Shift Switch - Right (KB7)

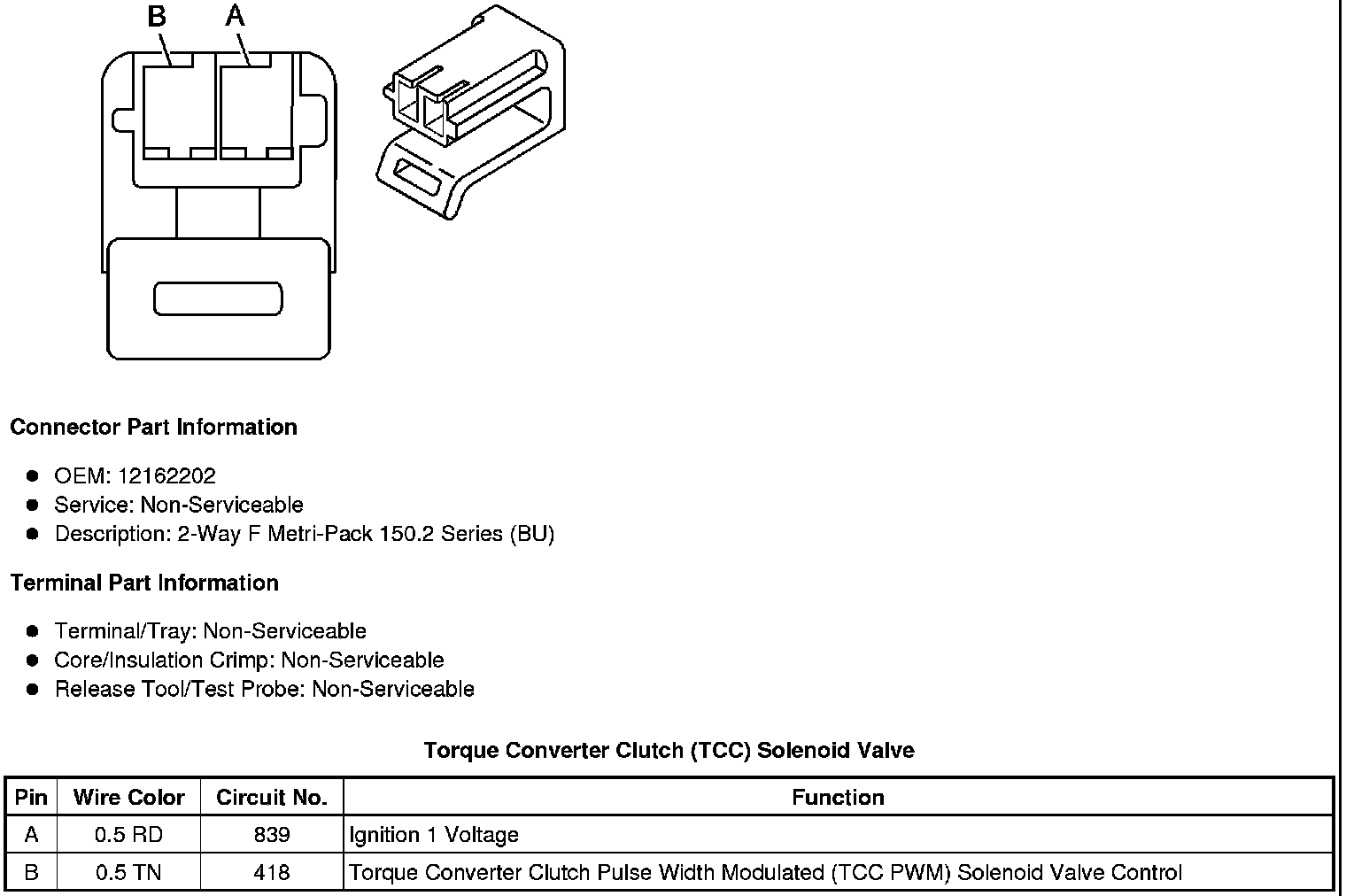

Torque Converter Clutch (TCC) Solenoid Valve

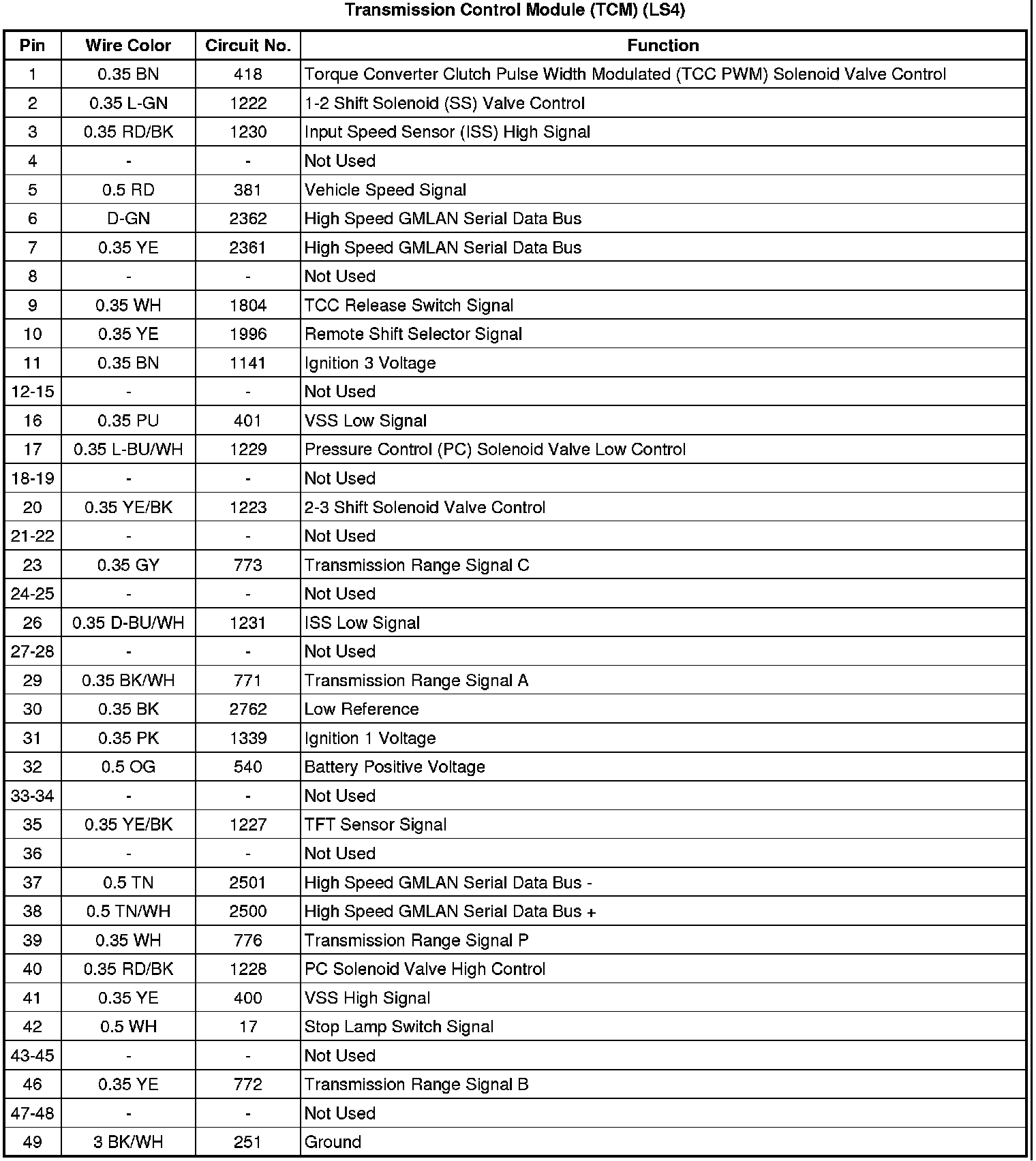

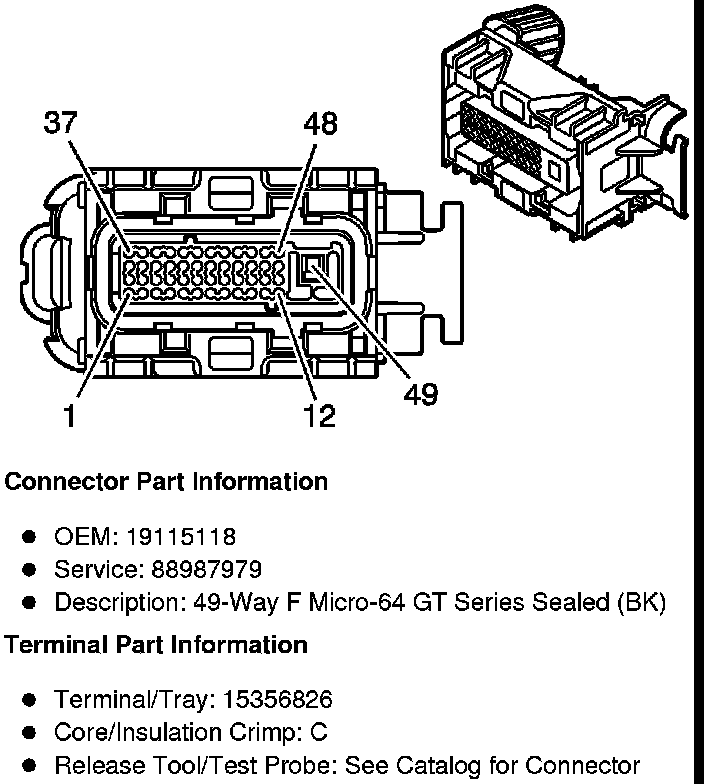

Transmission Control Module (TCM) (LS4 - 5.3L)

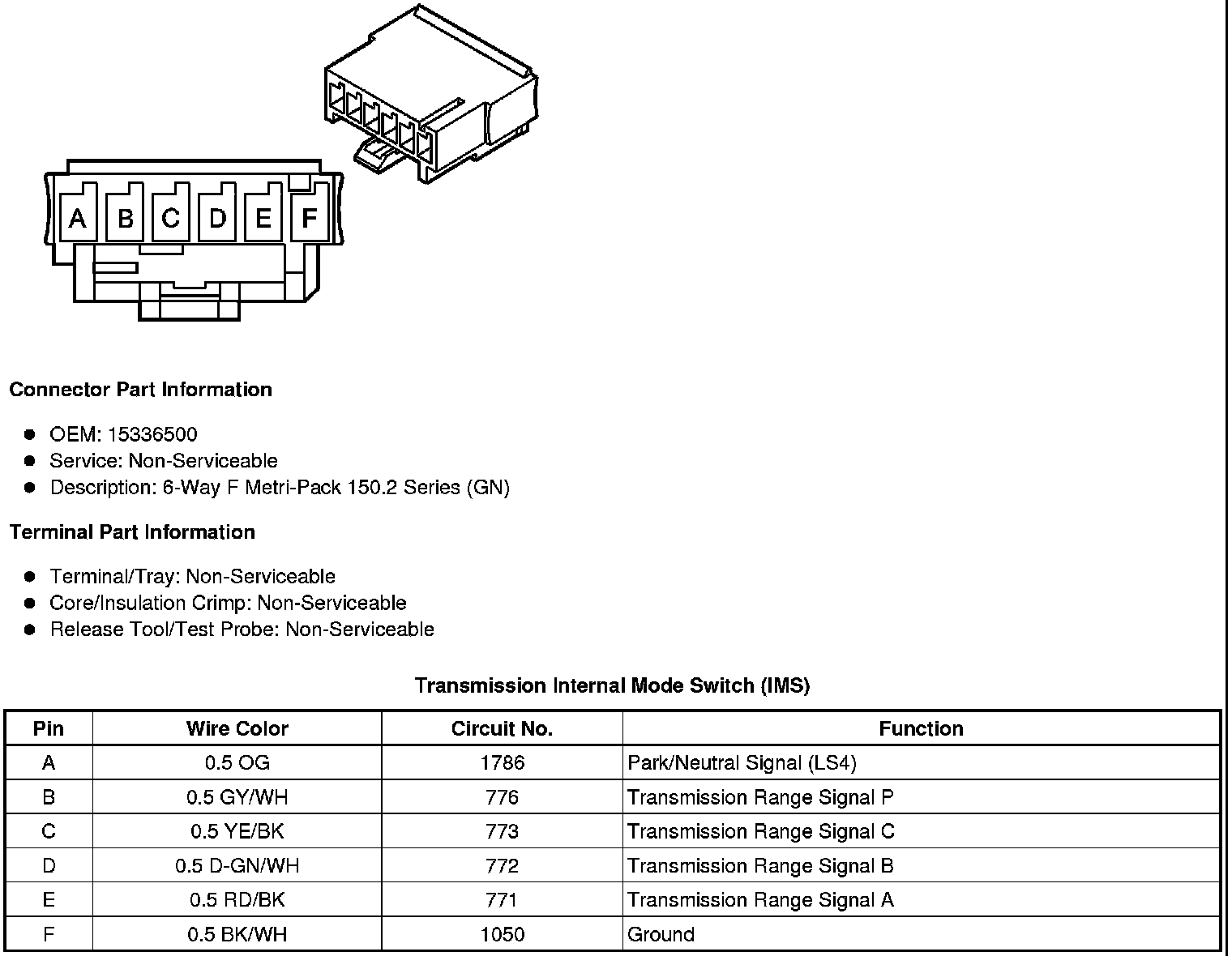

Transmission Internal Mode Switch (IMS)
