Engine, Cooling and Exhaust

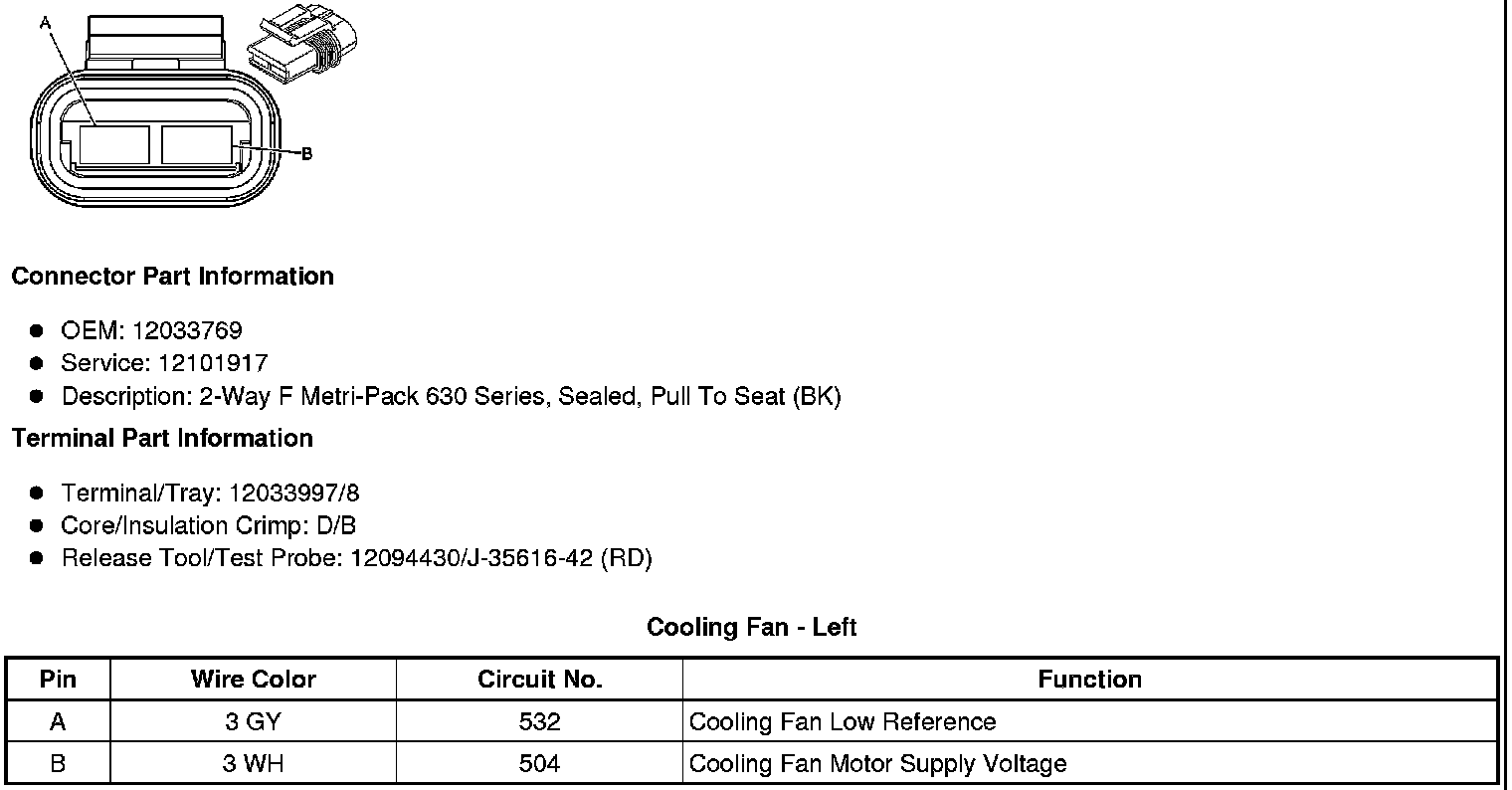

Cooling Fan - Left

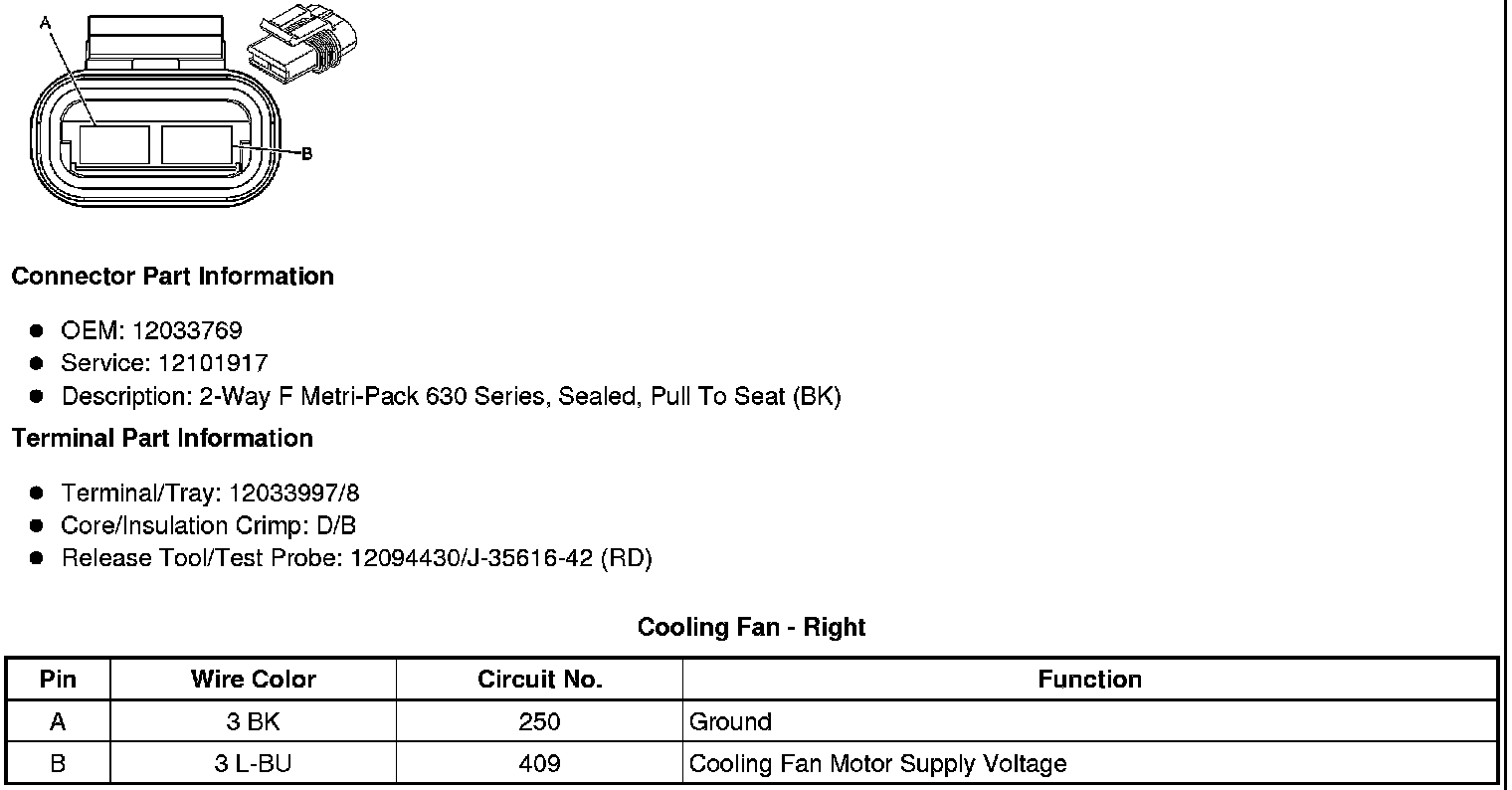

Cooling Fan - Right






Camshaft Position (CMP) Sensor (L26 - 3.8L)






Crankshaft Position (CKP) Sensor (L26 - 3.8L)






Engine Coolant Temperature (ECT) Sensor (L26 - 3.8L)






Engine Oil Level Switch (L26 - 3.8L)





Engine Oil Pressure (EOP) Switch (L26 - 3.8L)
