Home >> Pontiac >> 2008 >> Grand Prix V6-3.8L >> Repair and Diagnosis >> Diagrams >> Connector Views >> Canister Vent Valve

Canister Vent Valve

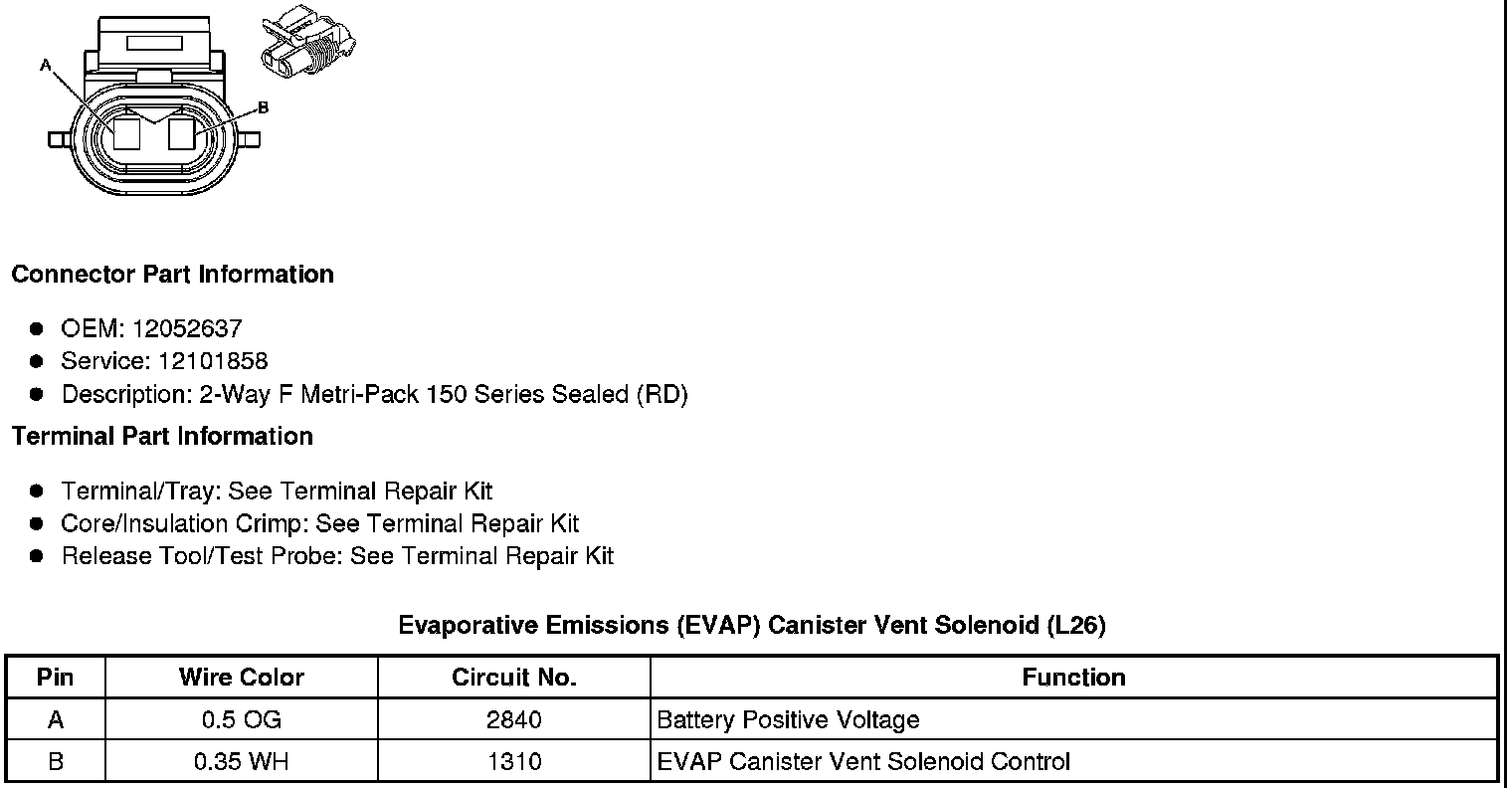

Evaporative Emissions (EVAP) Canister Vent Solenoid (L26)

Evaporative Emissions (EVAP) Canister Vent Solenoid (LS4 - 5.3L)
