Center Pillar Auxiliary Weatherstrip Replacement

Center Pillar Auxiliary Weatherstrip Replacement

Removal Procedure





1. Open both doors to the full open position.

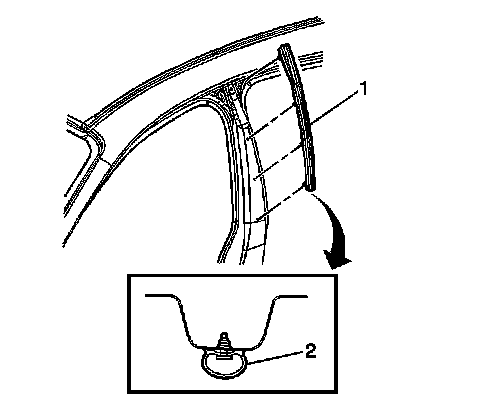

2. Pull the center pillar auxiliary sealing strip (1) from the body .
3. Remove the sealing strip retainers from the pillar.



Installation Procedure





1. Position the center pillar auxiliary sealing strip (1) to the pillar.
2. Push the retainers into the pillar.
3. Close both doors.
