Driver Seat Cushion Heater and Passenger Seat Cushion Heater Replacement

Driver Seat Cushion Heater and Passenger Seat Cushion Heater Replacement

Removal Procedure





1. Remove the seat cushion cover. Refer to Front Seat Cushion Cover Replacement (Front Seat Cushion Cover Replacement) .
2. Disconnect the electrical connector from the seat cushion heater .

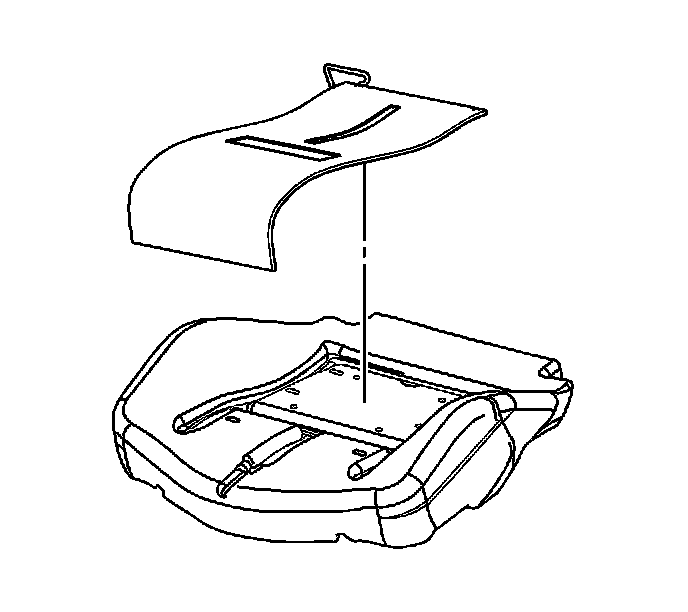

3. Gently pull on the heater element to remove the element from the seat foam. Be careful not to damage the foam pad.



Installation Procedure





1. Peel off the self-stick tape from the heater element.
2. Position the heater element over the seat foam pad. Press firmly to engage the adhesive.
3. Route and connect the electrical connector to the seat cushion heater .
4. Secure the wire with tie straps.
5. Install the seat cushion cover. Refer to Front Seat Cushion Cover Replacement (Front Seat Cushion Cover Replacement) .
