Inside Rearview Mirror Replacement

Inside Rearview Mirror Replacement

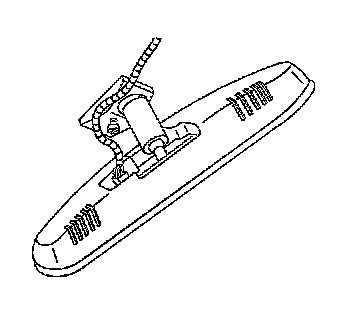

Removal Procedure





1. Disconnect the electrical connector from the rearview mirror, if equipped.




2. Remove the set screw from the rearview mirror.
3. Remove the rearview mirror from the mounting button.



Installation Procedure





1. Install the rearview mirror to the mounting button.

Notice: Refer to Fastener Notice (Fastener Notice) .

2. Install the set screw to the rearview mirror.

Tighten the screw to 2 N.m (18 lb in).





3. Connect the electrical connector to the rearview mirror, if equipped.
