Sunshade Anchor Replacement

Sunshade Anchor Replacement

Removal Procedure

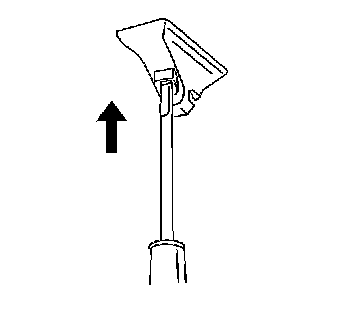

1. Remove the sunshade from the sunshade anchor.
2. Remove the screw from the sunshade anchor.
3. Remove the sunshade anchor from the roof.



Installation Procedure





1. Position the sunshade anchor to the roof.

Notice: Refer to Fastener Notice .

2. Install the screw to the sunshade anchor.

Tighten the sunshade anchor screw to 2 N.m (18 lb in).

3. Install the sunshade to the sunshade anchor.
