Pull Handle Replacement

Pull Handle Replacement

Removal Procedure





1. Remove the door trim panel. Refer to Front Side Door Trim Panel Replacement (Service and Repair) and to Rear Side Door Trim Panel Replacement (Service and Repair) .

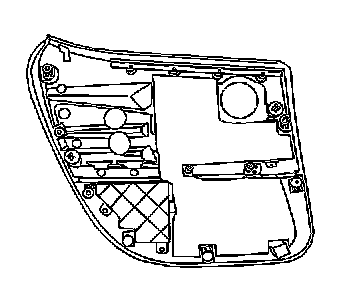

2. Pull back the insulating material to access the pull handle housing screws.
3. Remove the pull handle housing retaining screws.
4. Remove the pull handle.



Installation Procedure





1. Position the pull handle to the door trim panel.

Notice: Refer to Fastener Notice .

2. Install the pull handle housing screws.

Tighten the screws to 3 N.m (27 lb in).

3. Install the door trim panel. Refer to Front Side Door Trim Panel Replacement (Service and Repair) and to Rear Side Door Trim Panel Replacement (Service and Repair) .
