Instrument Panel Compartment Door Stop Replacement

Instrument Panel Compartment Door Stop Replacement

Removal Procedure





1. Open the instrument panel (I/P) compartment.
2. Disengage the compartment door stop using the following procedure:

1. Press the upper door stop (2) toward the center of the vehicle.
2. Rotate the door away from the compartment.

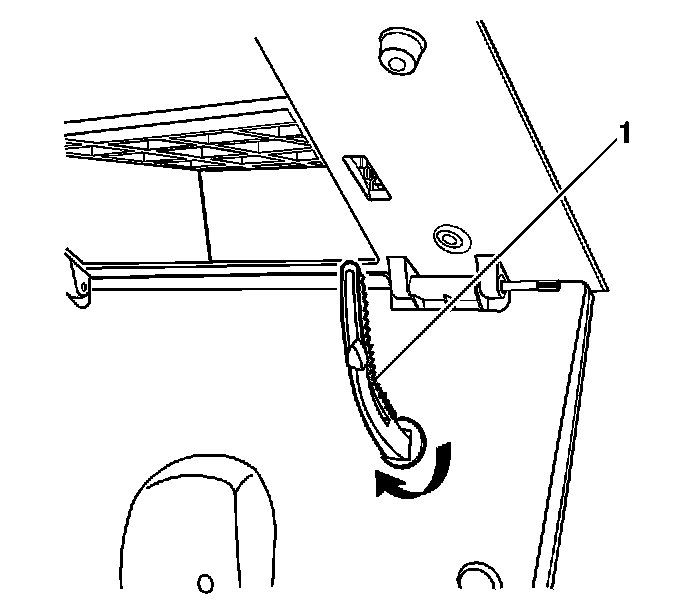

3. Rotate the door stop (1) to the right.




4. Remove the door stop (1).



Installation Procedure

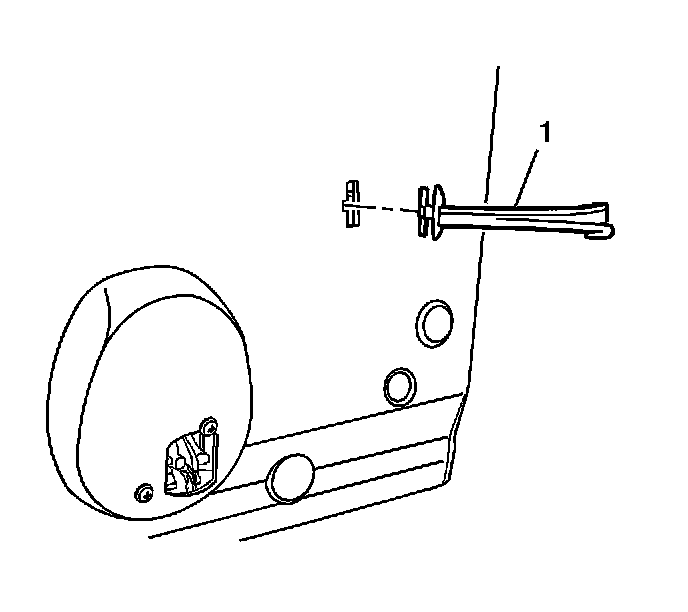

1. Position the door stop (1) to the I/P compartment door.




2. Rotate the door stop (1) to the left.




3. Engage the door stop using the following procedure:

1. Press the upper door stop (2) toward the center of the vehicle.
2. Rotate the door up to the compartment.

4. Close the I/P compartment.
