Instrument Panel Compartment Door Lock Striker Replacement

Instrument Panel Compartment Door Lock Striker Replacement

Removal Procedure





1. Open the instrument panel (I/P) compartment.

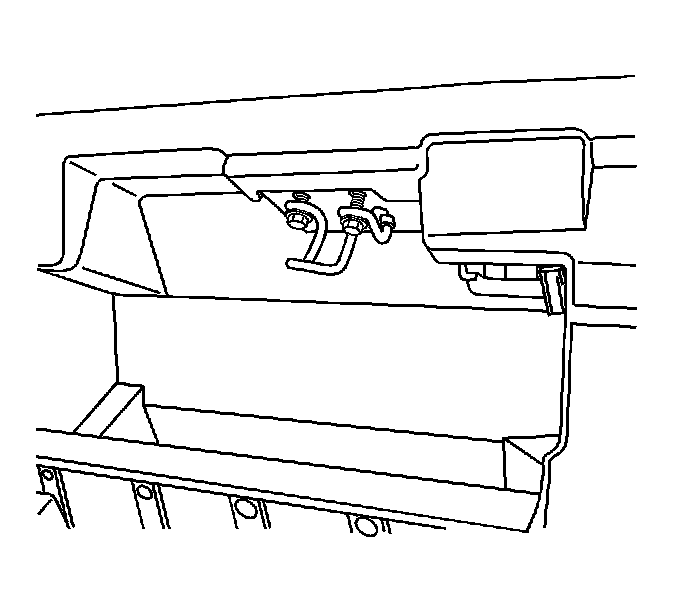

2. Remove the I/P compartment door latch striker screws.
3. Remove the I/P compartment door latch striker.



Installation Procedure






Notice: Refer to Fastener Notice (Fastener Notice) .

1. Install the I/P compartment door latch striker and screws.

Tighten the screws to 2 N.m (18 lb in).

2. Close the I/P compartment.
3. Inspect the I/P compartment door for the proper alignment. Adjust the I/P compartment door latch striker as necessary.
