Instrument Panel Compartment Door Latch Replacement

Instrument Panel Compartment Door Latch Replacement

Removal Procedure

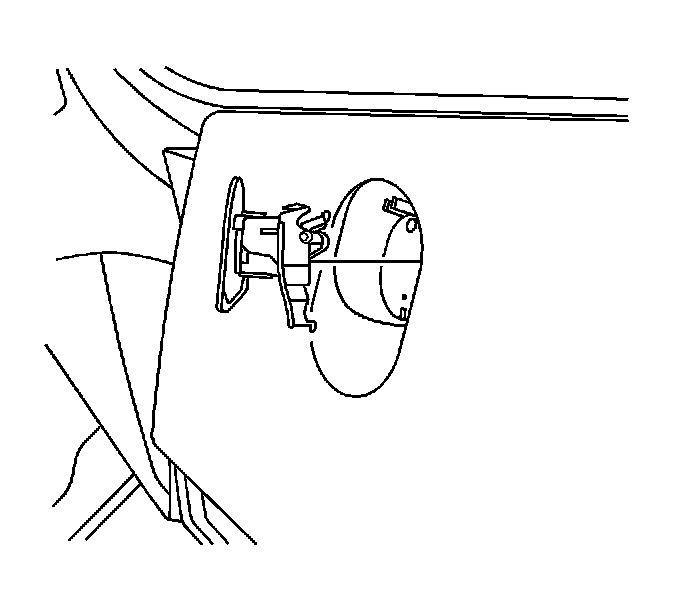

1. Open the instrument panel (I/P) compartment.

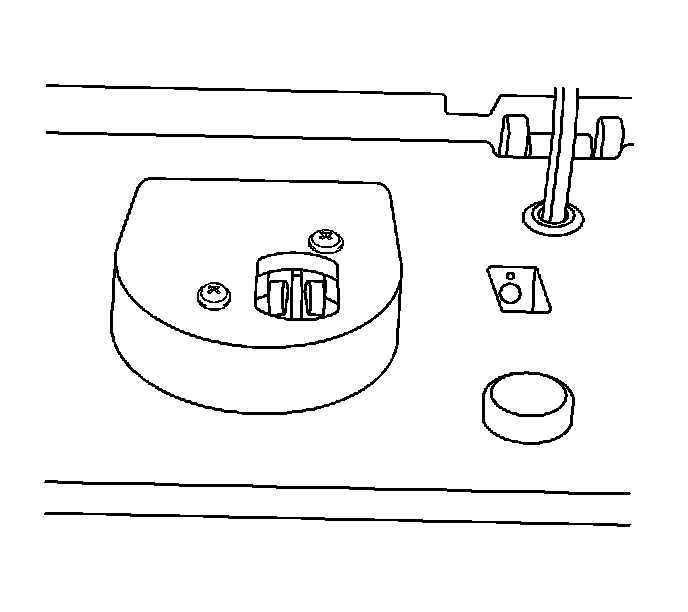

2. Remove the I/P compartment door latch screws.




3. Remove the I/P compartment door latch.



Installation Procedure





1. Align the I/P compartment door latch to the I/P compartment door.





Notice: Refer to Fastener Notice (Fastener Notice) .

2. Install the I/P compartment door latch screws.

Tighten the screws to 2 N.m (18 lb in).

3. Close the I/P compartment.
