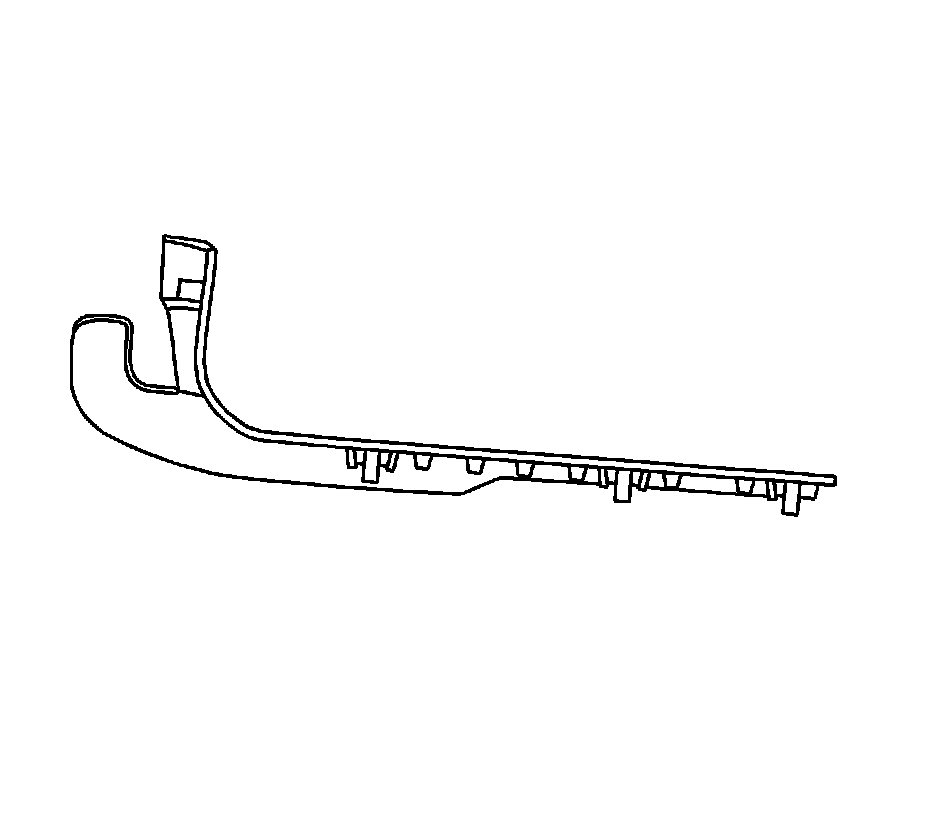

Front Carpet Retainer Replacement

Front Carpet Retainer Replacement

Tools Required

J 38778 Door Trim Pad and Garnish Clip Remover


Removal Procedure





1. Use J 38778 to disengage the clips on the carpet retainer.
2. Remove the carpet retainer from the vehicle.



Installation Procedure





1. Position the carpet retainer in the vehicle.
2. Press down to fully secure the retainer clips.
