Hood Rear Seal Replacement

Hood Rear Seal Replacement

Removal Procedure





1. Open the hood.

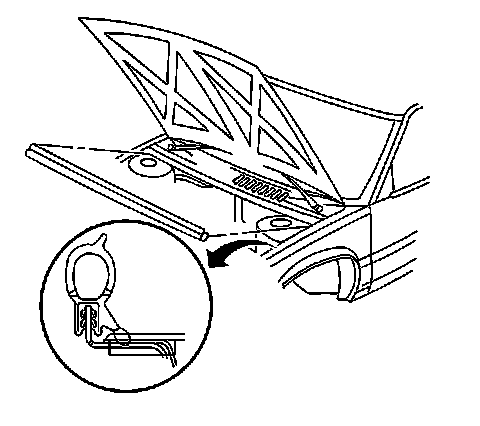

2. Pull the hood rear weather-strip from the pinch-weld flange.
3. Remove the hood rear weather-strip from the vehicle.



Installation Procedure





1. Install the hood rear weather-strip to the pinch-weld flange.
2. Press the hood rear weather-strip onto the pinch-weld flange.
3. Close the hood.
