Rear Bumper Impact Bar Replacement

Rear Bumper Impact Bar Replacement


Removal Procedure





1.Remove the rear bumper fascia. Refer to Rear Bumper Fascia Replacement Rear Bumper Fascia Replacement .

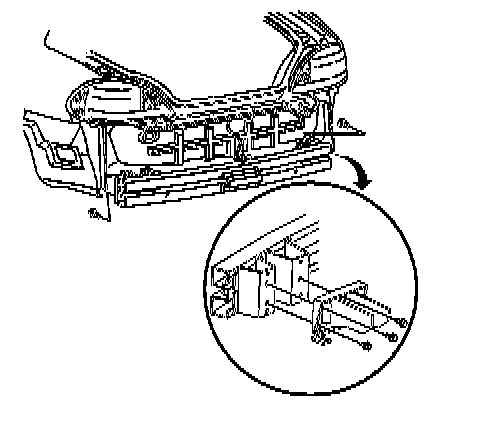

2.Remove the bolts from the rear bumper impact bar.

3.Remove the rear bumper impact bar from the vehicle.

Installation Procedure





1.Align the rear bumper impact bar to the vehicle.

Notice:Refer to Fastener Notice .

2.Install the bolts to the rear bumper impact bar.

TightenTighten the rear bumper impact bar bolts to 25 N �m (18 lb ft).

3.Install the rear bumper fascia. Refer to Rear Bumper Fascia Replacement Rear Bumper Fascia Replacement .
