Rear Bumper Fascia Outer Support Replacement

Rear Bumper Fascia Outer Support Replacement

Tools Required
J 38778 Door Trim Pad and Garnish Clip Remover
Removal Procedure





1.Remove the rear bumper fascia. Refer to Rear Bumper Fascia Replacement Rear Bumper Fascia Replacement .

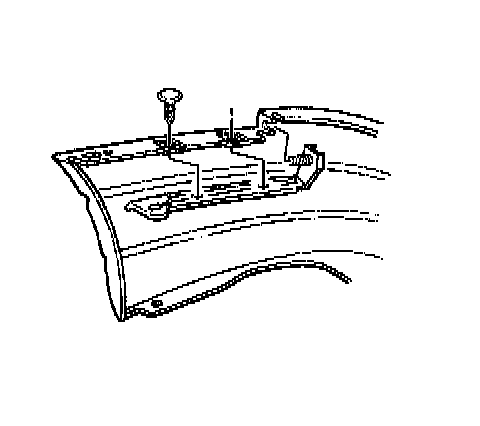

2.Remove the push-in retainers from the rear bumper fascia to the rear bumper fascia support. using J 38778 .

3.Remove the rear bumper fascia support.

Installation Procedure





1.Install the rear bumper fascia support.

2.Install the push-in retainers attaching the rear bumper fascia to the rear bumper fascia support.

3.Install the rear bumper fascia. Refer to Rear Bumper Fascia Replacement Rear Bumper Fascia Replacement .
