Radio Rear Speaker Grille Replacement

Radio Rear Speaker Grille Replacement

Removal Procedure





1. Remove the rear window shelf trim panel. Refer to Rear Window Shelf Trim Panel Replacement (Service and Repair) .

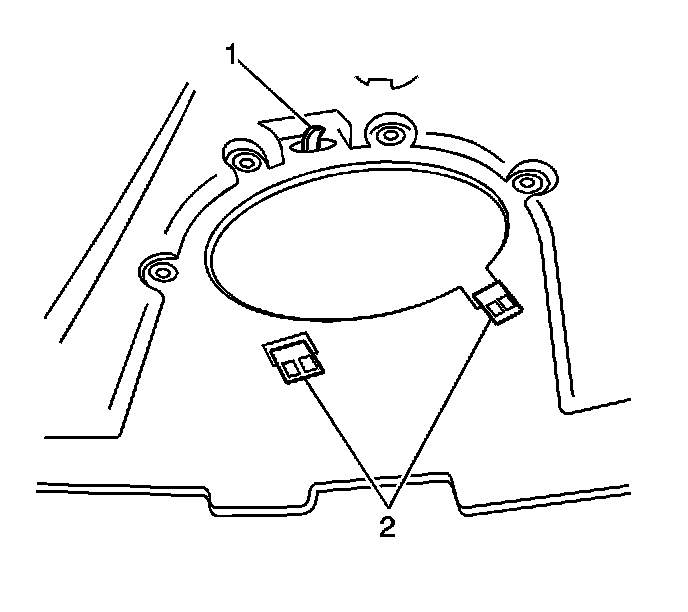

2. Release the rear speaker grille retainer (1).
3. Remove the rear speaker grille.



Installation Procedure





1. Install the rear speaker grille to the rear window shelf trim panel. Ensure the retainer (1) is completely engaged.
2. Install the rear window shelf trim panel. Refer to Rear Window Shelf Trim Panel Replacement (Service and Repair) .
