Radio Front Side Door Upper Speaker Replacement

Radio Front Side Door Upper Speaker Replacement

Removal Procedure





1. Remove the front door trim panel. Refer to Front Side Door Trim Panel Replacement (Service and Repair) .

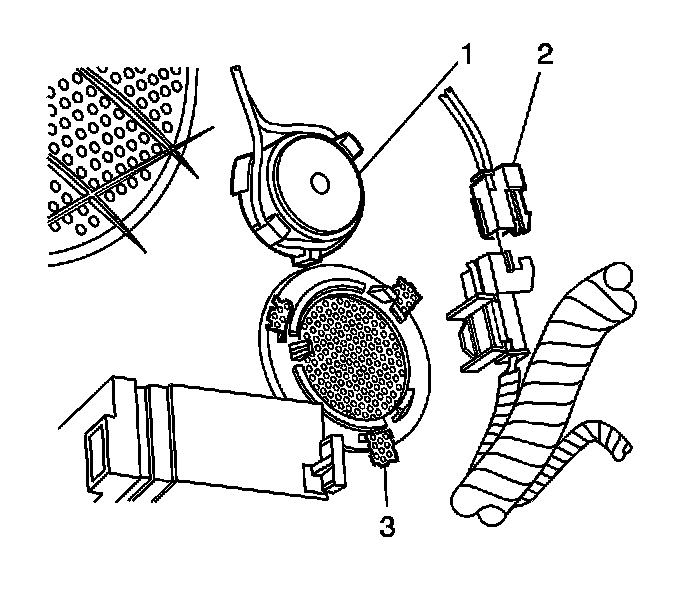

2. Remove the speaker electric wire connector (2).

Important: Note the orientation of the front speaker to the retainers before removal.


3. Press outward on the 3 retaining fingers and remove the speaker from the trim panel.



Installation Procedure





1. Align the speaker to the retainers on the front door trim panel, as noted before removal.
2. Press inward to seat the speaker on the 3 retaining fingers.
3. Install the speaker wire electrical connector (2).
4. Install the front door trim panel. Refer to Front Side Door Trim Panel Replacement (Service and Repair) .
