Home >> Pontiac >> 2008 >> Grand Prix V6-3.8L >> Repair and Diagnosis >> Accessories and Optional Equipment >> Diagrams >> Electrical Diagrams >> Steering Wheel Secondary/Configurable Control Diagrams

Steering Wheel Secondary/Configurable Control Diagrams

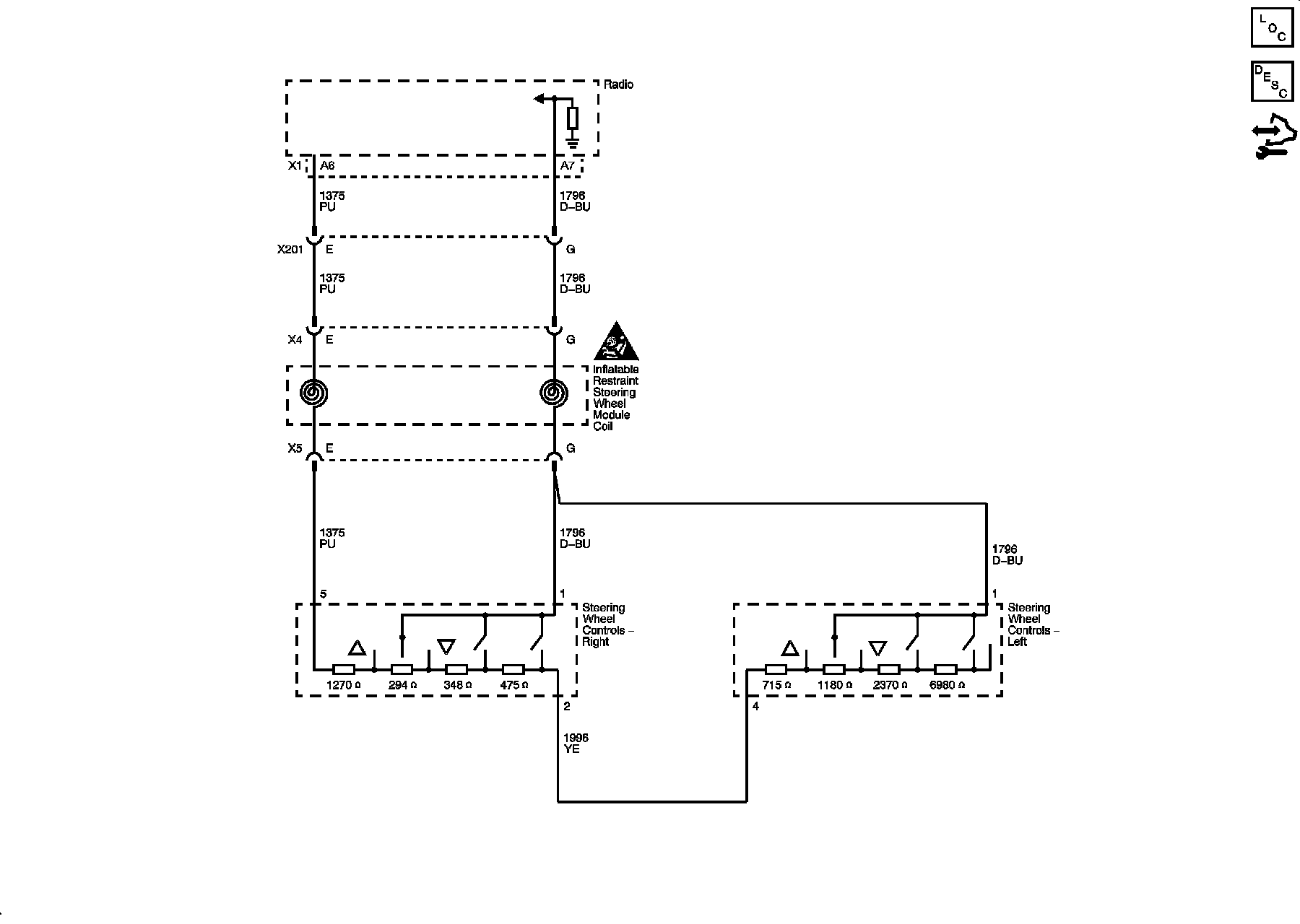

Steering Wheel Secondary/Configurable Control Schematics

Steering Wheel Controls
