Radio/Navigation System Diagrams
Radio/Navigation System Schematics

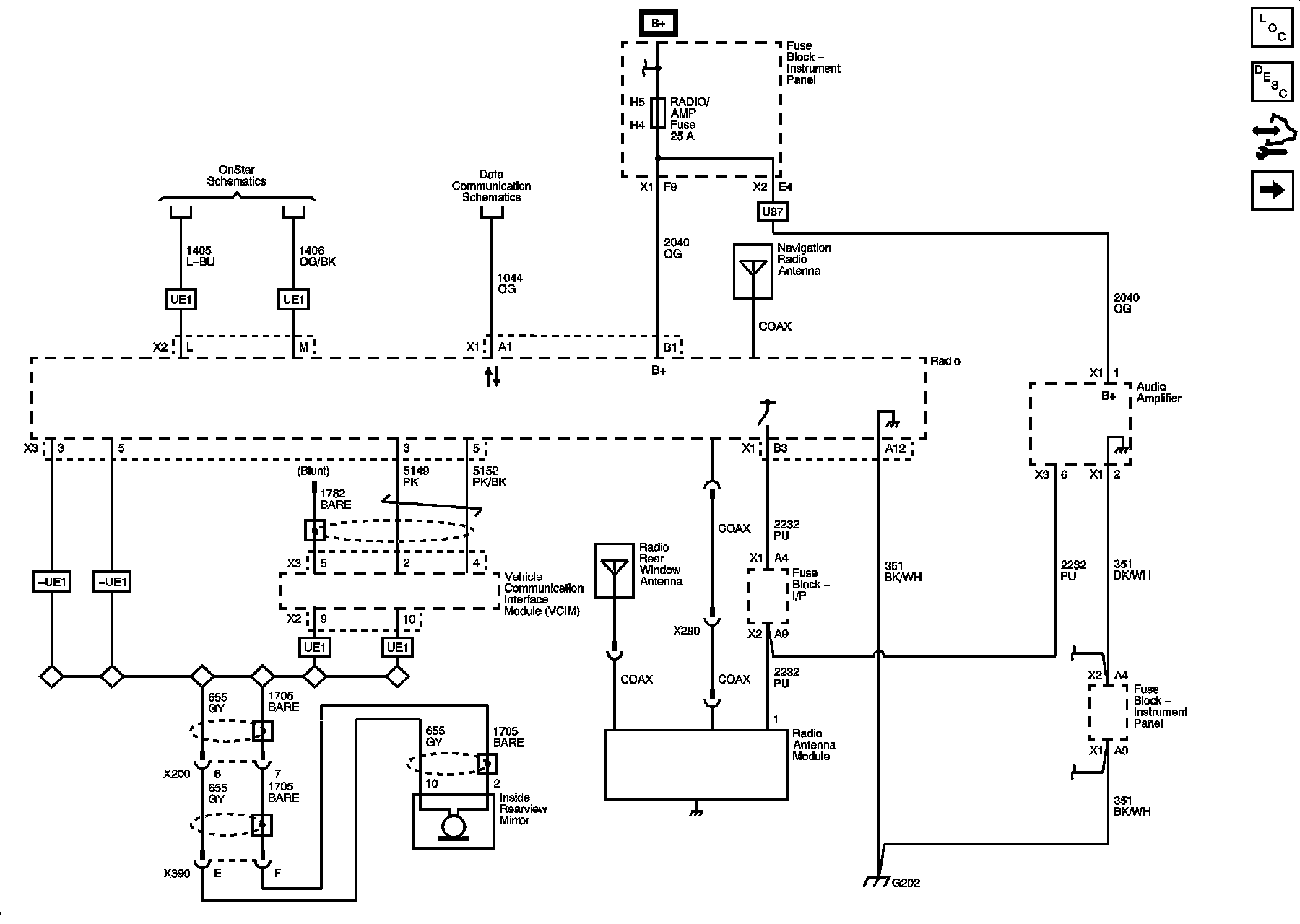

Power, Ground, and References

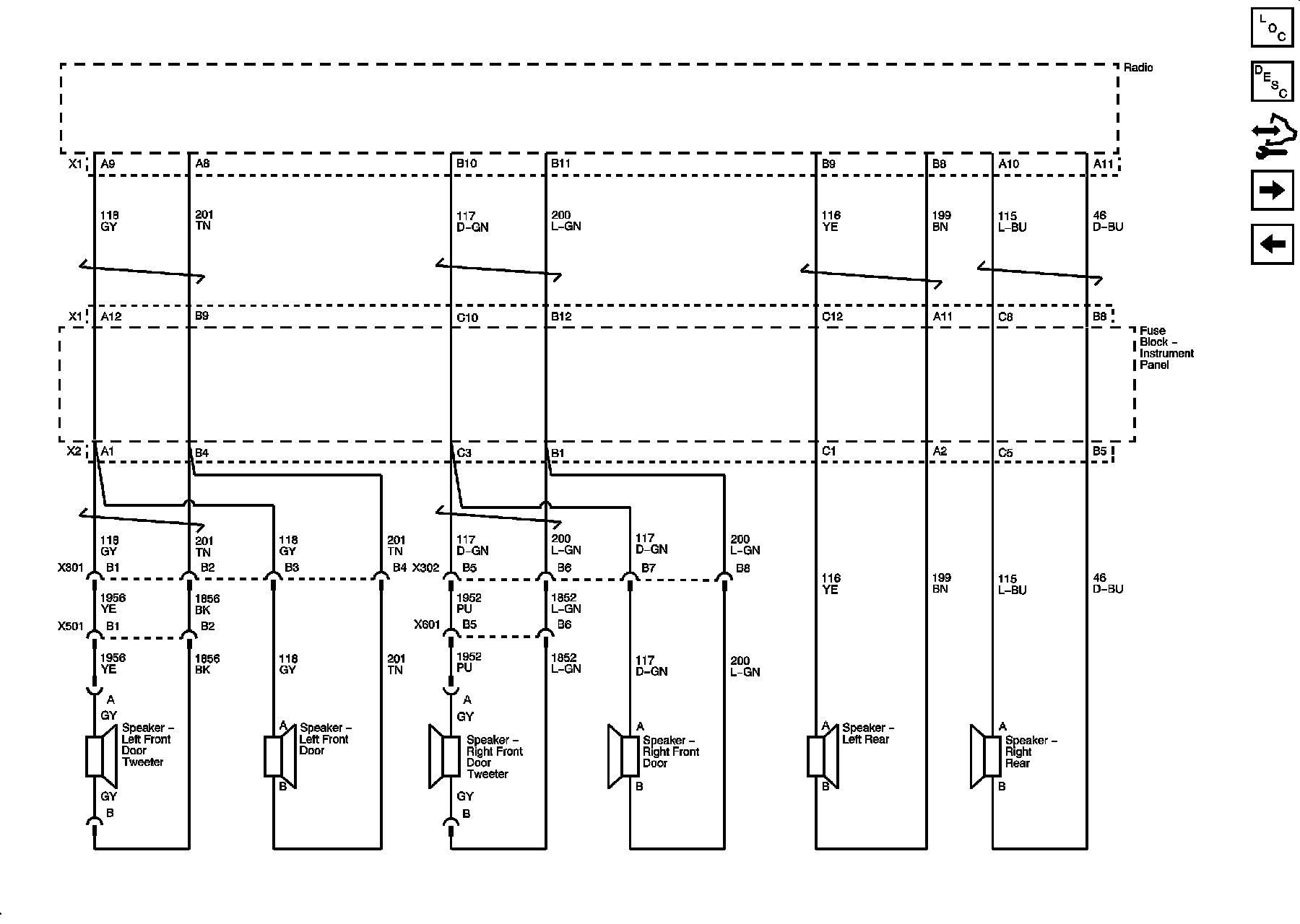

Radio to Speakers - UW6

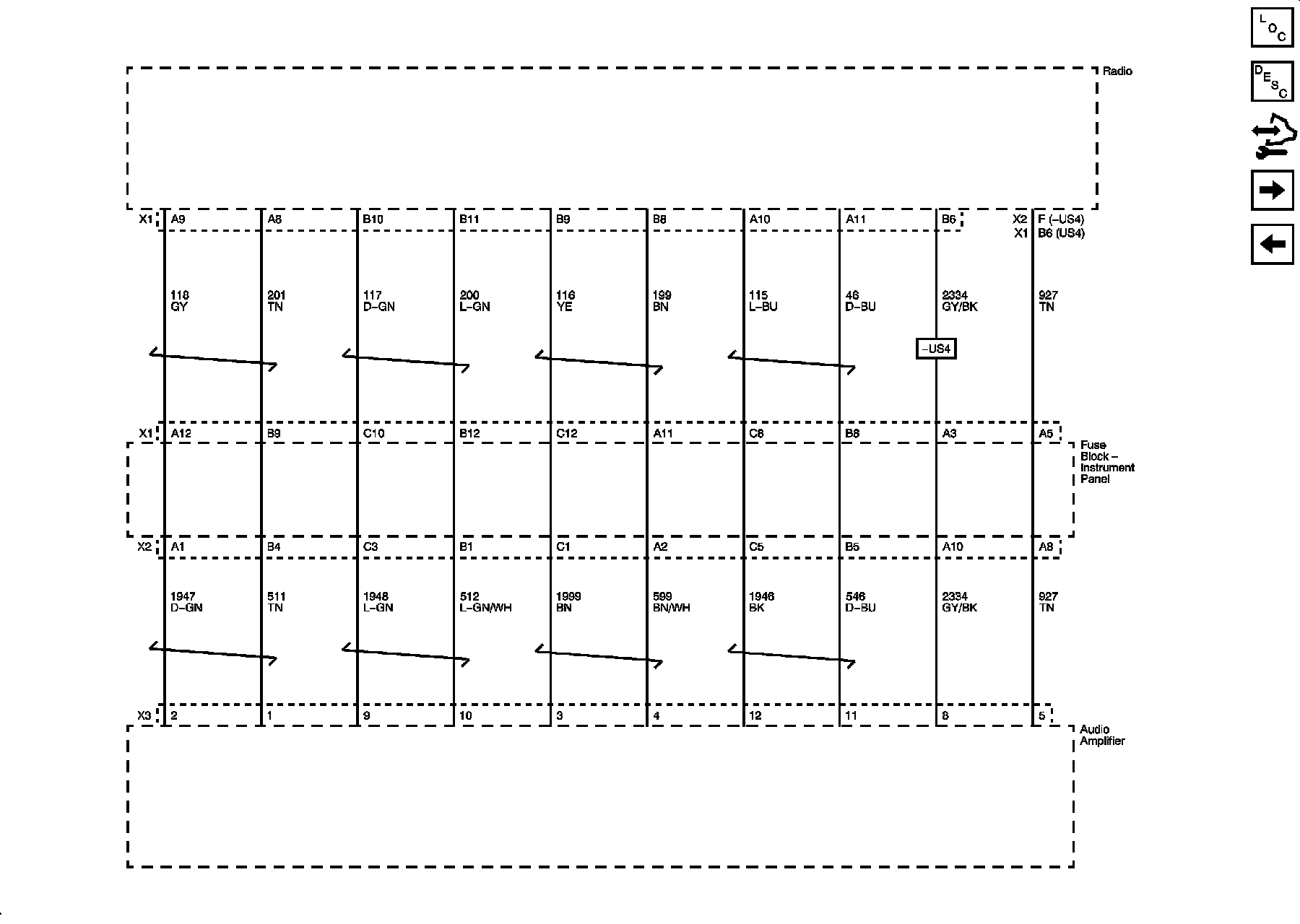

Audio Signal Communication - U87

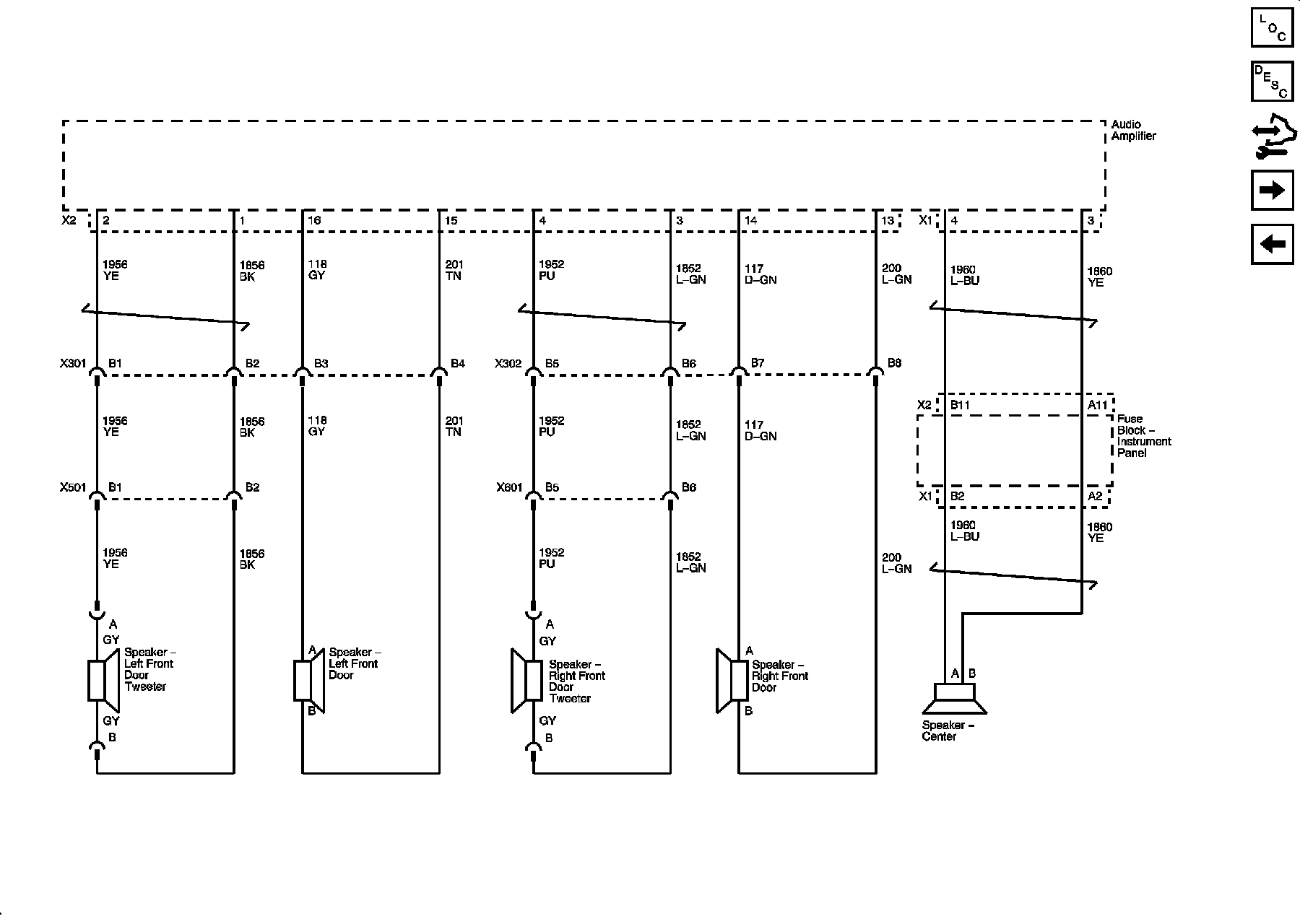

Speakers - Front - U87

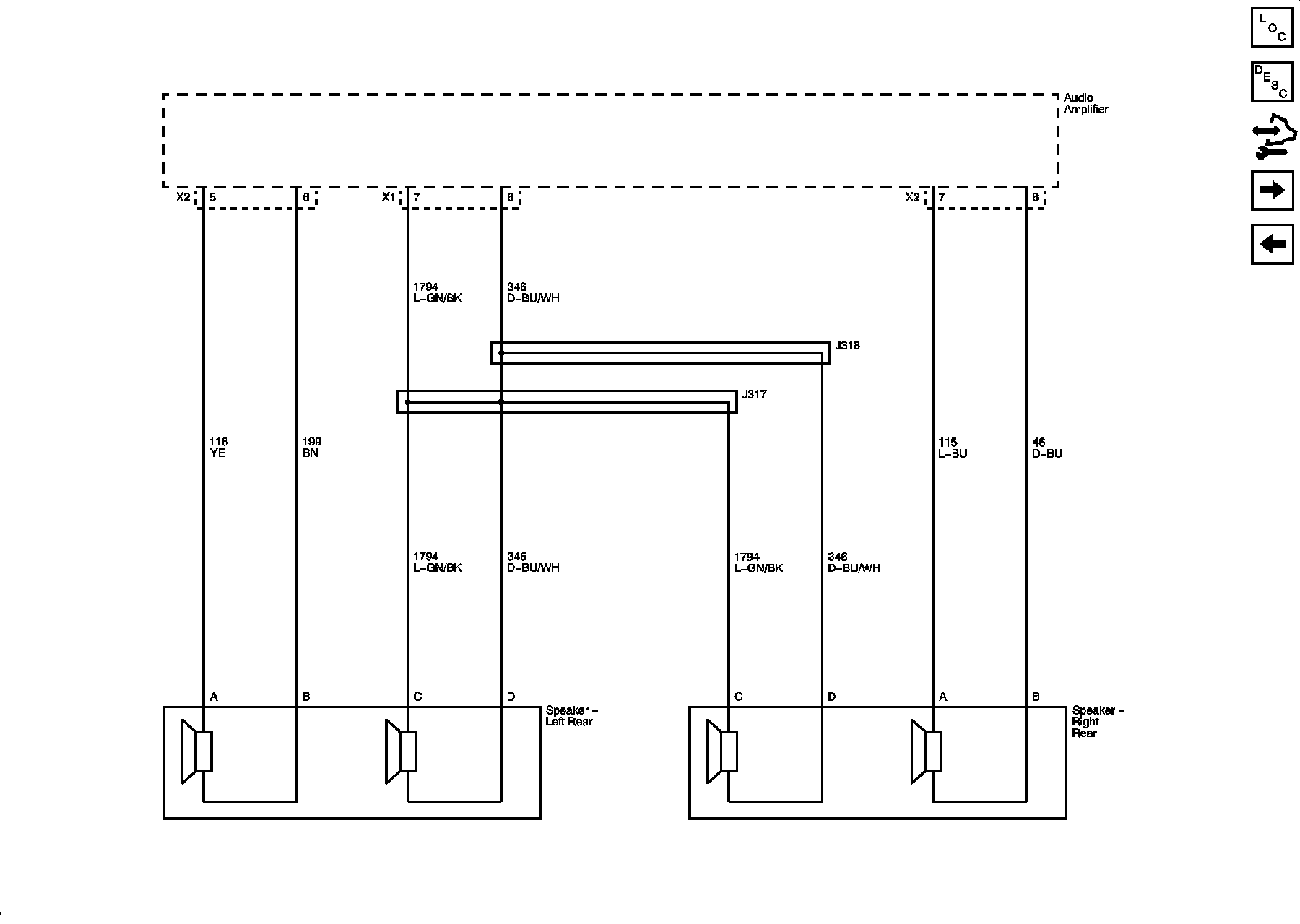

Speakers - Rear - U87

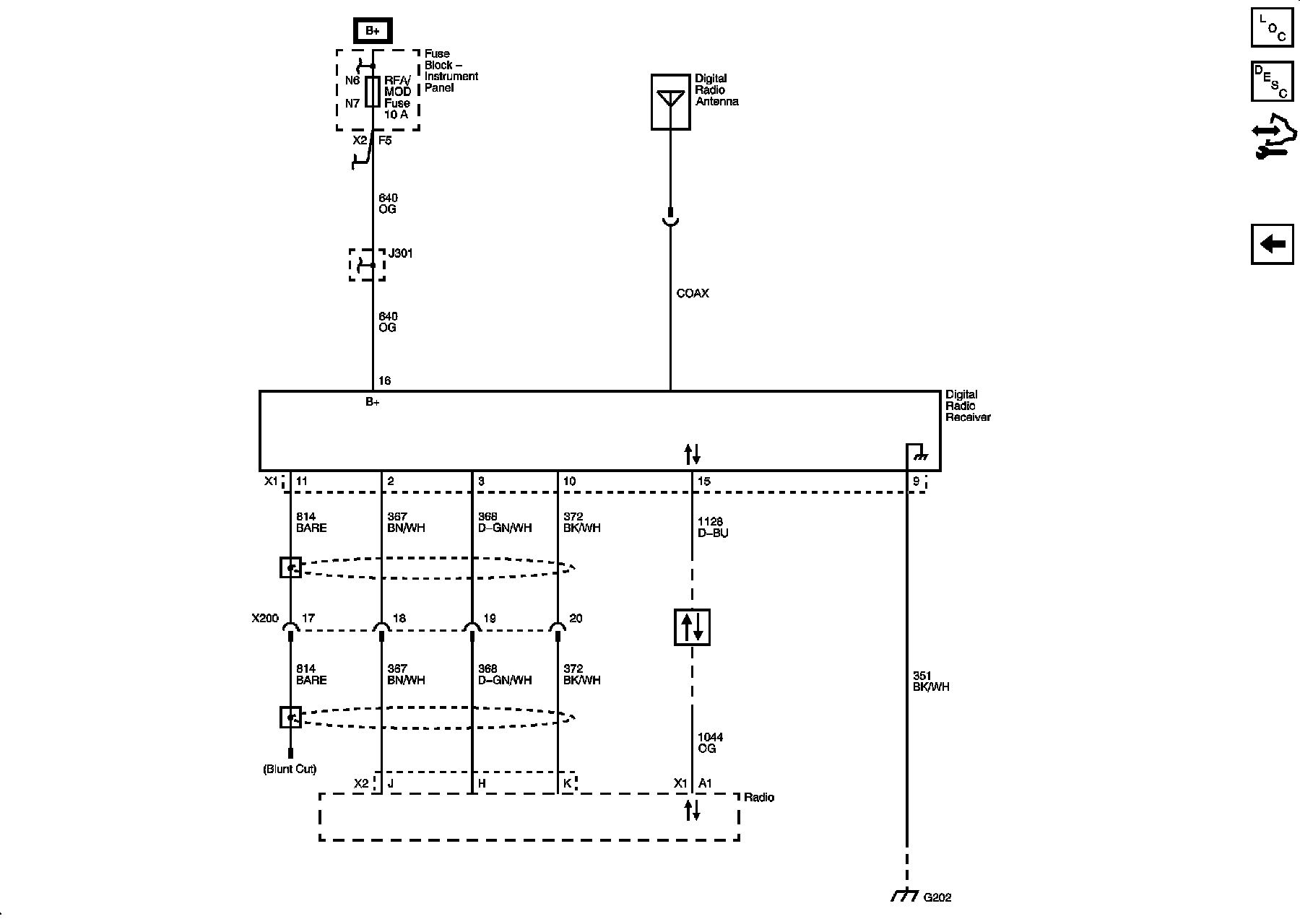

Satellite Radio - U2K
Radio/Navigation System Schematics
Power, Ground, and References
Radio to Speakers - UW6
Audio Signal Communication - U87
Speakers - Front - U87
Speakers - Rear - U87
Satellite Radio - U2K
