Vehicle Location Antenna Module Bracket Replacement

Vehicle Location Antenna Module Bracket Replacement

Removal Procedure





1. Remove the instrument panel (I/P) trim pad. Refer to Instrument Panel Trim Pad Replacement (Service and Repair) .

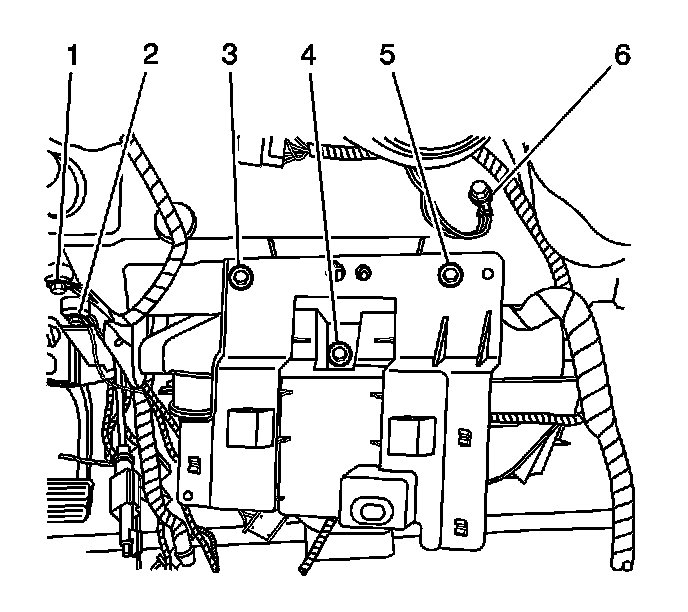

2. Remove the vehicle location antenna module bracket bolts (3, 4, 5).
3. Remove the communication interface module screws.
4. Lower the communication interface module to the floor.

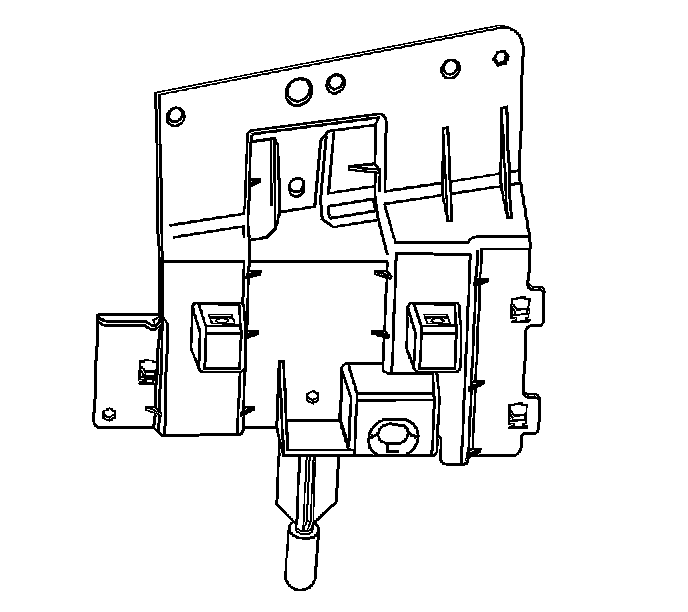

5. Remove the vehicle location antenna module bracket.



Installation Procedure





1. Align the communication interface module to the vehicle location antenna module bracket.

Notice: Refer to Fastener Notice (Fastener Notice) .

2. Install the communication interface module screws.

Tighten the screws to 2 N.m (18 lb in).





3. Align the vehicle location antenna module bracket to the locator on the I/P carrier (cross car beam).
4. Start the bolts by hand to avoid cross threading. Install the vehicle location antenna module bracket bolts (3, 4, 5).

Tighten the bolts to 10 N.m (89 lb in).

5. Install the I/P trim pad. Refer to Instrument Panel Trim Pad Replacement (Service and Repair) .
