Removal Procedure

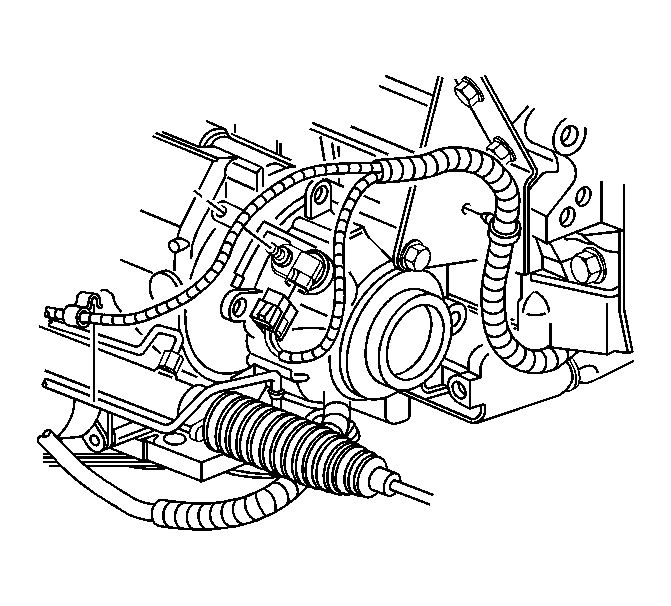

    Fig 1: VSS Electrical Connector
    GM1248567Courtesy of GENERAL MOTORS CORP.
  1. Raise and support the vehicle. Refer to Lifting and Jacking the Vehicle .
  2. Remove the right front tire and wheel. Refer to Tire and Wheel Removal and Installation .
  3. Disconnect the vehicle speed sensor (VSS) electrical connector.
  4. Remove wiring harness retainer from stud.
    5. Fig 2: VSS & Extension Case
    GM1248553Courtesy of GENERAL MOTORS CORP.
  5. Remove the VSS stud (9).
  6. Remove the VSS (10) from the extension case.
    7. Fig 3: View Of VSS & O-Ring
    GM10711Courtesy of GENERAL MOTORS CORP.
  7. Remove the O-ring (11) from the VSS (10).
