Automatic Transmission Controls Schematics

Fig 1: Power, Ground, and Serial Data - Schematic

Courtesy of GENERAL MOTORS CORP.

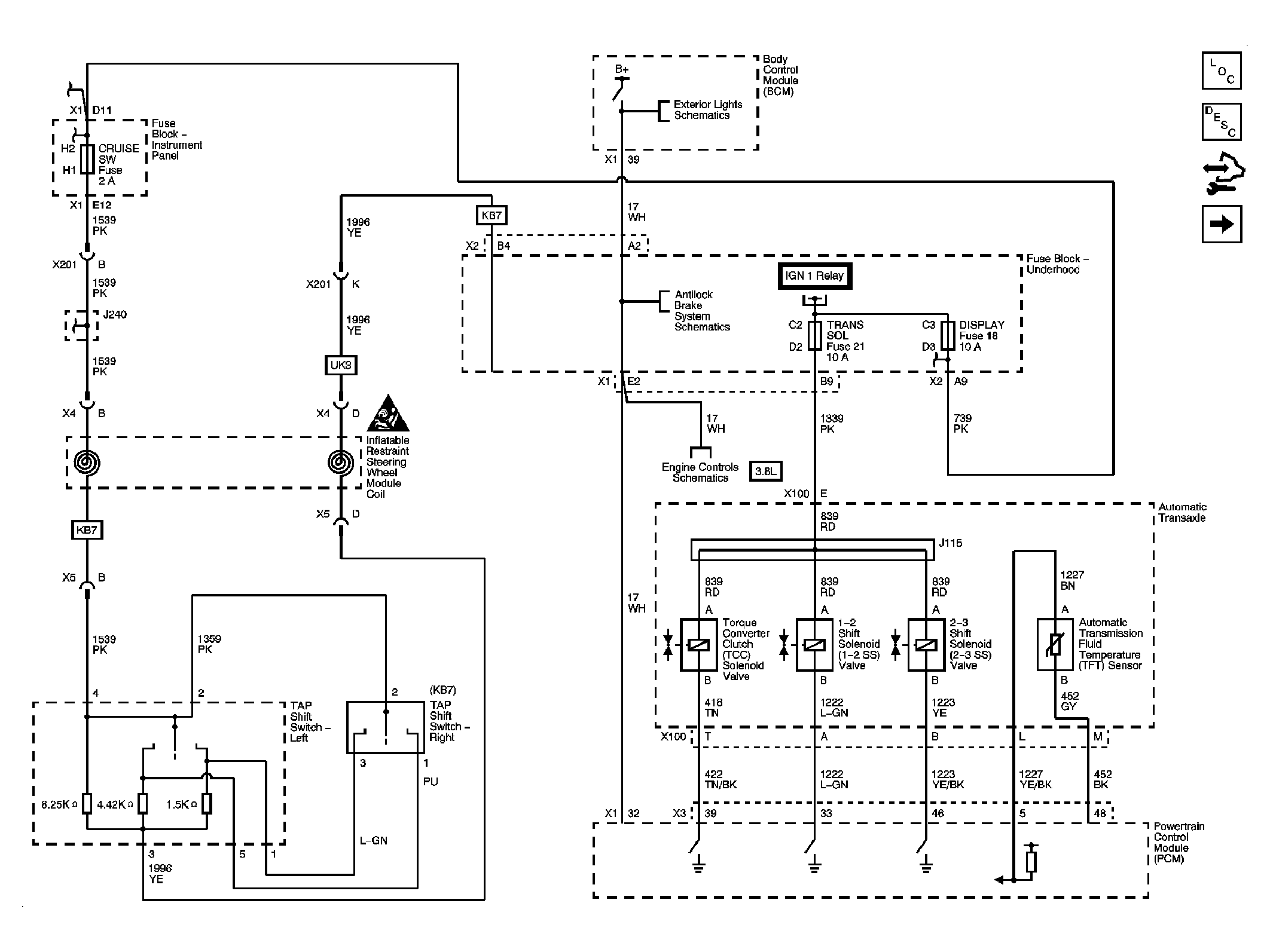

Fig 2: Tap Shift Switches, Stop Lamp Signal, TFT Sensor and TCC Shift Solenoids - Schematic

Courtesy of GENERAL MOTORS CORP.

Fig 3: VSS and AT Sensors, Pressure Control Solenoid Valve and TCC Release Switch - Schematic

Courtesy of GENERAL MOTORS CORP.

Fig 4: PRNDL and IMS Switch - Schematic

Courtesy of GENERAL MOTORS CORP.

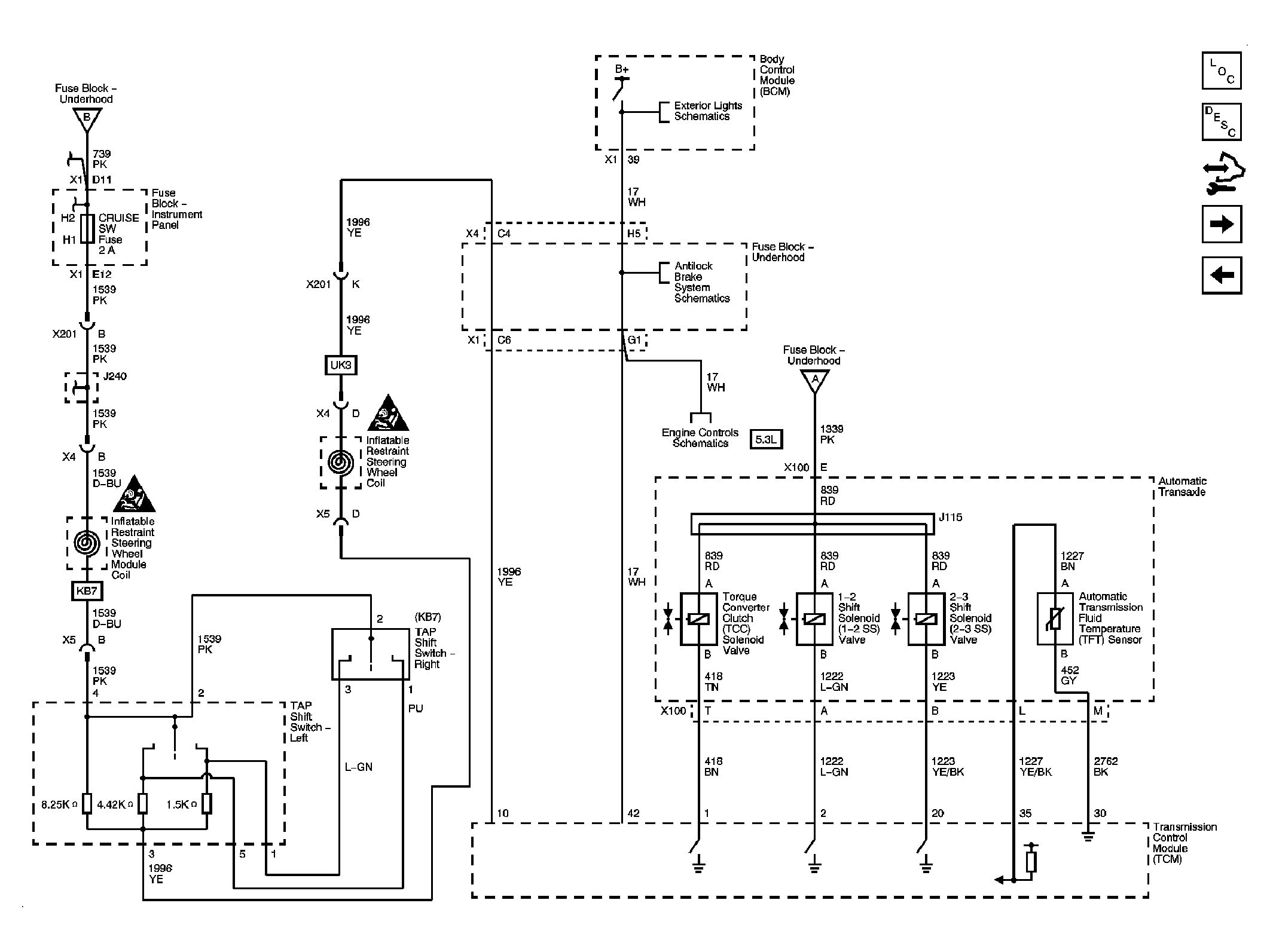

Fig 5: Tap Shift Switches, Stop Lamp Signal, TFT Sensor and TCC, Shift Solenoids - Schematic

Courtesy of GENERAL MOTORS CORP.

Fig 6: VSS and AT ISS Sensors, Pressure Control Solenoid Valve, and TCC Release Switch - Schematic

Courtesy of GENERAL MOTORS CORP.

Fig 7: PRNDL and IMS Switch - Schematic

Courtesy of GENERAL MOTORS CORP.
