SIR Schematics

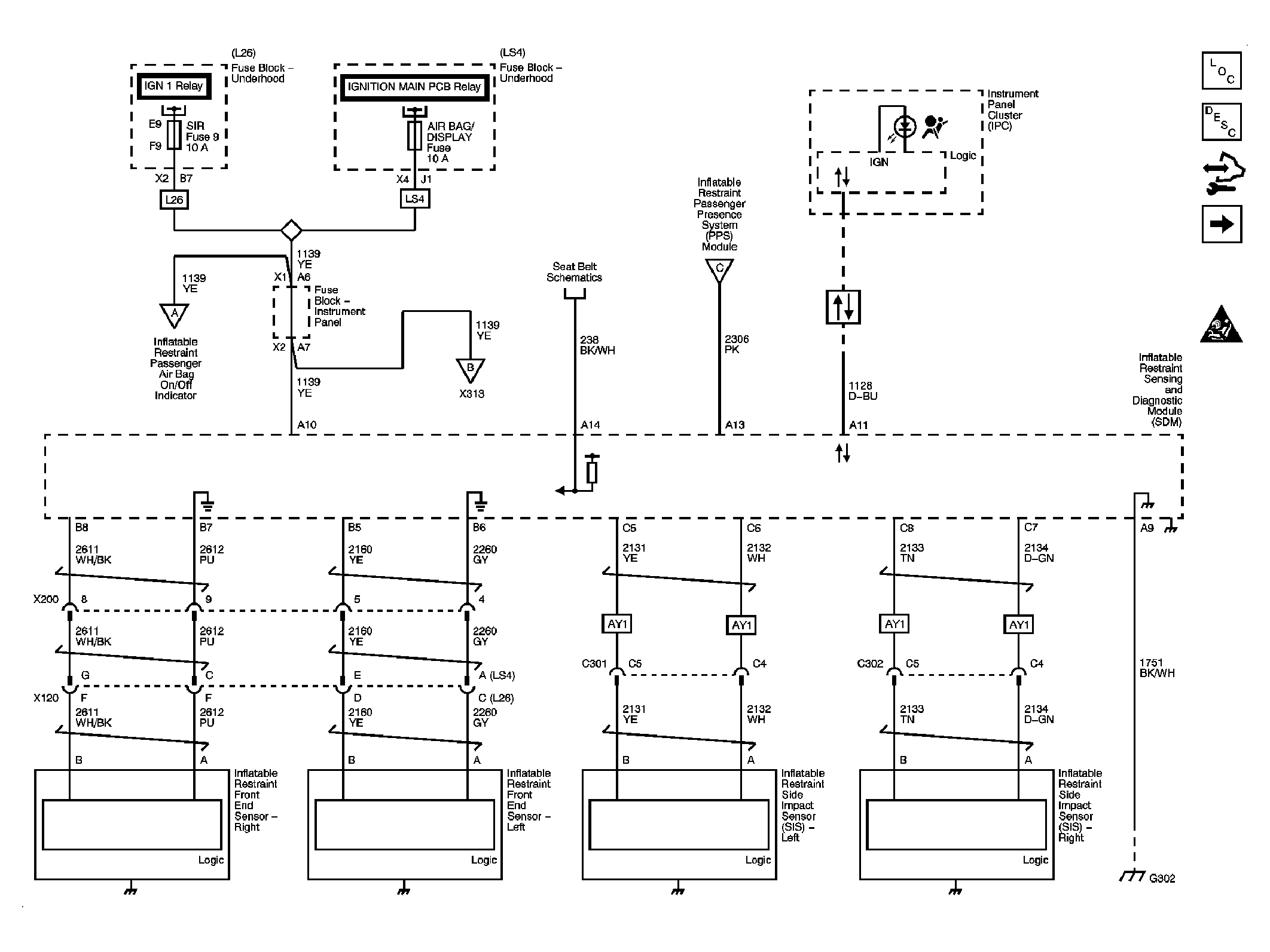

Fig 1: Power, Ground, DLC, Indicators, Sensors and References - Schematic
GM1888765Courtesy of GENERAL MOTORS CORP.

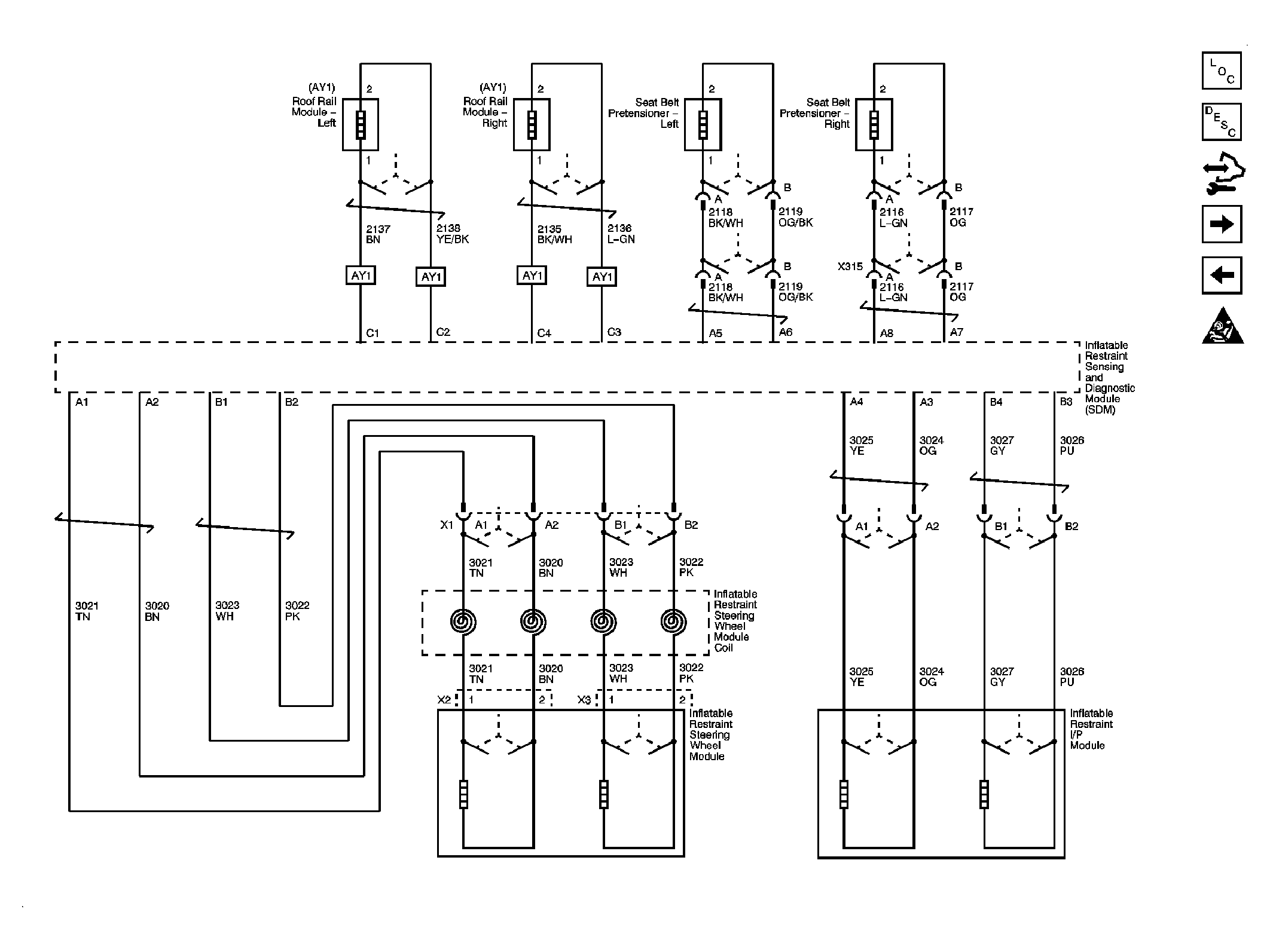

Fig 2: Deployment Loops - Schematic
GM1888769Courtesy of GENERAL MOTORS CORP.

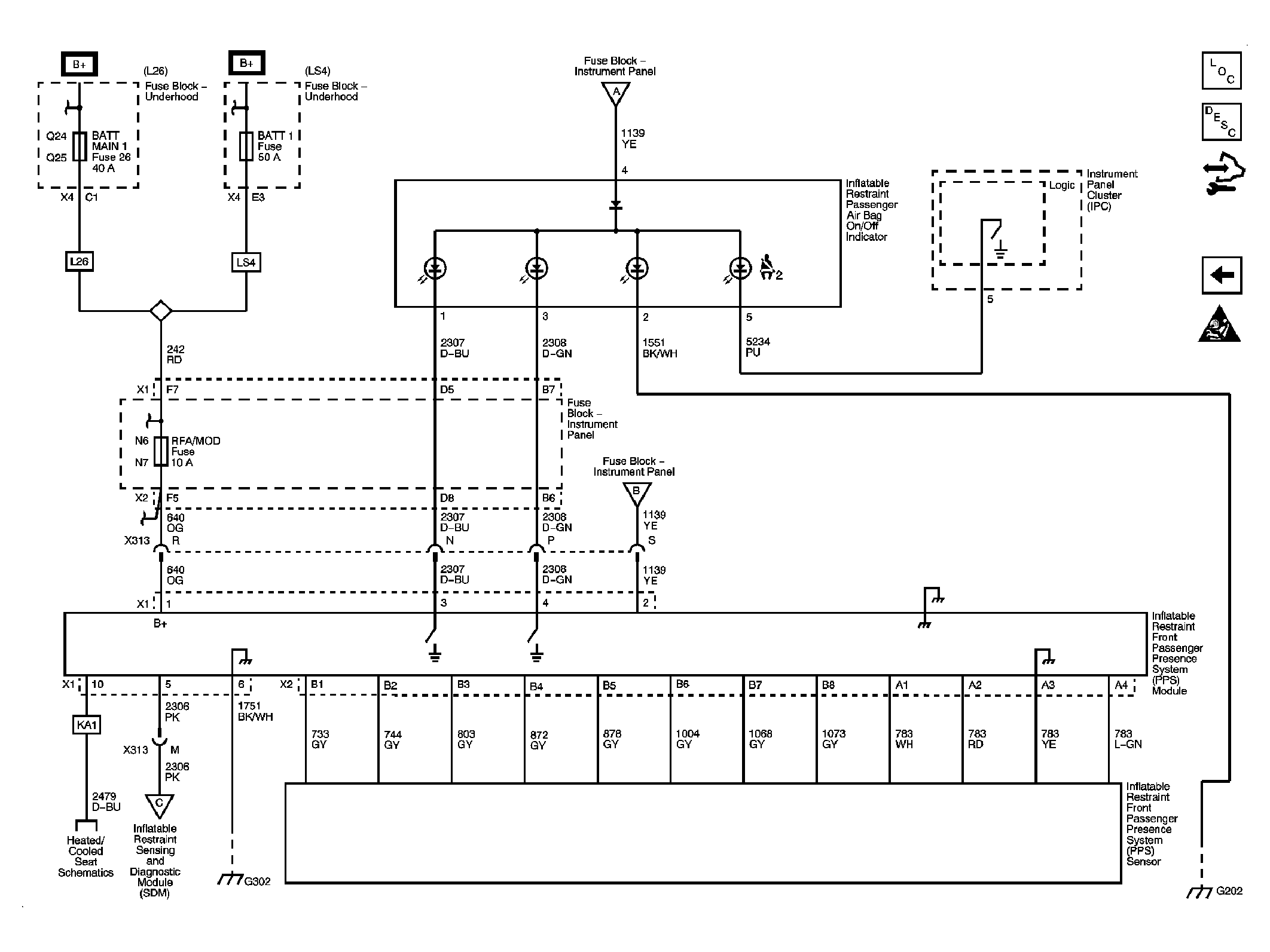

Fig 3: Passenger Presence System - Schematic
GM1888770Courtesy of GENERAL MOTORS CORP.
