HVAC Schematics

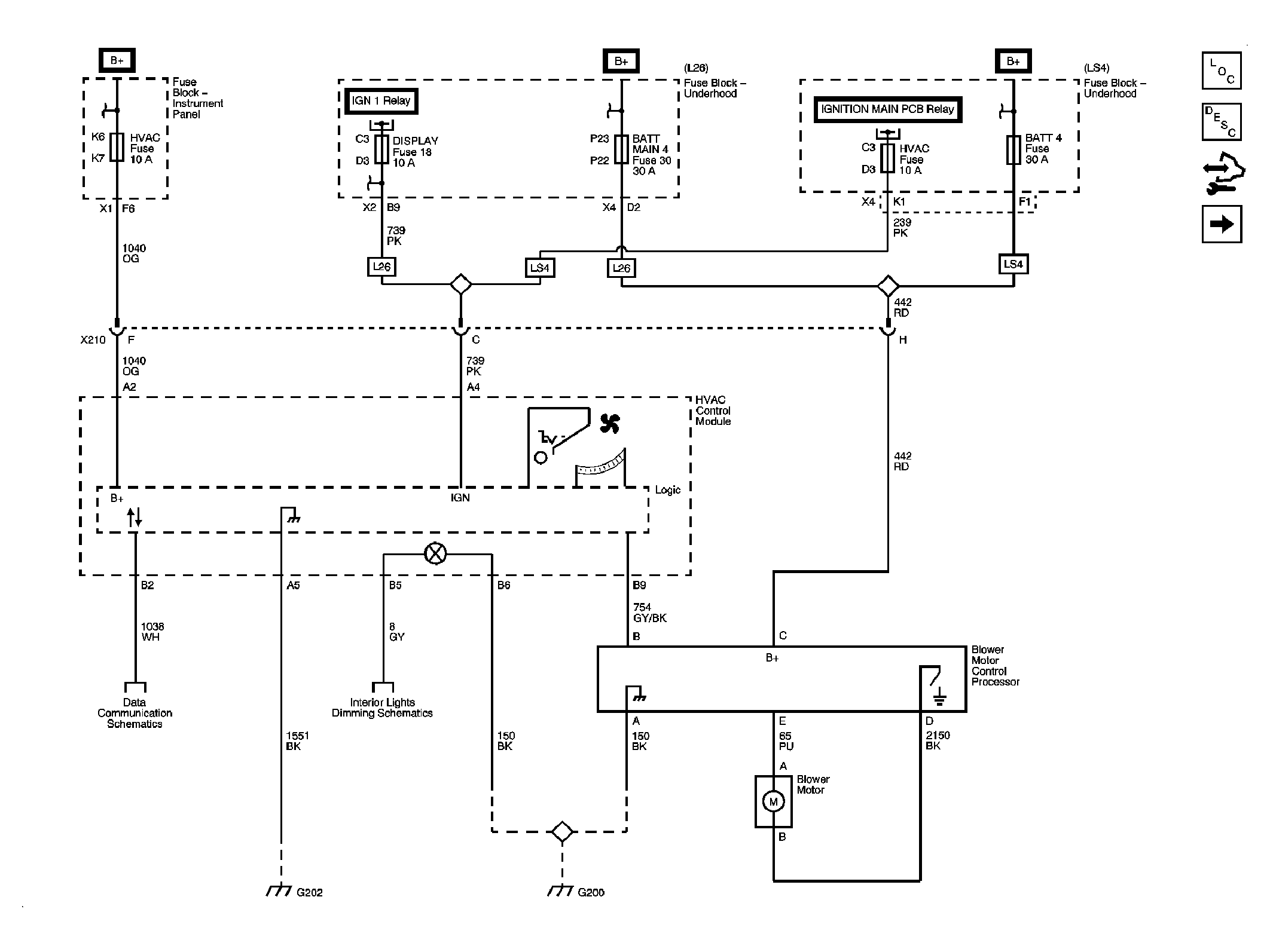

Fig 1: Power, Ground, and Blower Motor Controls
GM1889007Courtesy of GENERAL MOTORS CORP.

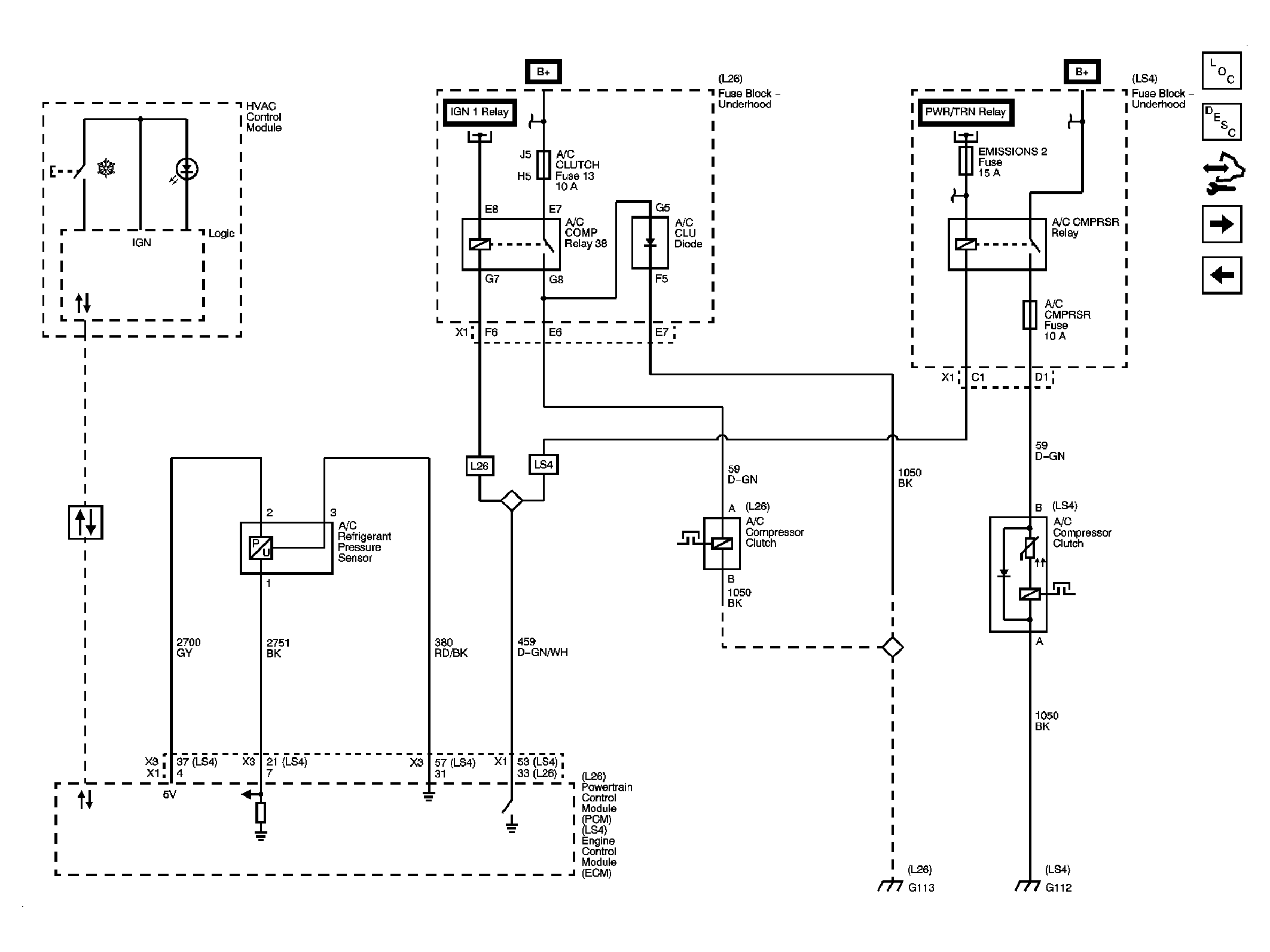

Fig 2: A/C Compressor Controls
GM1889008Courtesy of GENERAL MOTORS CORP.
Fig 3: Mode and Air Temperature Controls
GM1889010Courtesy of GENERAL MOTORS CORP.
