HVAC Schematics

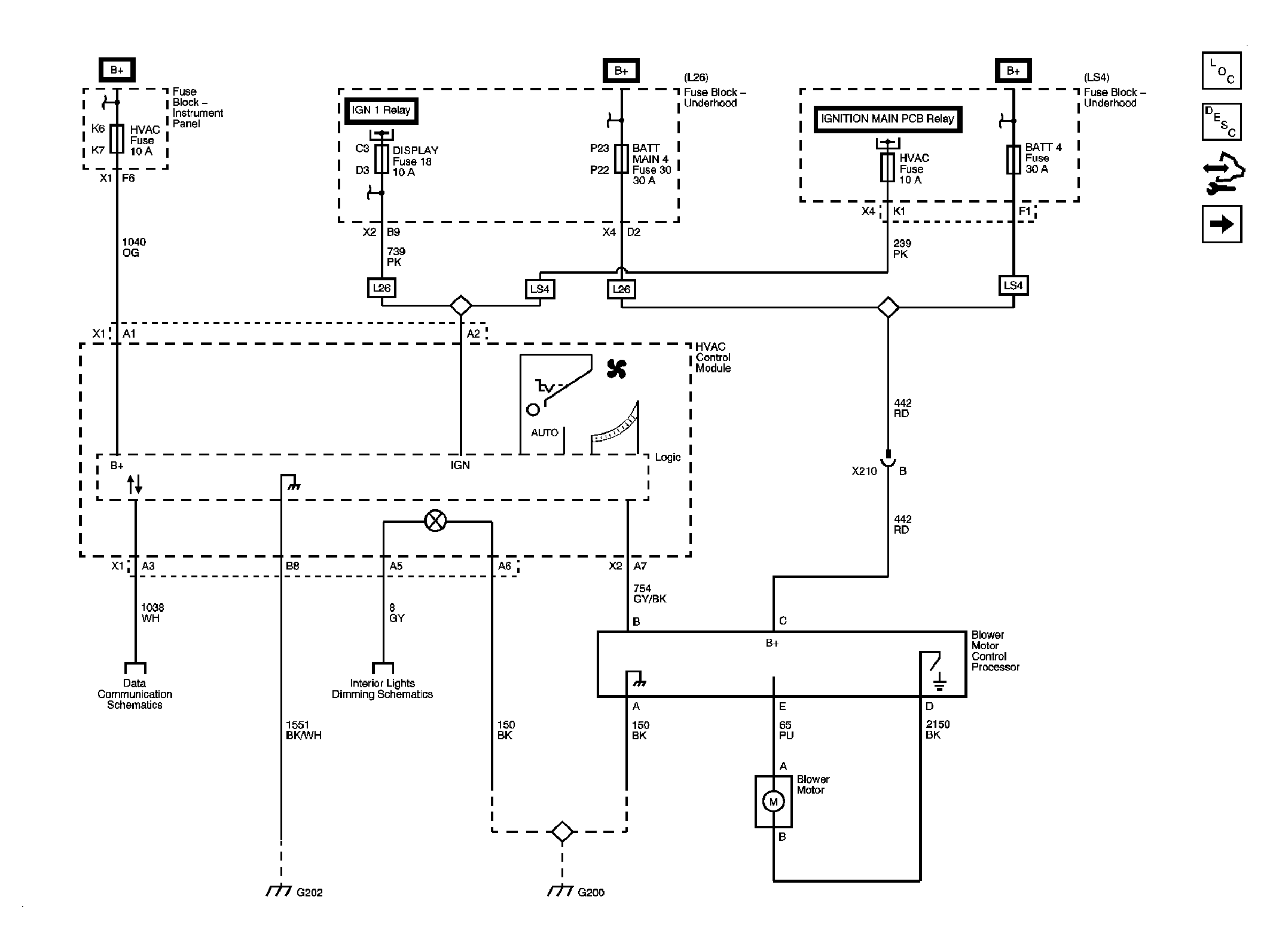

Fig 1: Power, Ground, and Blower Motor Controls - Schematic
GM1889011Courtesy of GENERAL MOTORS CORP.

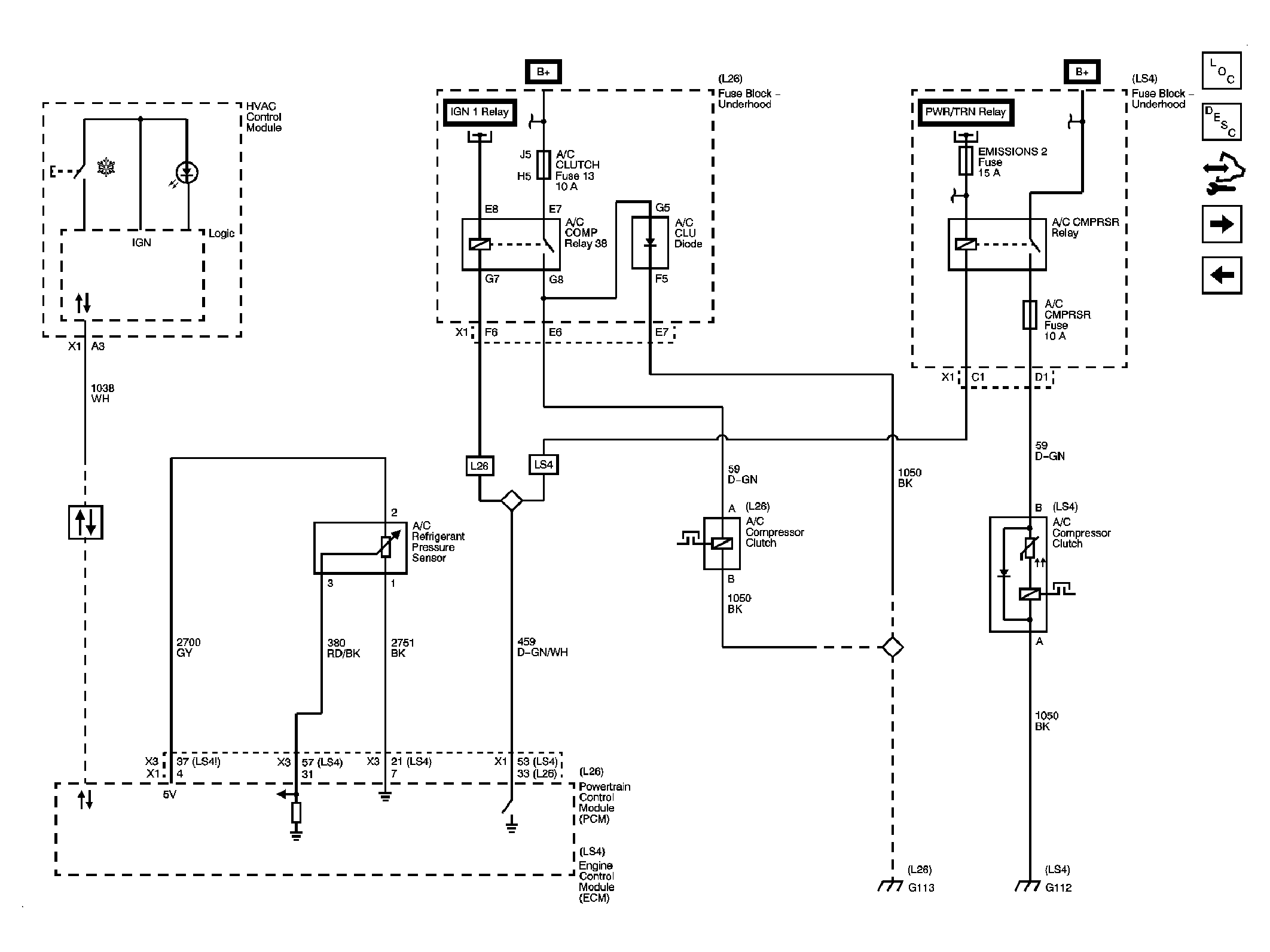

Fig 2: A/C Compressor Controls - Schematic
GM1889012Courtesy of GENERAL MOTORS CORP.

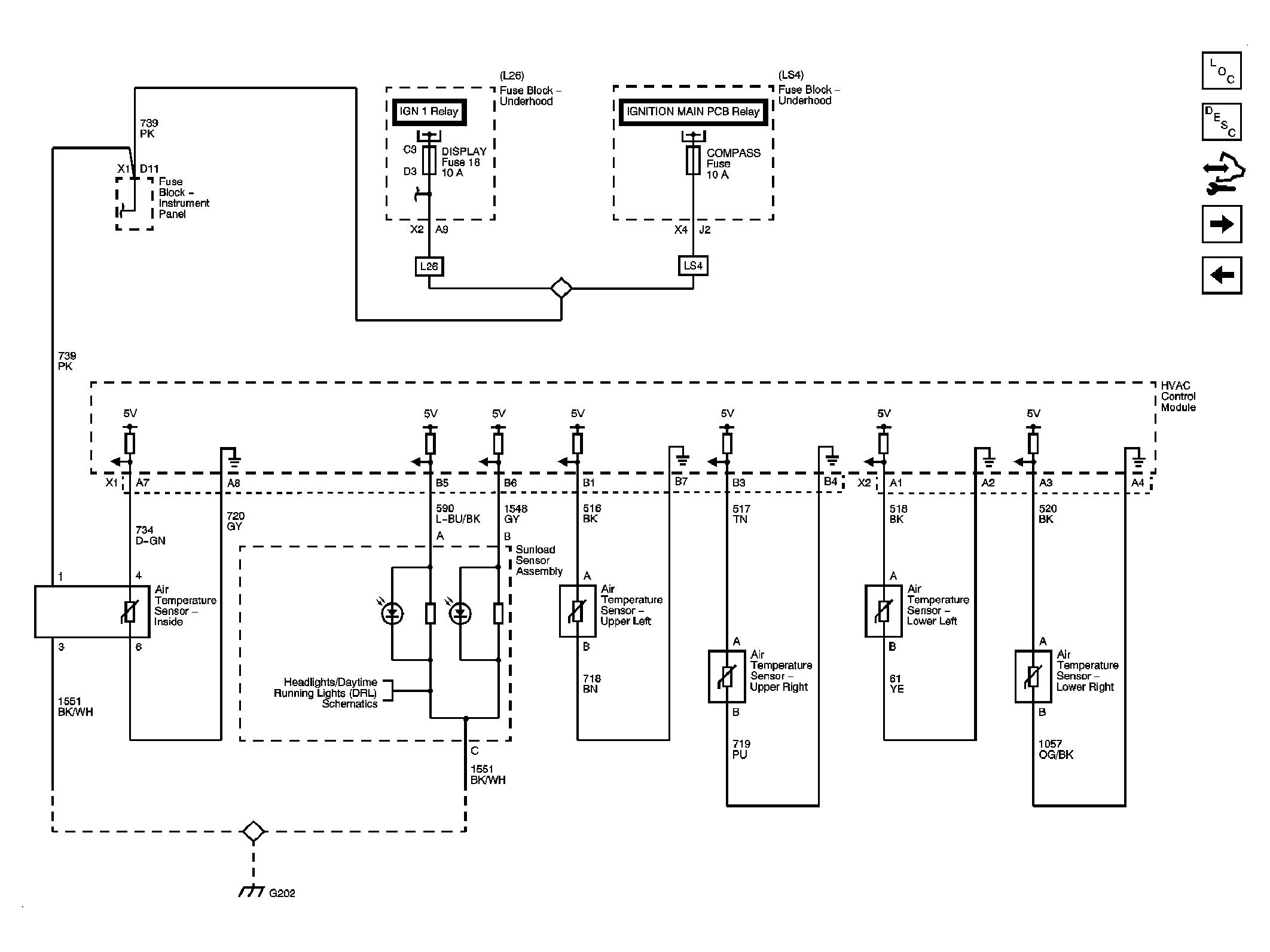

Fig 3: Sensors - Schematic
GM1889014Courtesy of GENERAL MOTORS CORP.

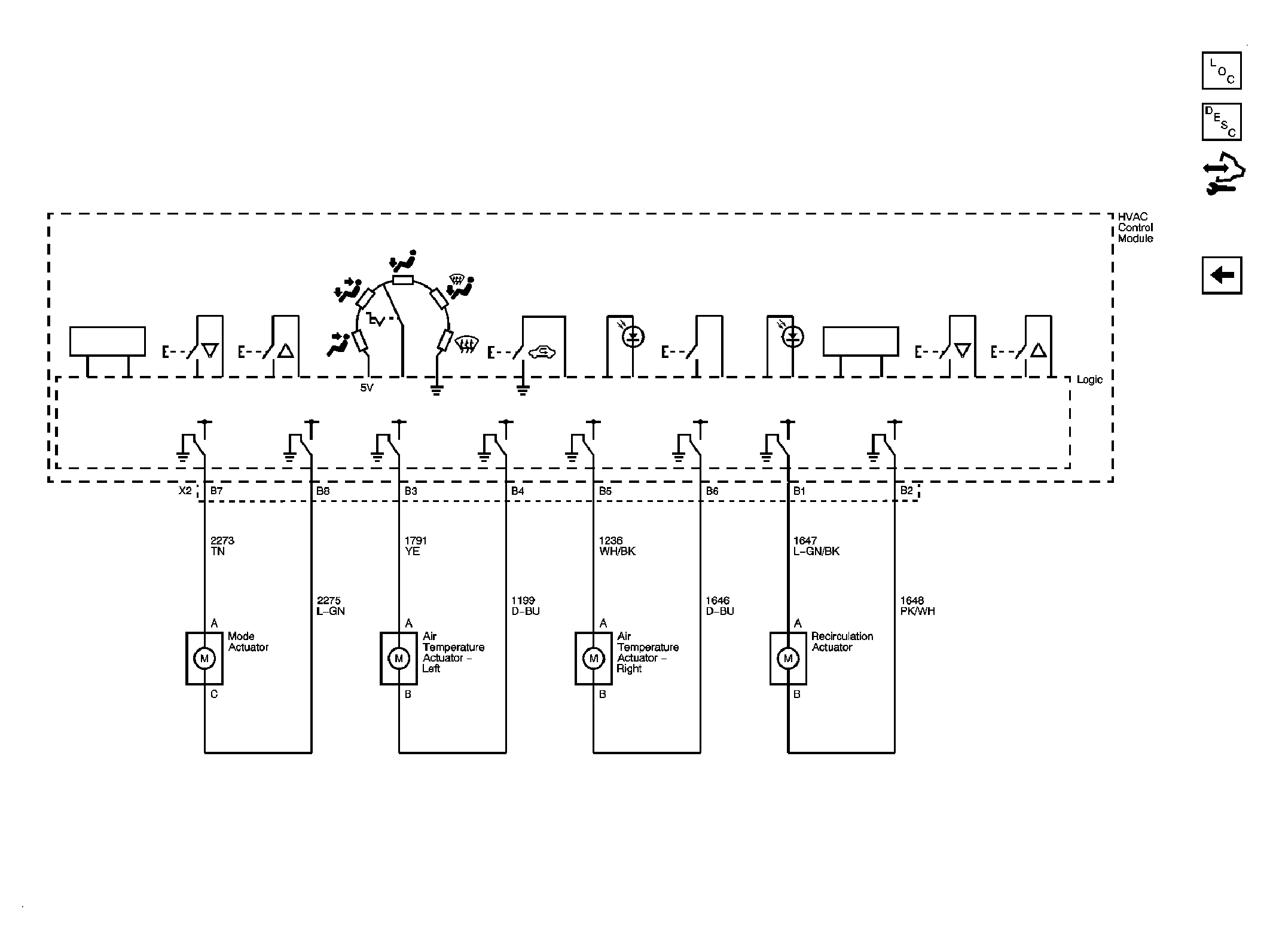

Fig 4: Actuators - Schematic
GM1889015Courtesy of GENERAL MOTORS CORP.
