Tools Required

WARNING: This page is about a different variant/trim than selected.

J 41131  Engine Tilt Strap. See Special Tools .

  1. Remove the air cleaner intake duct. Refer to Air Cleaner Inlet Duct Replacement .
  2. Apply the parking brake.
  3. Put the transaxle in the Neutral position.
  4. Remove the engine mount struts. Refer to Engine Mount Strut Replacement - Right Side  and Engine Mount Strut Replacement - Left Side .

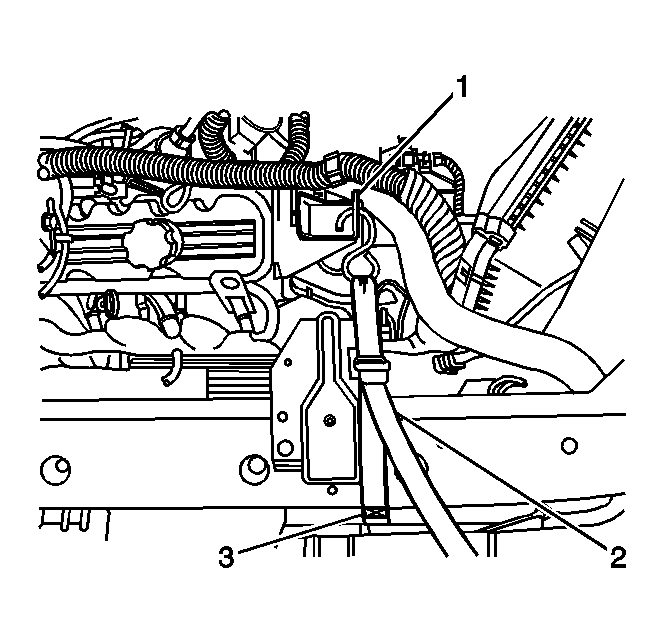

    5. Fig 1: J 41131, Engine Mount Strut Bracket & Upper Radiator Support
    GM849698Courtesy of GENERAL MOTORS CORP.
  5. Install the J 41131  (2) to the engine mount strut bracket (1) and the upper radiator support (3). See Special Tools .
  6. Rotate the engine forward for component access.
