Installation Procedure

WARNING: This page is about a different variant/trim than selected.

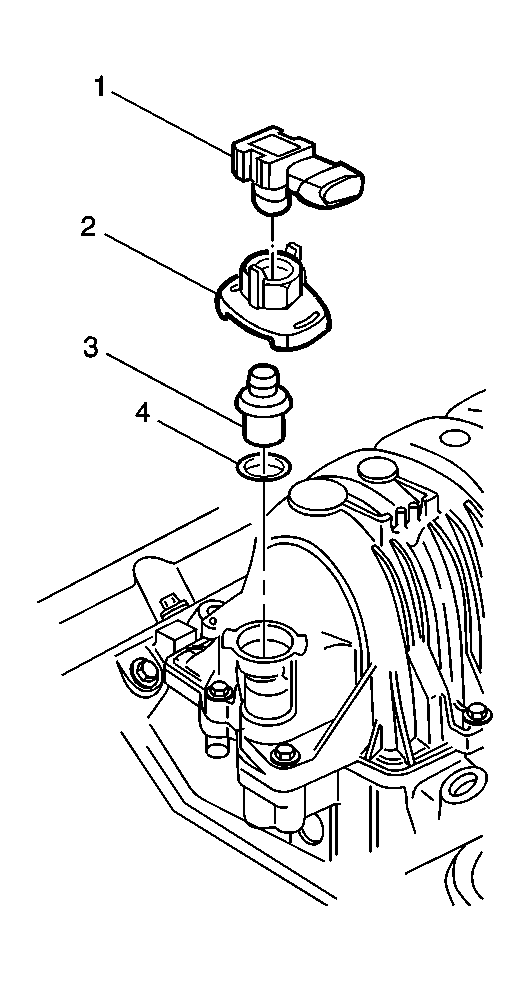

    Fig 1: Identifying PVC Valve & Related Components
    GM12315Courtesy of GENERAL MOTORS CORP.
  1. Install the new O-ring (4) and the PCV valve (3).
  2. Install the access cover (2).
  3. Install the MAP sensor (1).
  4. Connect the MAP sensor electrical connector.
  5. Install the fuel injector sight shield. Refer to Fuel Injector Sight Shield Replacement .
