Removal Procedure

WARNING: This page is about a different variant/trim than selected.

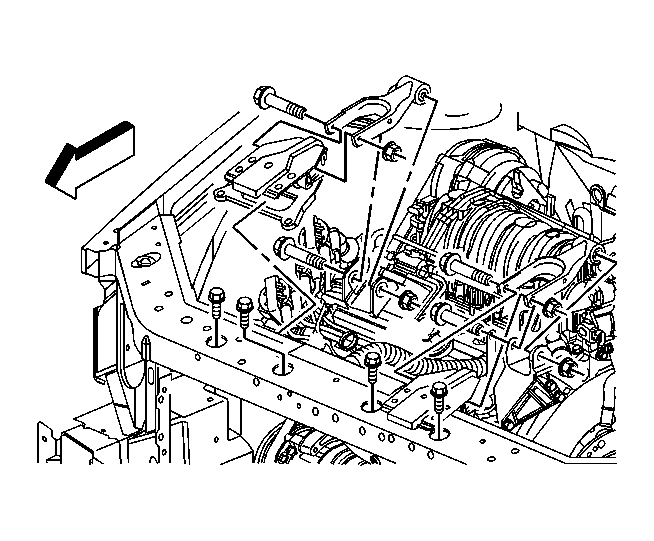

    Fig 1: Right Engine Mount Strut Bolt & Nut (L26)
    GM1210280Courtesy of GENERAL MOTORS CORP.
  1. If equipped with a L26 engine, remove the bolt and the nut from the right engine mount strut at the right engine mount strut bracket on the engine.

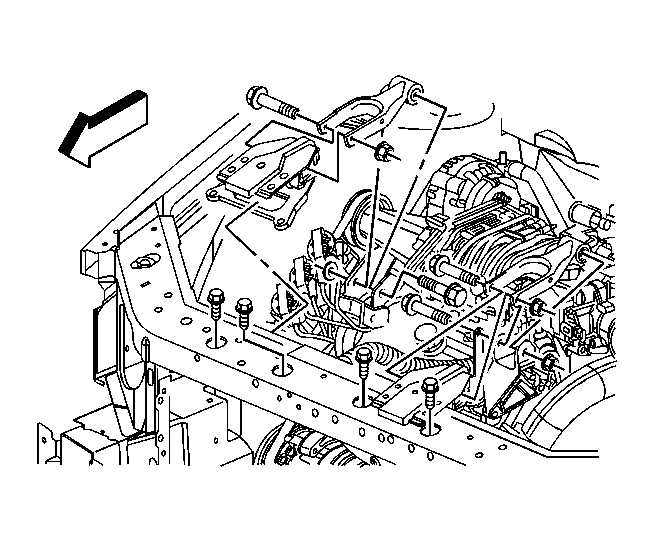

    2. Fig 2: Right Engine Mount Strut Bolt & Nut (L32)
    GM1210282Courtesy of GENERAL MOTORS CORP.
  2. If equipped with a L32 engine, remove the bolt and the nut from the right engine mount strut at the right engine mount strut bracket on the engine.
    3. Fig 3: Identifying Engine Mount Strut
    GM97613Courtesy of GENERAL MOTORS CORP.
  3. Remove the bolt and the nut from the right engine mount strut at the right engine mount strut bracket on the upper radiator support.
  4. Remove the engine mount strut.
  5. Inspect the rubber in the engine mount strut for the following conditions:
    • Hardness
    • Splitting
    • Cracking
