Installation Procedure

WARNING: This page is about a different variant/trim than selected.
    Fig 1: Locating Air Conditioning Compressor Mounting Bolts
    GM277918Courtesy of GENERAL MOTORS CORP.
  1. Position the right engine mount strut bracket over the pin locator.
    2. NOTE: Refer to FASTENER NOTICE .
  2. Install the bolts through the right engine mount strut bracket to the cylinder head.

    Tighten:  Tighten the engine mount strut bracket bolt to 50 N.m (37 lb ft).

  3. Install the air conditioner compressor. Refer to Compressor Replacement (L26) .

    Tighten:  Tighten the air conditioning compressor mounting bolts to 50 N.m (37 lb ft).

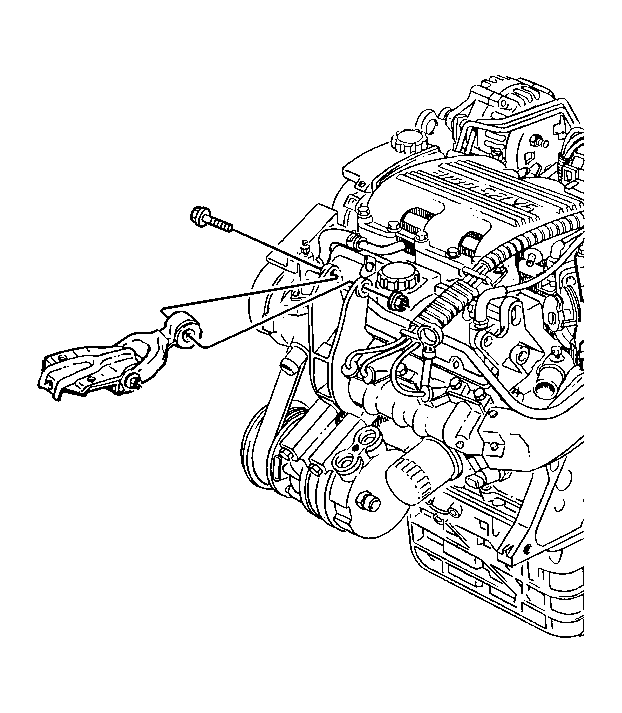

    4. Fig 2: Engine Mount Strut, Bracket & Bolts - Right
    GM96282Courtesy of GENERAL MOTORS CORP.
  4. Install the right engine mount strut to the right engine mount strut bracket.
  5. Connect the battery ground (negative) cable. Refer to Battery Negative Cable Disconnection and Connection (L26) .
