Removal Procedure

WARNING: This page is about a different variant/trim than selected.
    Fig 1: View Of Supercharger Drive Belt
    GM327021Courtesy of GENERAL MOTORS CORP.
  1. Remove the supercharger drive belt. Refer to Drive Belt Replacement .

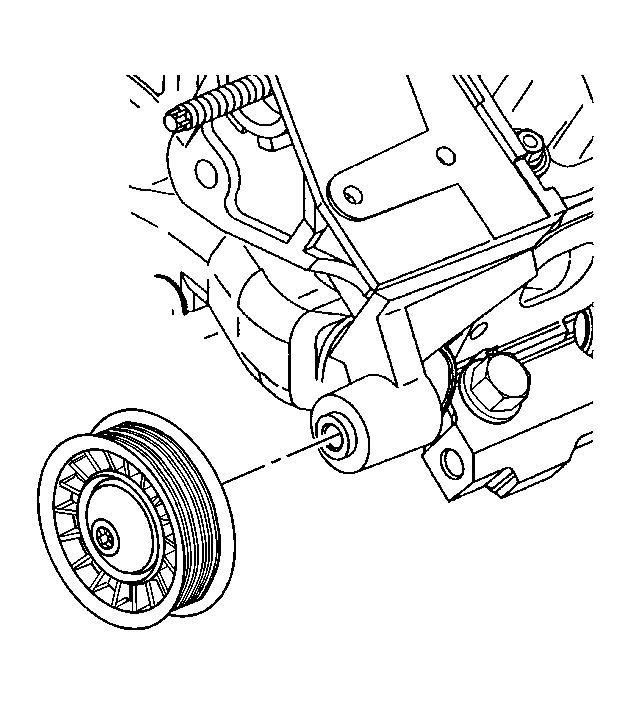

    2. Fig 2: Identifying Drive Belt Idler Pulley - Upper
    GM370453Courtesy of GENERAL MOTORS CORP.
  2. Remove the idler pulley bolt.
  3. Remove the drive belt idler pulley.
