Removal Procedure

WARNING: This page is about a different variant/trim than selected.
  1. Remove the crankshaft balancer. Refer to Crankshaft Balancer Replacement .

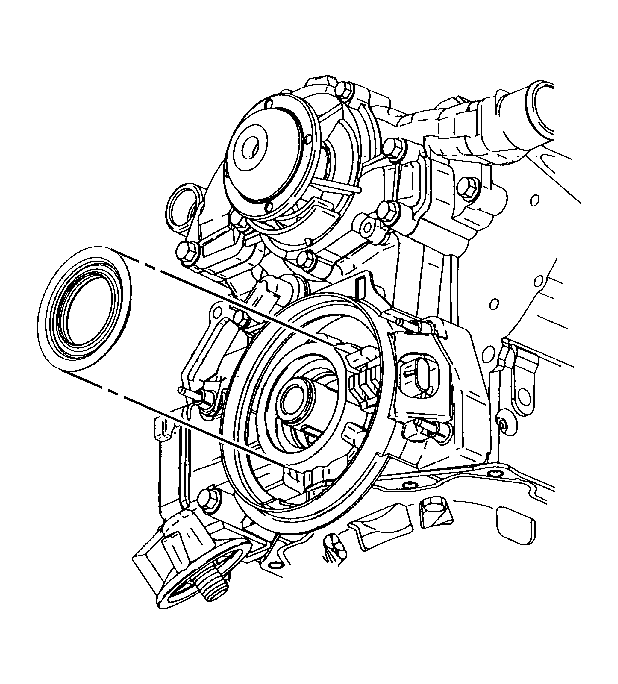

    2. Fig 1: Removing Crankshaft Front Oil Seal
    GM153586Courtesy of GENERAL MOTORS CORP.
    IMPORTANT: Be careful not to damage the crankshaft.
  2. Pry out the crankshaft front oil seal with a flat bladed tool such as a large screwdriver. Use care to avoid damaging the crankshaft front oil seal bore or the crankshaft front oil seal contact surfaces.
  3. Inspect the crankshaft balancer and engine front cover for scratches.
