Installation Procedure

WARNING: This page is about a different variant/trim than selected.

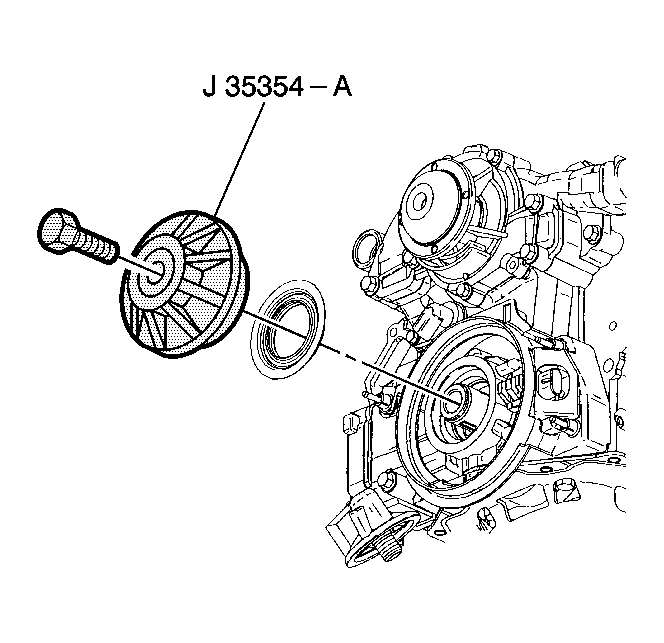

    Fig 1: Installing Crankshaft Front Oil Seal Using J 35354-A
    GM153590Courtesy of GENERAL MOTORS CORP.
  1. Install the crankshaft front oil seal in the engine front cover using the J 35354-A  . See Special Tools .
  2. Tighten the bolt until the crankshaft front oil seal is seated in the engine front cover.
  3. Remove the J 35354-A  . See Special Tools .
  4. Install the crankshaft balancer. Refer to Crankshaft Balancer Replacement .
  5. Inspect for leaks.
  6. Perform the CKP system variation learn procedure. Refer to Crankshaft Position System Variation Learn .
