Water Pump Installation

WARNING: This page is about a different variant/trim than selected.

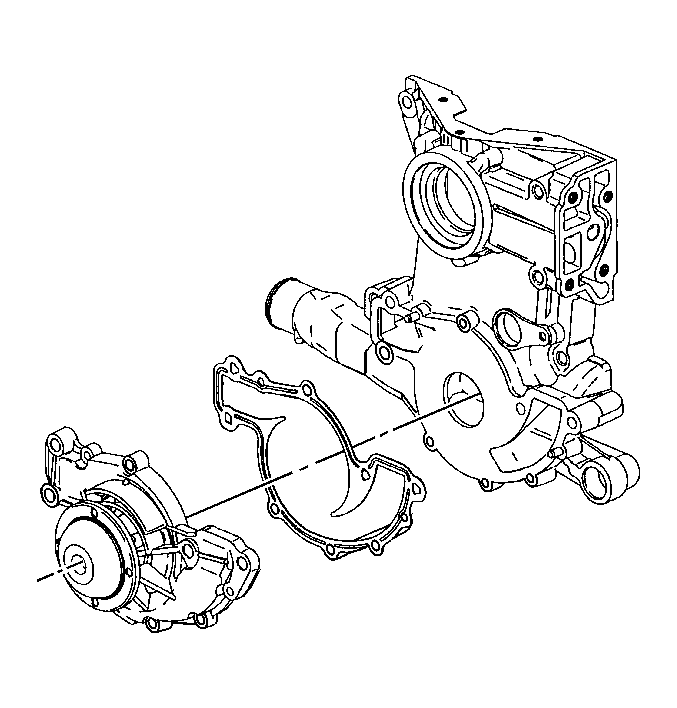

Fig 1: Water Pump & Components

Courtesy of GENERAL MOTORS CORP.

NOTE: Refer to FASTENER NOTICE .

Install the water pump bolts.
Tighten:
- Tighten the small water pump bolts to 22 N.m (16 lb ft).
- Tighten the large water pump bolts to 34 N.m (25 lb ft).

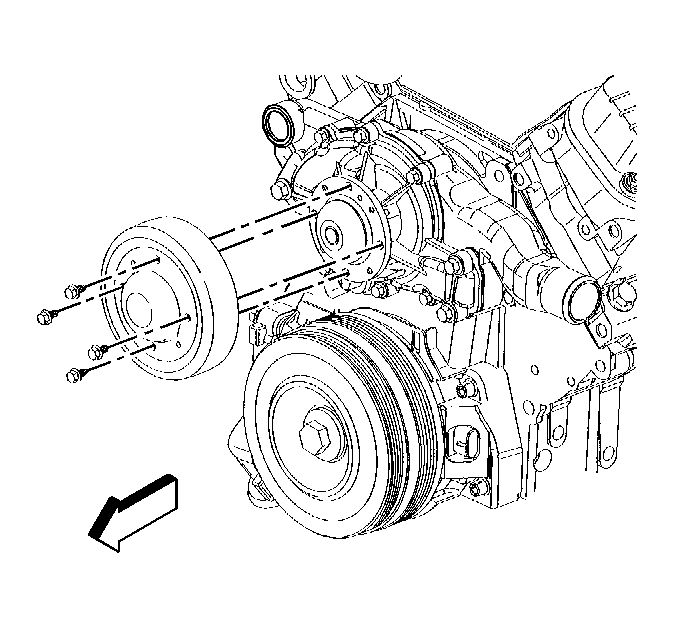

Fig 2: Water Pump Pulley

Courtesy of GENERAL MOTORS CORP.

Install the water pump pulley.
Install the water pump pulley bolts.
Tighten: Tighten the water pump pulley bolts to 13 N.m (116 lb in).
