Water Outlet and Thermostat Installation (L32)

WARNING: This page is about a different variant/trim than selected.

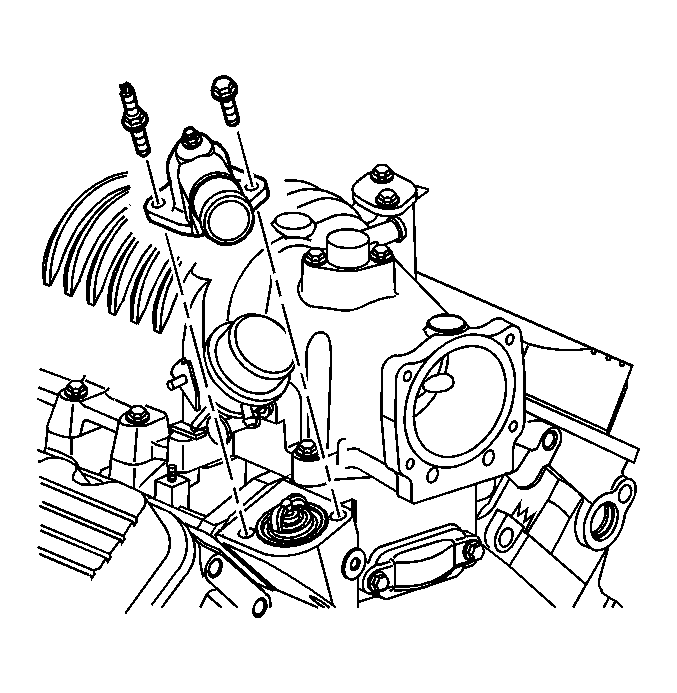

    Fig 1: Thermostat, Water Outlet Bolt & Stud (L32)
    GM1229779Courtesy of GENERAL MOTORS CORP.
  1. Install the thermostat.
  2. Install the water outlet.
    3. NOTE: Refer to FASTENER NOTICE .
  3. Install the water outlet bolt and stud.

    Tighten:  Tighten the water outlet bolt and stud to 27 N.m (20 lb ft).
