Timing Chain and Sprockets Removal (L32)

WARNING: This page is about a different variant/trim than selected.
    Fig 1: Locating Sprocket Timing Alignment Marks
    GM36603Courtesy of GENERAL MOTORS CORP.
  1. Align the timing marks on the sprockets.
    2. Fig 2: View Of Timing Chain Dampener
    GM154523Courtesy of GENERAL MOTORS CORP.
  2. Remove the timing chain dampener.
    3. Fig 3: Timing Chain, Camshaft Sprocket & Crankshaft Sprocket
    GM35816Courtesy of GENERAL MOTORS CORP.
  3. Remove the camshaft sprocket bolt.
  4. Remove the camshaft sprocket.
  5. Remove the timing chain.
  6. Remove the crankshaft sprocket.
  7. Remove the crankshaft balancer key.

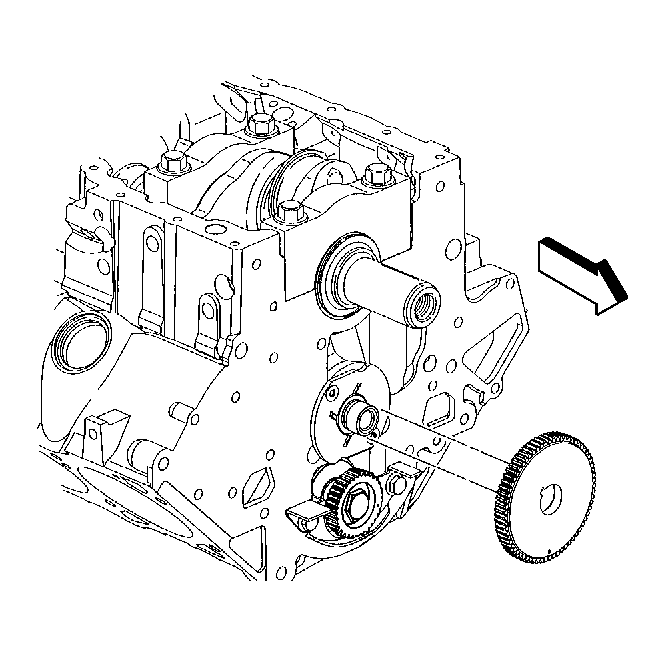

    8. Fig 4: Removing Balance Shaft Drive Gear
    GM154519Courtesy of GENERAL MOTORS CORP.
  8. Remove the balance shaft drive gear.
