Timing Chain and Sprockets Removal (L26)

WARNING: This page is about a different variant/trim than selected.
    Fig 1: Aligning Timing Chain & Sprocket Timing Marks
    GM192708Courtesy of GENERAL MOTORS CORP.
  1. Align the timing marks on the sprockets.
    2. Fig 2: View Of Timing Chain Dampener
    GM154523Courtesy of GENERAL MOTORS CORP.
  2. Remove the timing chain dampener.

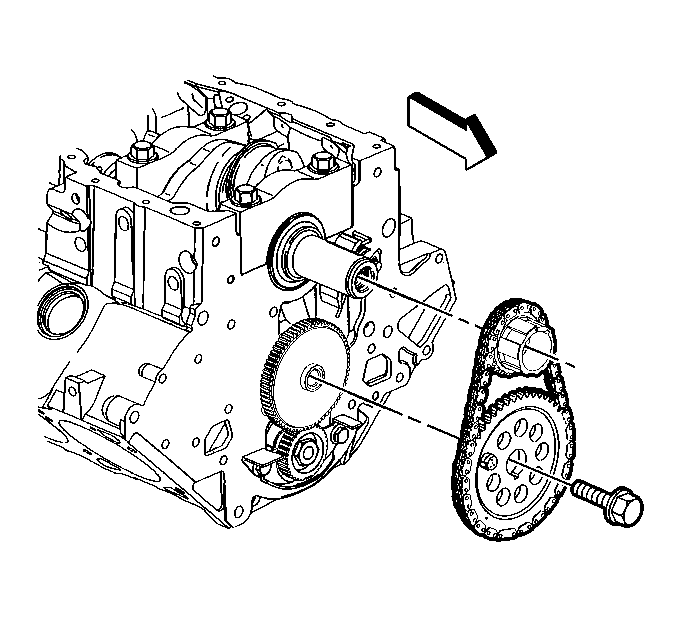

    3. Fig 3: Timing Chain, Crankshaft Sprocket & Camshaft Sprocket (L26)
    GM192716Courtesy of GENERAL MOTORS CORP.
  3. Remove the camshaft sprocket bolt.
  4. Remove the camshaft sprocket.
  5. Remove the timing chain.
  6. Remove the crankshaft sprocket.
  7. Remove the crankshaft balancer key.
    8. Fig 4: Removing Balance Shaft Drive Gear
    GM154519Courtesy of GENERAL MOTORS CORP.
  8. Remove the balance shaft drive gear.
