Exhaust Manifold Removal - Left Side

WARNING: This page is about a different variant/trim than selected.

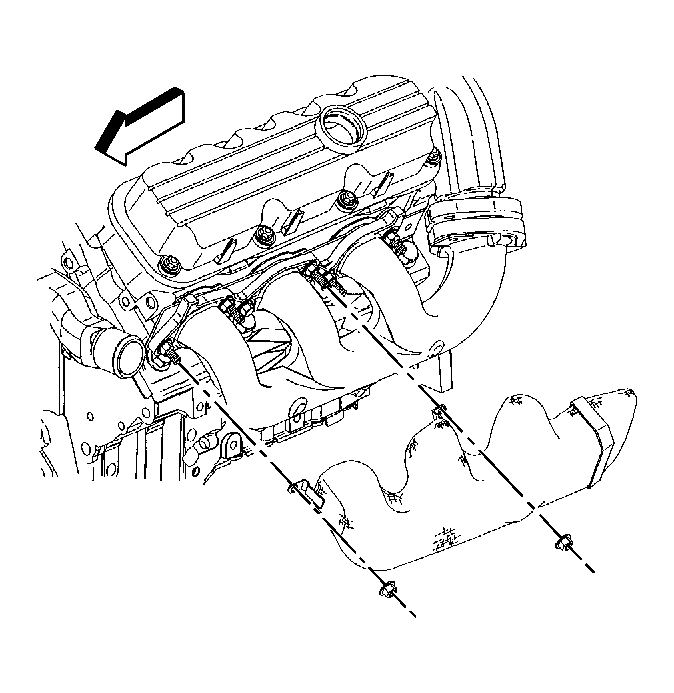

    Fig 1: Exhaust Manifold Heat Shield & Nuts
    GM154529Courtesy of GENERAL MOTORS CORP.
  1. Remove the exhaust manifold heat shield nuts.
  2. Remove the exhaust manifold heat shield.

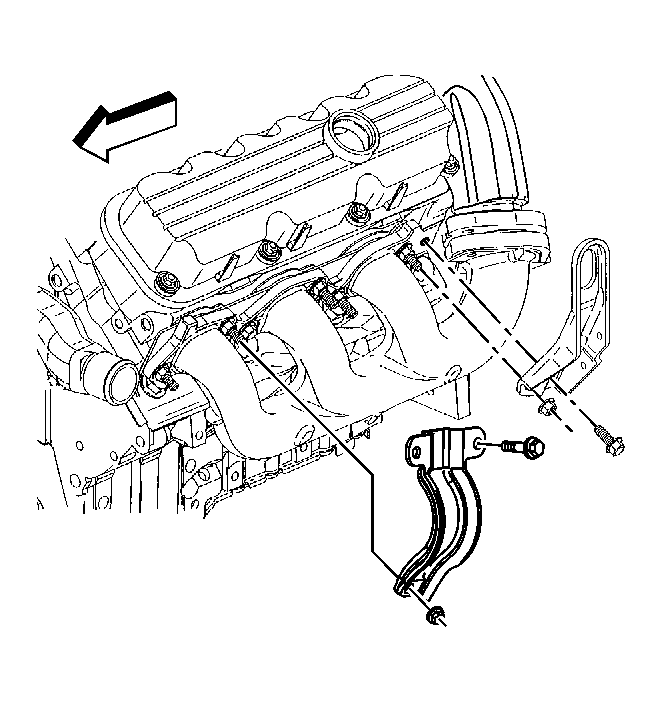

    3. Fig 2: Left Engine Lift Hook & Mount Strut Lower Bracket
    GM1210603Courtesy of GENERAL MOTORS CORP.
  3. Remove the left engine lift hook nut and bolt.
  4. Remove the left engine lift hook.
  5. Remove the engine mount strut lower bracket nut and bolts.
  6. Remove the engine mount strut lower bracket.
  7. Remove the left side spark plugs.

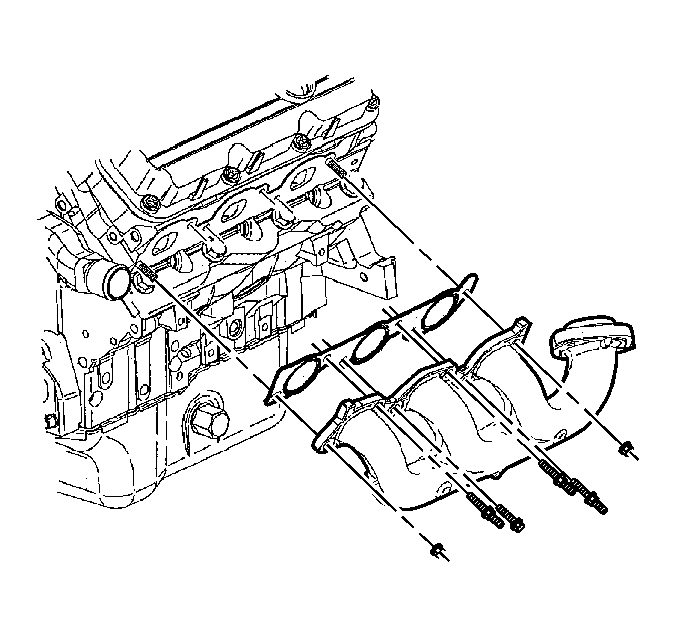

    8. Fig 3: Identifying Left Exhaust Manifold
    GM683911Courtesy of GENERAL MOTORS CORP.
  8. Remove the exhaust manifold bolt and studs.
  9. Remove the exhaust manifold.
  10. Remove the exhaust manifold gasket.

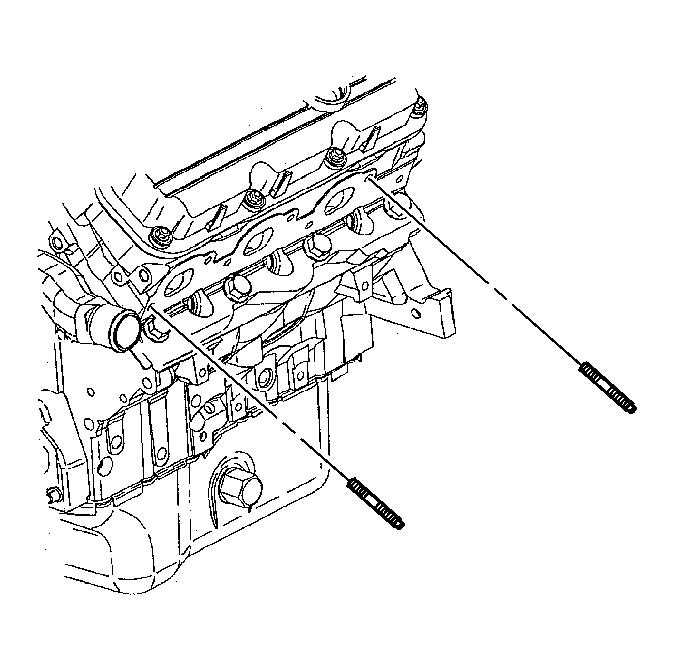

    11. Fig 4: Left Exhaust Manifold Studs
    GM683917Courtesy of GENERAL MOTORS CORP.
  11. Remove the exhaust manifold studs.
